Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

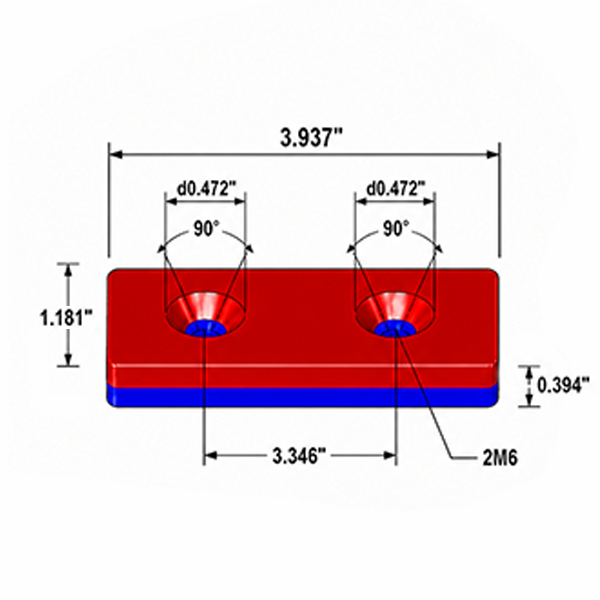

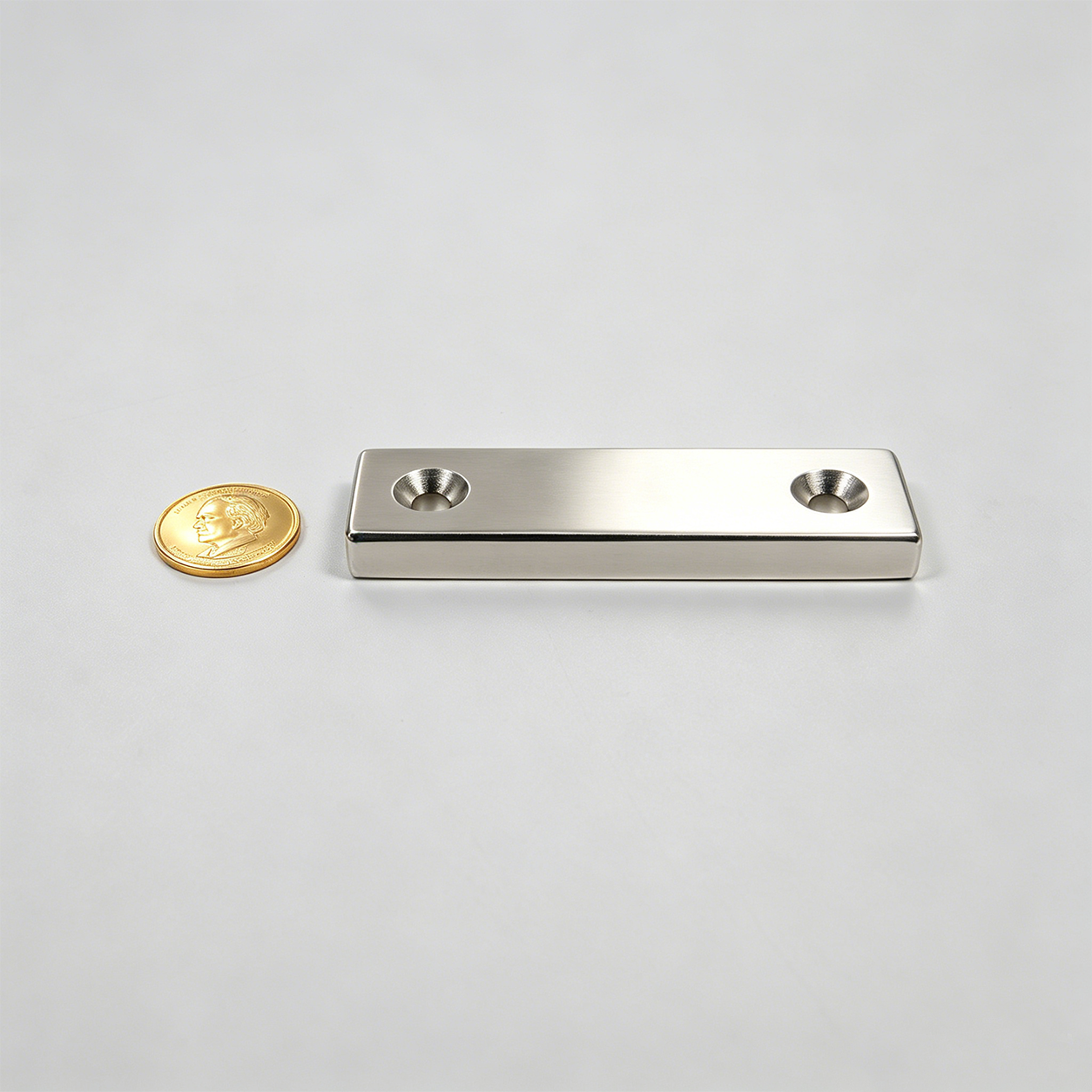

Countersunk Magnet 3.937″×1.181″×0.394″-2M6

Technical Data

Material:NdFeB
Length:3.937 inch (100.0 mm)
Width:1.181 inch (30.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 6.47 oz (183.5 g)
Pull Force:approx. 44.09 lb (20 kgf)
Surface Gauss:approx. 1800 Gs
Max Operating Temp:176 F / 80℃

$12.000

each

20000 in stock

Quantity Price
1 - 49 $12.000
50 - 100 $12.000
101 - 200 $9.000
201 - 500 $7.000
501 - 1,000 $4.500
1,001+ $4.500

Countersunk Magnet 3.937″×1.181″×0.394″-2M6

Technical Data

Material:NdFeB
Length:3.937 Inch
Width:1.181 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.12 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 183.5 g
Power:approx 20 Kg
Surface Gauss:approx 1800 Gs
Max Operating Temp:176 F / 80℃

$12.000

each

20000 in stock

Quantity Price
1 - 49 $12.000
50 - 100 $12.000
101 - 200 $9.000
201 - 500 $7.000
501 - 1,000 $4.500
1,001+ $4.500
