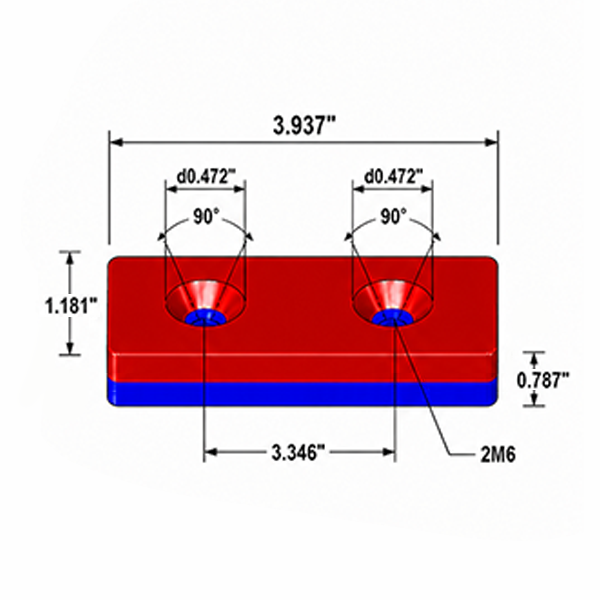

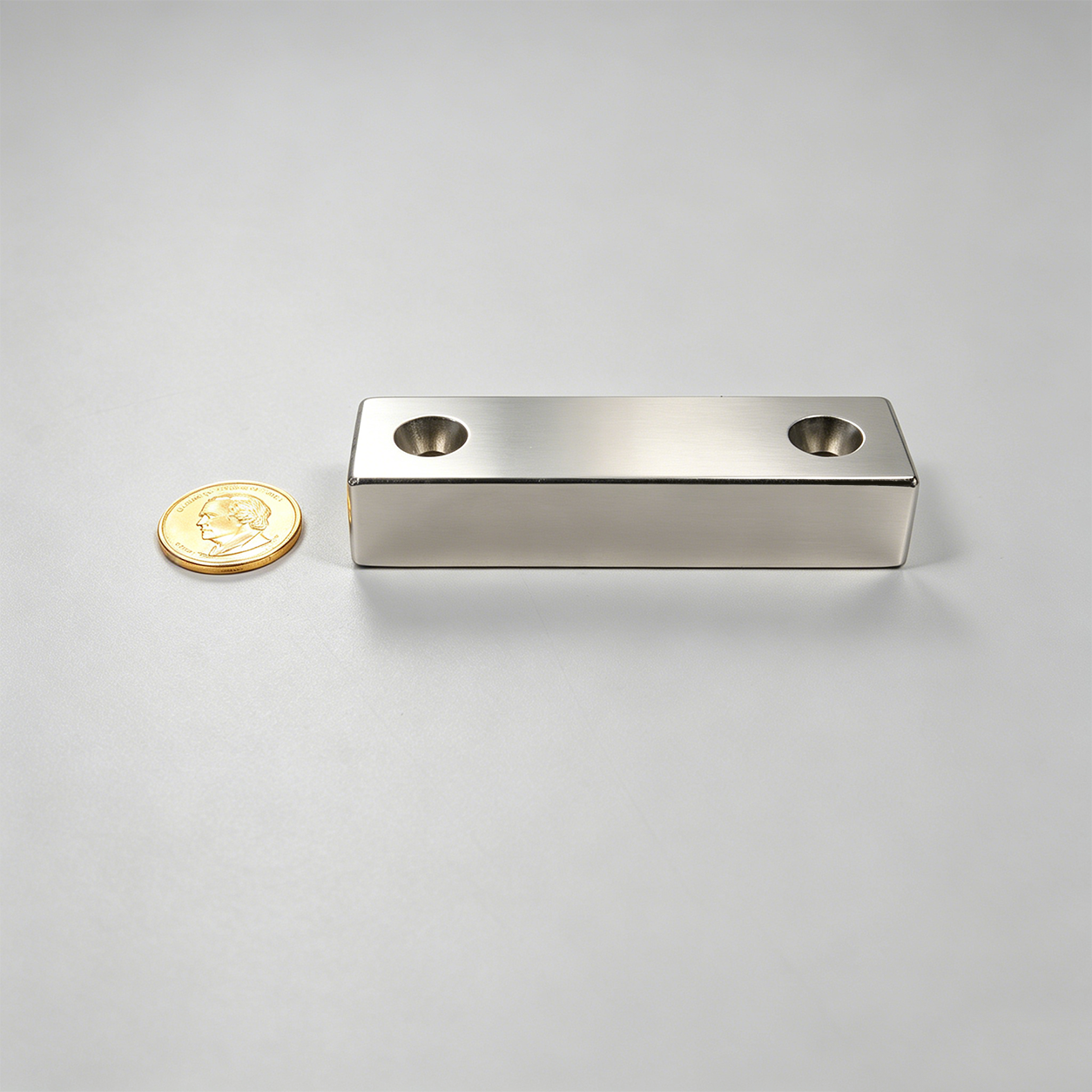

Countersunk Magnet 3.937″×1.181″×0.787″-2M6

Technical Data

Material:NdFeB
Length:3.937 inch (100.0 mm)
Width:1.181 inch (30.0 mm)
Thickness:0.787 inch (20.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 10.58 oz (300 g)
Pull Force:approx. 44.09 lb (20 kgf)
Surface Gauss:approx. 2270 Gs
Max Operating Temp:176 F / 80℃

$40.000

each

20000 in stock

Quantity Price
1 - 19 $40.000
20 - 50 $40.000
51 - 100 $25.000
101 - 200 $18.000
201 - 500 $12.000
501+ $12.000

Countersunk Magnet 3.937″×1.181″×0.787″-2M6

Technical Data

Material:NdFeB
Length:3.937 Inch
Width:1.181 Inch
Thickness:0.787 Inch
Tolerance:+/- 0.12 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 300 g
Power:approx 20 Kg
Surface Gauss:approx 2270 Gs
Max Operating Temp:176 F / 80℃

$40.000

each

20000 in stock

Quantity Price
1 - 19 $40.000
20 - 50 $40.000
51 - 100 $25.000
101 - 200 $18.000
201 - 500 $12.000
501+ $12.000
