Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

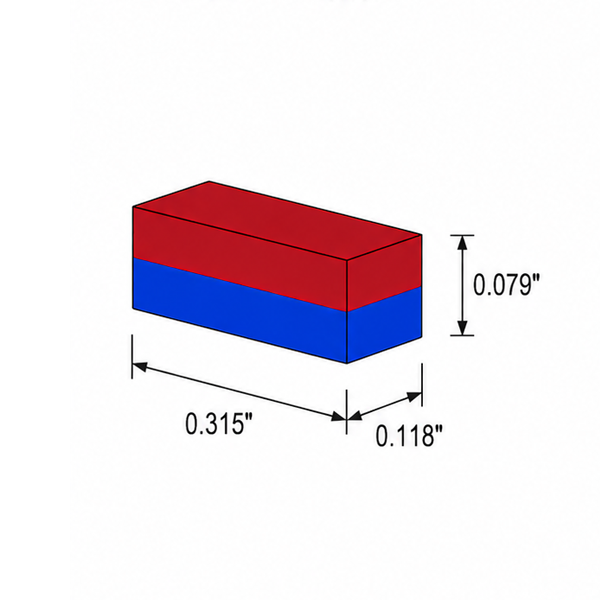

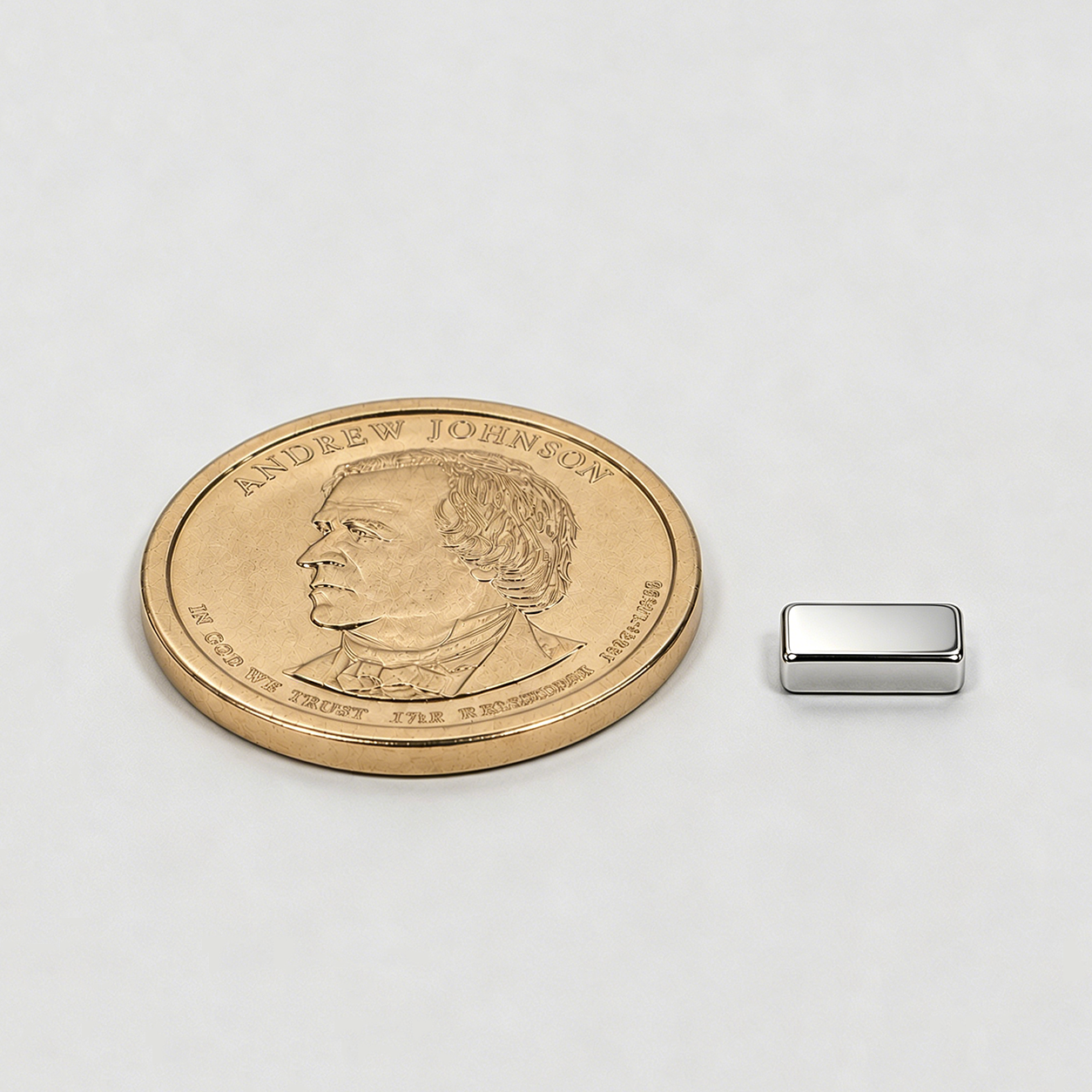

NdFeB Block Magnet 0.315”×0.118“×0.079”

Technical Data

Material:NdFeB
Length:0.315 inch (8.0 mm)
Width:0.118 inch (3.0 mm)
Thickness:0.079 inch (2.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.0035 oz (0.1 g)
Pull Force:approx. 0.62 lb (0.28 kgf)
Surface Gauss:approx. 1650 Gs
Max Operating Temp:176 F / 80℃

$0.187

each

20000 in stock

Quantity Price
1 - 99 $0.187
100 - 200 $0.187
201 - 500 $0.180
501 - 1,000 $0.172
1,001 - 2,000 $0.165
2,001+ $0.165

NdFeB Block Magnet 0.315”×0.118“×0.079”

Technical Data

Material:NdFeB
Length:0.315 Inch
Width:0.118 Inch
Thickness:0.079 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 0.1 g
Power:approx 0.28 Kg
Surface Gauss:approx 1650 Gs
Max Operating Temp:176 F / 80℃

$0.187

each

20000 in stock

Quantity Price
1 - 99 $0.187
100 - 200 $0.187
201 - 500 $0.180
501 - 1,000 $0.172
1,001 - 2,000 $0.165
2,001+ $0.165
