Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

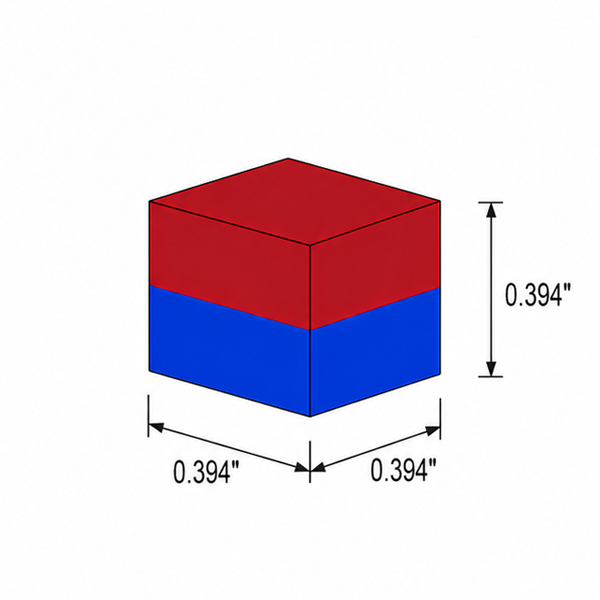

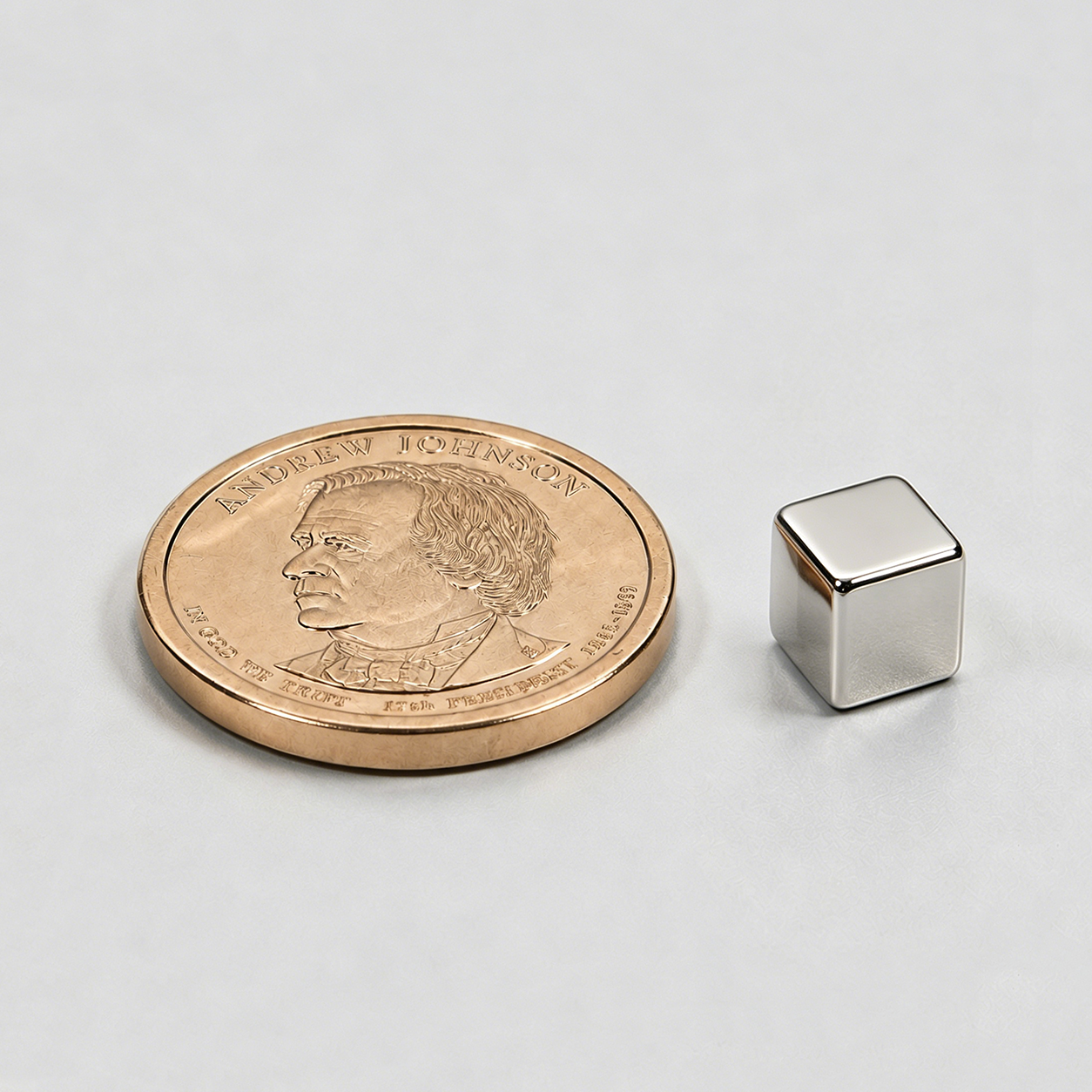

NdFeB Block Magnet 0.394“×0.394”×0.394“

Technical Data

Material:NdFeB
Length:0.394 inch (10.0 mm)
Width:0.394 inch (10.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.212 oz (6 g)
Pull Force:approx. 3.53 lb (1.6 kgf)
Surface Gauss:approx. 3200 Gs
Max Operating Temp:176 F / 80℃

$2.160

each

20000 in stock

Quantity Price
1 - 99 $2.160
100 - 200 $2.160
201 - 500 $2.040
501 - 1,000 $1.920
1,001 - 2,000 $1.800
2,001+ $1.800

NdFeB Block Magnet 0.394“×0.394”×0.394“

Technical Data

Material:NdFeB
Length:0.394 Inch
Width:0.394 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.04 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 6 g
Power:approx 1.6 Kg
Surface Gauss:approx 3200 Gs
Max Operating Temp:176 F / 80℃

$2.160

each

20000 in stock

Quantity Price
1 - 99 $2.160
100 - 200 $2.160
201 - 500 $2.040
501 - 1,000 $1.920
1,001 - 2,000 $1.800
2,001+ $1.800
