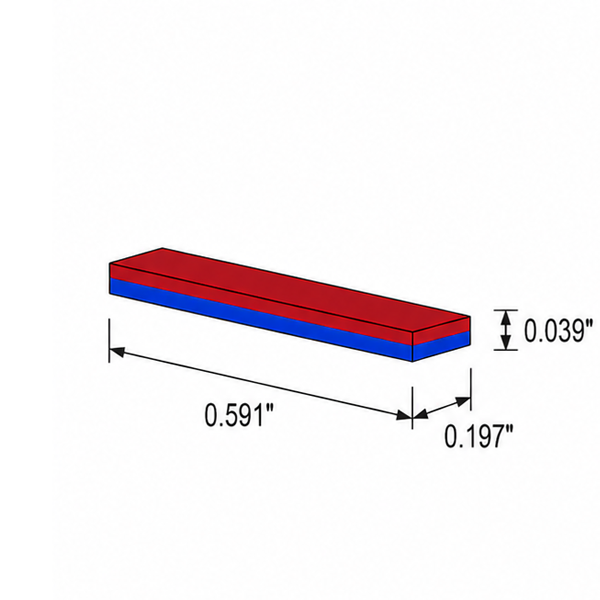

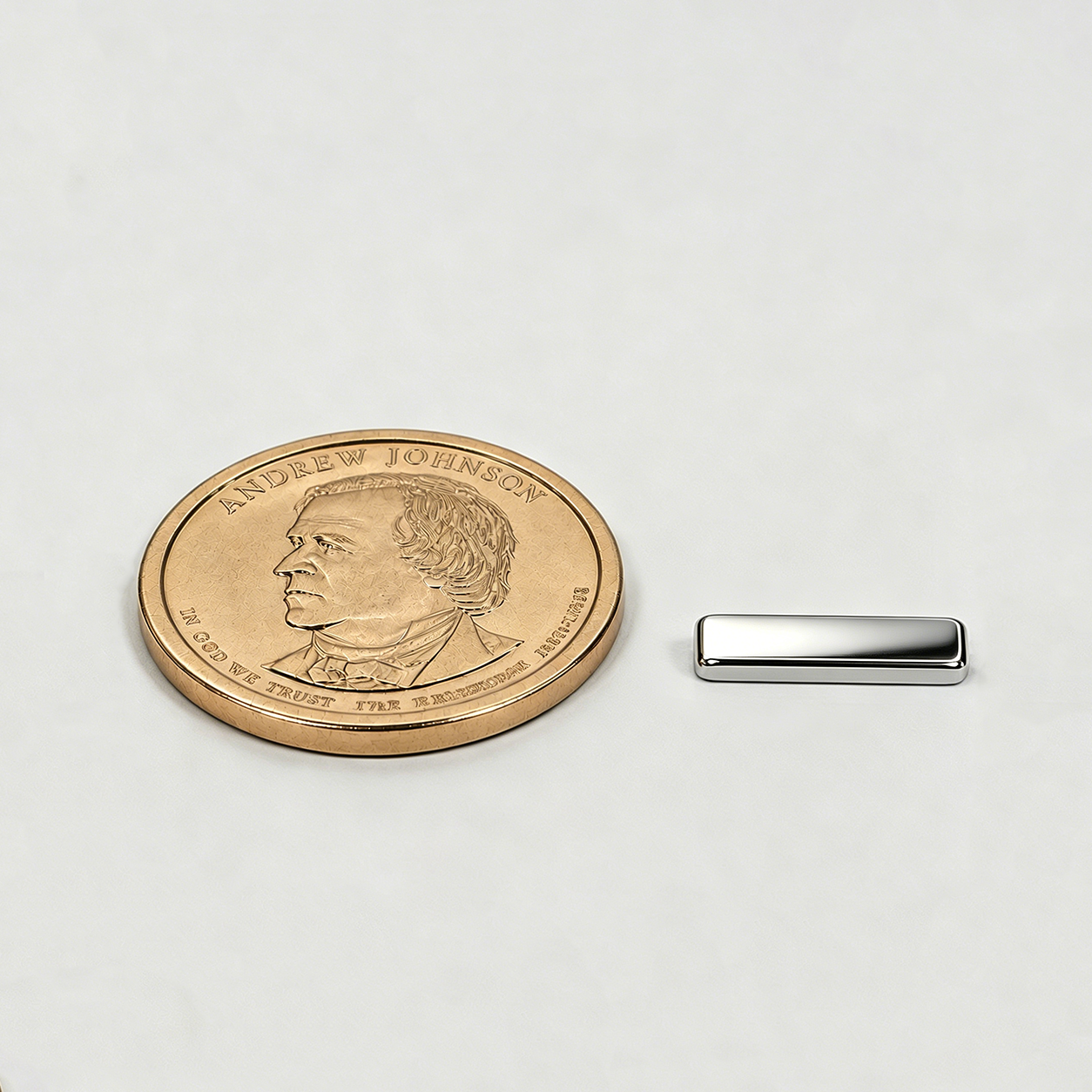

NdFeB Block Magnet 0.591”×0.197“×0.039”

Technical Data

Material:NdFeB
Length:0.591 inch (15.0 mm)
Width:0.197 inch (5.0 mm)
Thickness:0.039 inch (1.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.014 oz (0.4 g)
Pull Force:approx. 1.54 lb (0.7 kgf)
Surface Gauss:approx. 500 Gs
Max Operating Temp:176 F / 80℃

$0.416

each

20000 in stock

Quantity Price
1 - 99 $0.416
100 - 200 $0.416
201 - 500 $0.399
501 - 1,000 $0.382
1,001 - 2,000 $0.366
2,001+ $0.366

NdFeB Block Magnet 0.591”×0.197“×0.039”

Technical Data

Material:NdFeB
Length:0.591 Inch
Width:0.197 Inch
Thickness:0.039 Inch
Tolerance:+/- 0.04 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 0.4 g
Power:approx 0.7 Kg
Surface Gauss:approx 500 Gs
Max Operating Temp:176 F / 80℃

$0.416

each

20000 in stock

Quantity Price
1 - 99 $0.416
100 - 200 $0.416
201 - 500 $0.399
501 - 1,000 $0.382
1,001 - 2,000 $0.366
2,001+ $0.366
