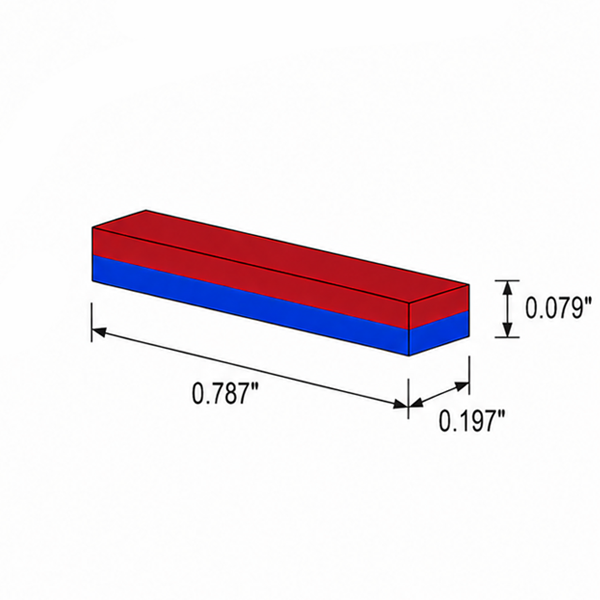

NdFeB Block Magnet 0.787“×0.197”×0.079“

Technical Data

Material:NdFeB
Length:0.787 inch (20.0 mm)
Width:0.197 inch (5.0 mm)
Thickness:0.079 inch (2.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.039 oz (1.1 g)
Pull Force:approx. 1.32 lb (0.6 kgf)
Surface Gauss:approx. 900 Gs
Max Operating Temp:176 F / 80℃

$0.630

each

20000 in stock

Quantity Price
1 - 99 $0.630
100 - 200 $0.630
201 - 500 $0.589
501 - 1,000 $0.520
1,001 - 2,000 $0.493
2,001+ $0.493

NdFeB Block Magnet 0.787“×0.197”×0.079“

Technical Data

Material:NdFeB
Length:0.787 Inch
Width:0.197 Inch
Thickness:0.079 Inch
Tolerance:+/- 0.04 Inch
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 1.1 g
Power:approx 0.6 Kg
Surface Gauss:approx 900 Gs
Max Operating Temp:176 F / 80℃

$0.630

each

20000 in stock

Quantity Price
1 - 99 $0.630
100 - 200 $0.630
201 - 500 $0.589
501 - 1,000 $0.520
1,001 - 2,000 $0.493
2,001+ $0.493
