Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

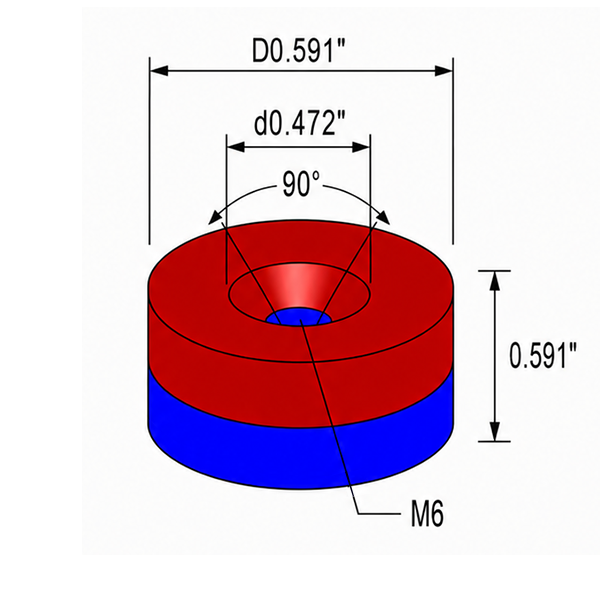

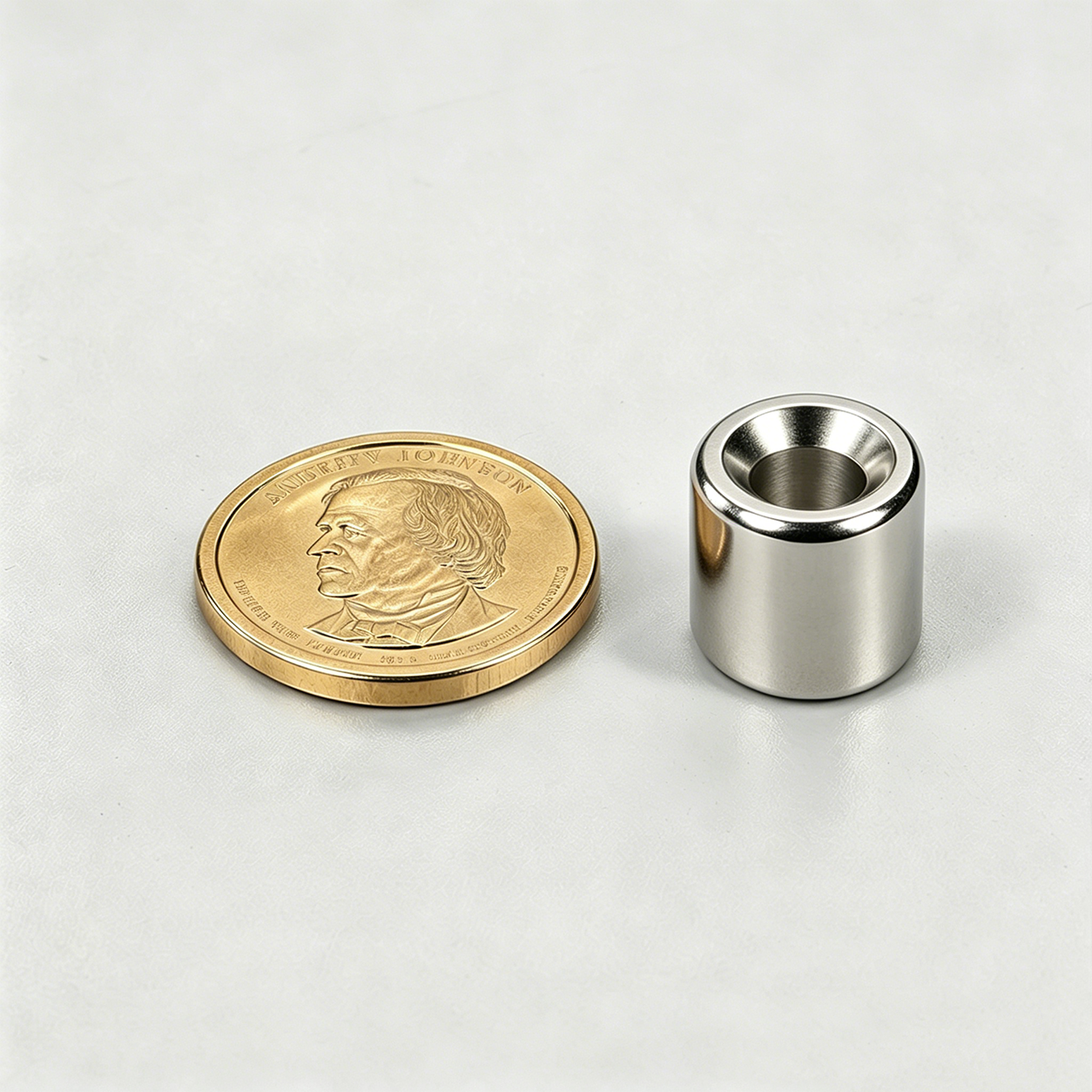

Countersunk Magnet 0.591″×0.591″-M6

Technical Data

Material:NdFeB
Diameter:0.591 inch (15.0 mm)
Thickness:0.591 inch (15.0 mm)
Tolerance:+/- 0.04 inch (+/- 1.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.6 oz (17 g)
Pull Force:approx. 6.61 lb (3 kgf)
Surface Gauss:approx. 3700 Gs
Max Operating Temp:176 F / 80℃

$1.000

each

20000 in stock

Quantity Price
1 - 99 $1.000
100 - 200 $1.000
201 - 500 $0.800
501 - 1,000 $0.650
1,001 - 2,000 $0.500
2,001+ $0.500

Countersunk Magnet 0.591″×0.591″-M6

Technical Data

Material:NdFeB
Diameter:0.591 Inch
Thickness:0.591 Inch
Tolerance:+/- 0.04 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 17 g
Power:approx 3 Kg
Surface Gauss:approx 3700 Gs
Max Operating Temp:176 F / 80℃

$1.000

each

20000 in stock

Quantity Price
1 - 99 $1.000
100 - 200 $1.000
201 - 500 $0.800
501 - 1,000 $0.650
1,001 - 2,000 $0.500
2,001+ $0.500
