Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

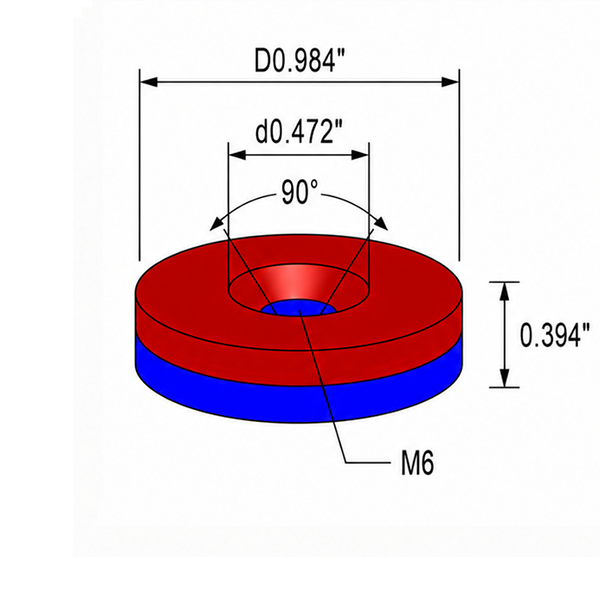

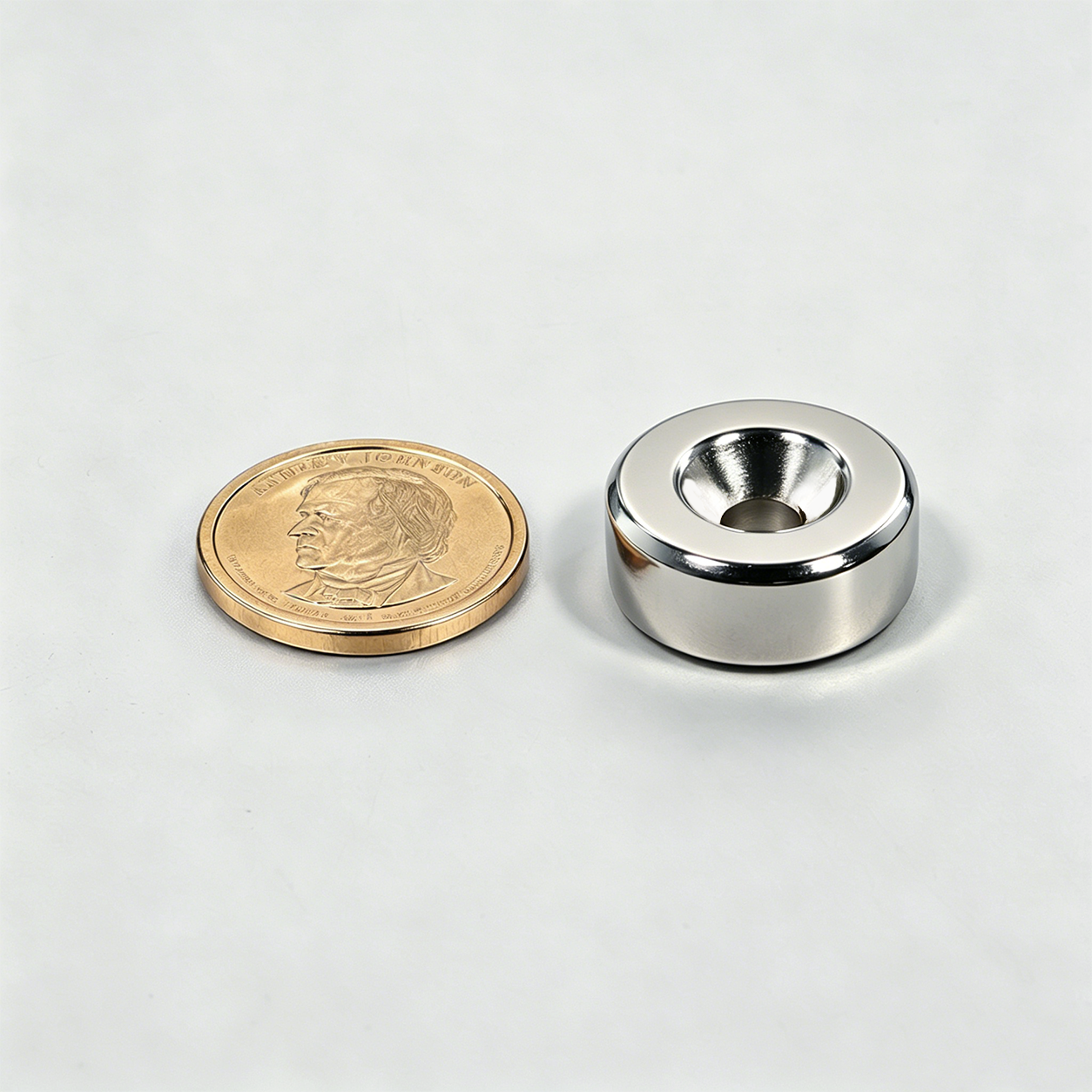

Countersunk Magnet 0.984″×0.394″-M6

Technical Data

Material:NdFeB
Diameter:0.984 inch (25.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.06 inch (+/- 1.5 mm)
M:M6(d0.256/0.472 x 90°)

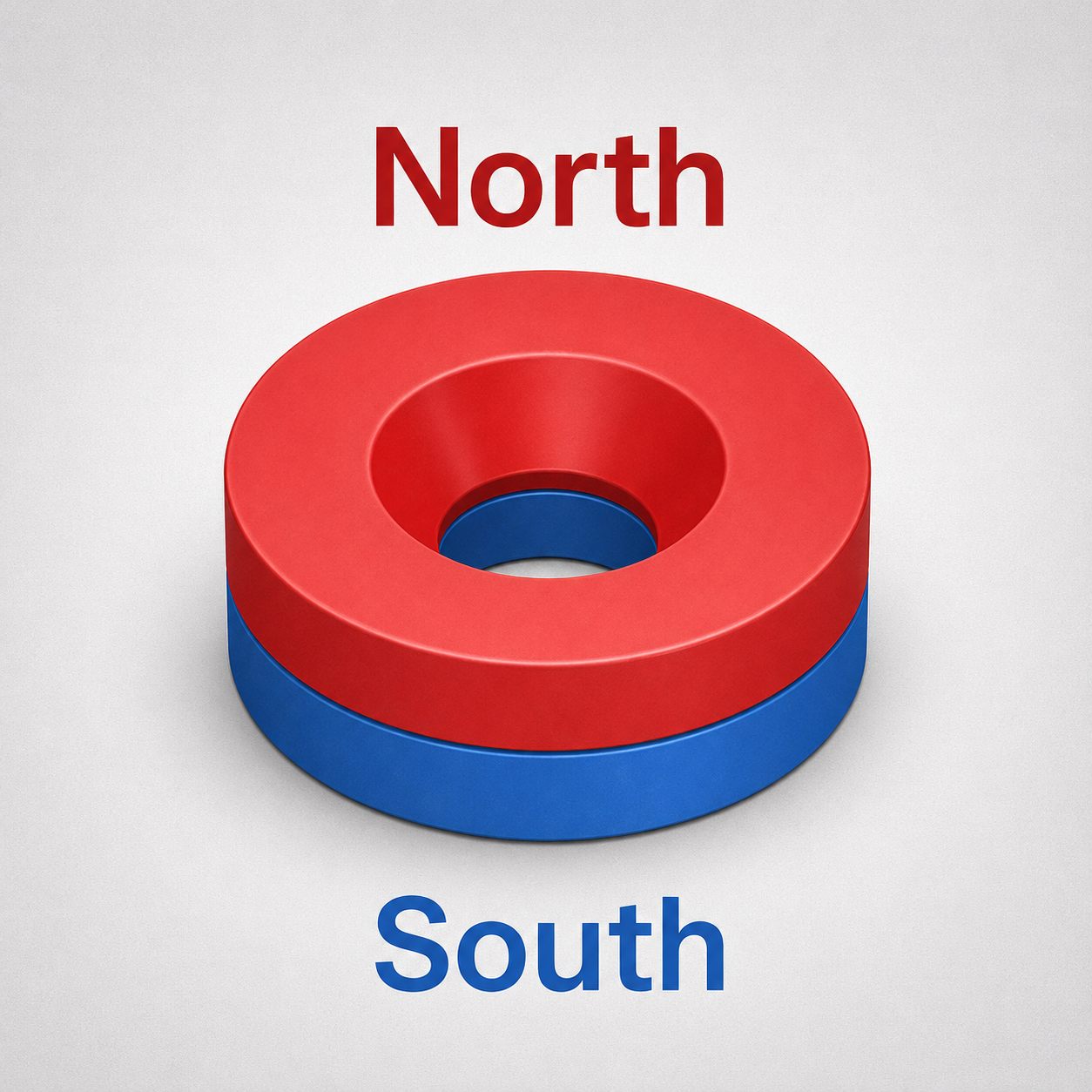

Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.06 oz (30 g)
Pull Force:approx. 15.54 lb (7.05 kgf)
Surface Gauss:approx. 1800 Gs
Max Operating Temp:176 F / 80℃

$2.100

each

20000 in stock

Quantity Price
1 - 99 $2.100
100 - 200 $2.100
201 - 500 $1.600
501 - 1,000 $1.200
1,001 - 2,000 $1.000
2,001+ $1.000

Countersunk Magnet 0.984″×0.394″-M6

Technical Data

Material:NdFeB
Diameter:0.984 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.06 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 30 g
Power:approx 7.05 Kg
Surface Gauss:approx 1800 Gs
Max Operating Temp:176 F / 80℃

$2.100

each

20000 in stock

Quantity Price
1 - 99 $2.100
100 - 200 $2.100
201 - 500 $1.600
501 - 1,000 $1.200
1,001 - 2,000 $1.000
2,001+ $1.000
