Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

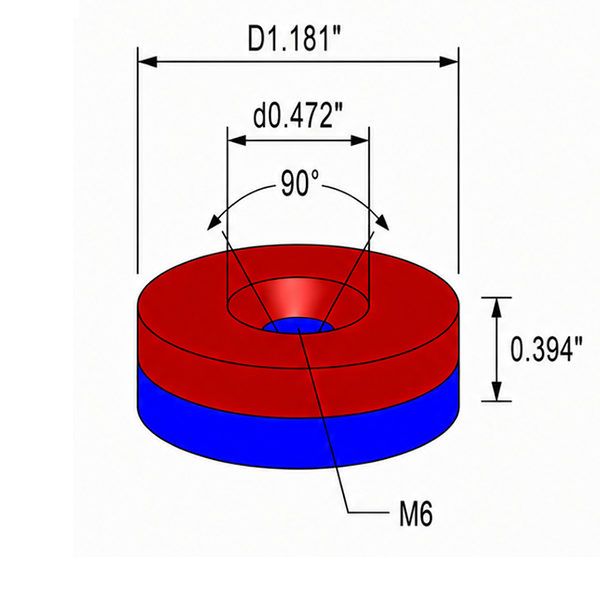

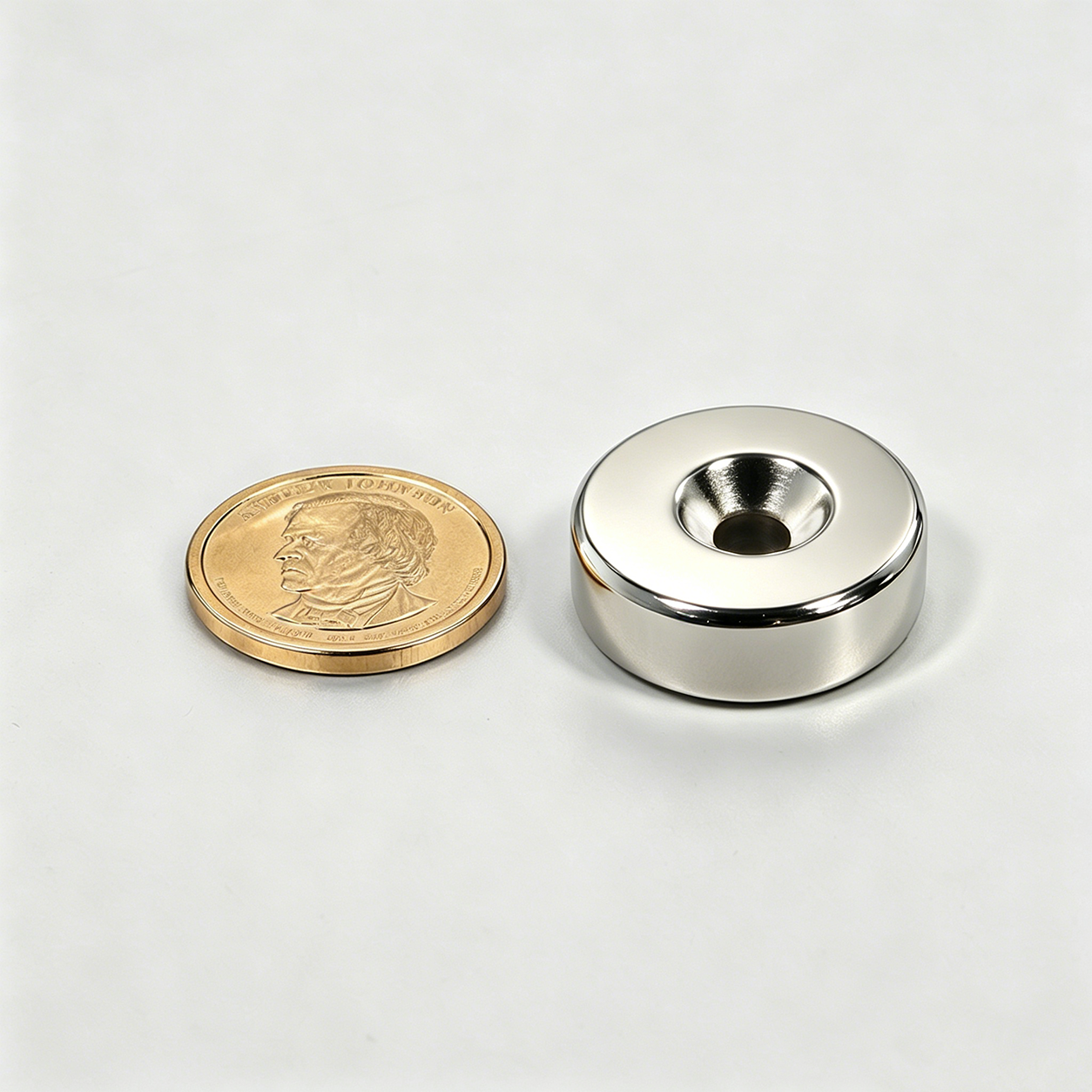

Countersunk Magnet 1.181″×0.394″-M6

Technical Data

Material:NdFeB
Diameter:1.181 inch (30.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.62 oz (46 g)
Pull Force:approx. 22.18 lb (10.06 kgf)
Surface Gauss:approx. 2100 Gs
Max Operating Temp:176 F / 80℃

$1.800

each

20000 in stock

Quantity Price
1 - 99 $1.800
100 - 200 $1.800
201 - 500 $1.300
501 - 1,000 $1.000
1,001 - 2,000 $0.870
2,001+ $0.870

Countersunk Magnet 1.181″×0.394″-M6

Technical Data

Material:NdFeB
Diameter:1.181 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 46 g
Power:approx 10.06 Kg
Surface Gauss:approx 2100 Gs
Max Operating Temp:176 F / 80℃

$1.800

each

20000 in stock

Quantity Price
1 - 99 $1.800
100 - 200 $1.800
201 - 500 $1.300
501 - 1,000 $1.000
1,001 - 2,000 $0.870
2,001+ $0.870
