Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

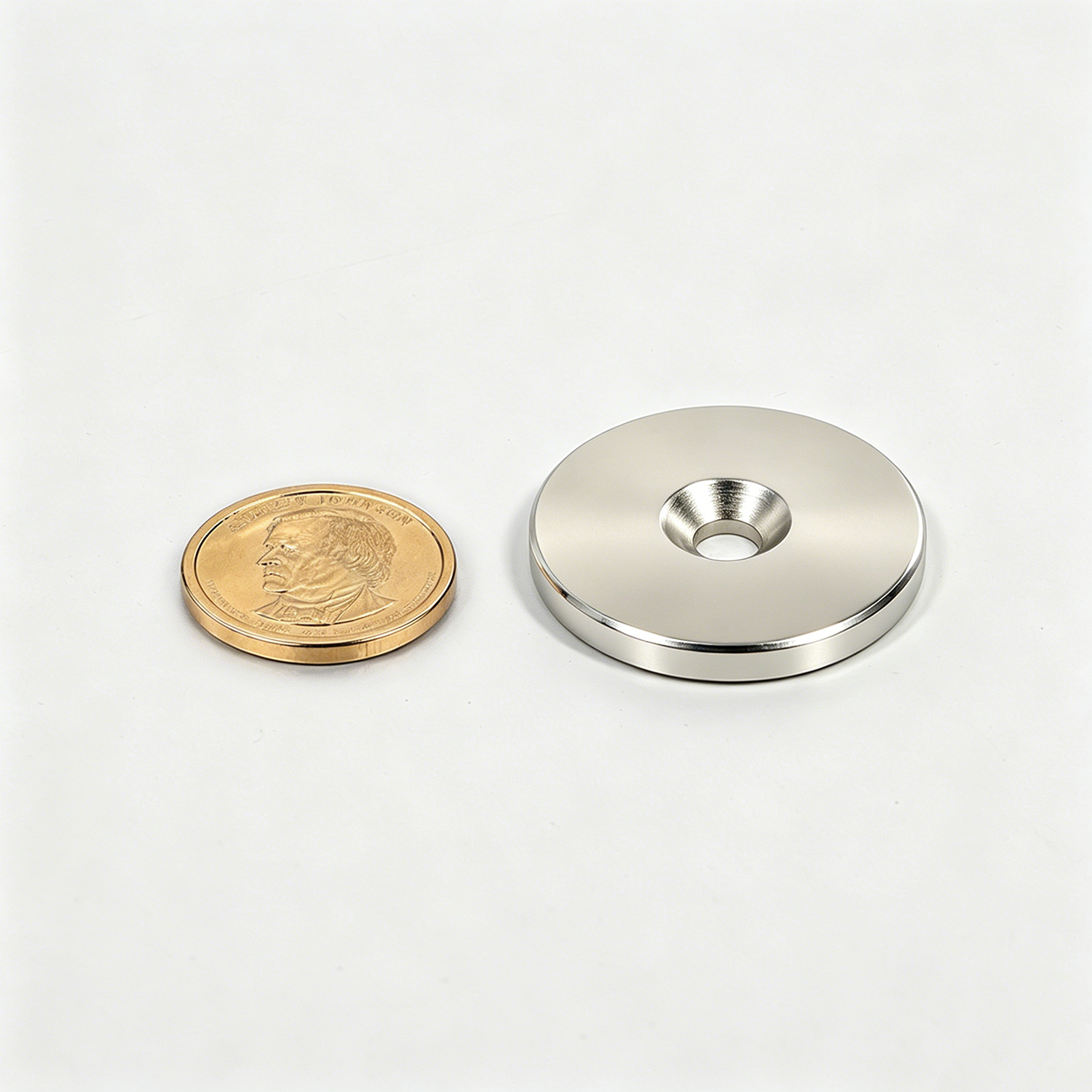

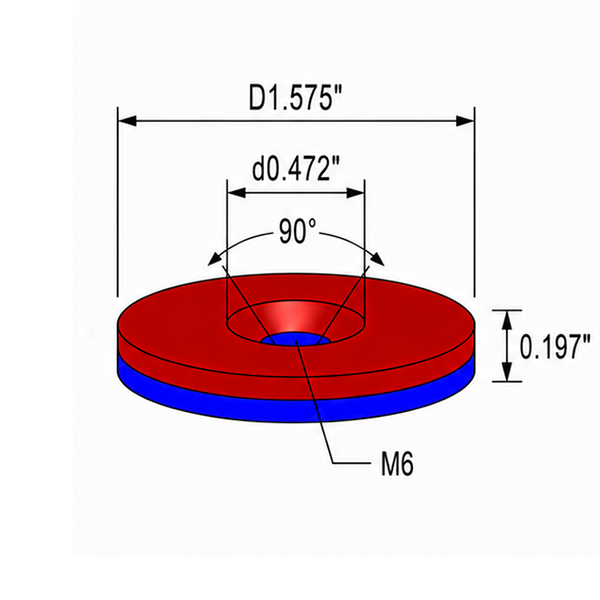

Countersunk Magnet 1.575″×0.197″-M6

Technical Data

Material:NdFeB
Diameter:1.575 inch (40.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.41 oz (40 g)
Pull Force:approx. 18.19 lb (8.25 kgf)
Surface Gauss:approx. 800 Gs
Max Operating Temp:176 F / 80℃

$2.000

each

20000 in stock

Quantity Price
1 - 99 $2.000
100 - 200 $2.000
201 - 500 $1.500
501 - 1,000 $1.100
1,001 - 2,000 $0.900
2,001+ $0.900

Countersunk Magnet 1.575″×0.197″-M6

Technical Data

Material:NdFeB
Diameter:1.575 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 40 g
Power:approx 8.25 Kg
Surface Gauss:approx 800 Gs
Max Operating Temp:176 F / 80℃

$2.000

each

20000 in stock

Quantity Price
1 - 99 $2.000
100 - 200 $2.000
201 - 500 $1.500
501 - 1,000 $1.100
1,001 - 2,000 $0.900
2,001+ $0.900
