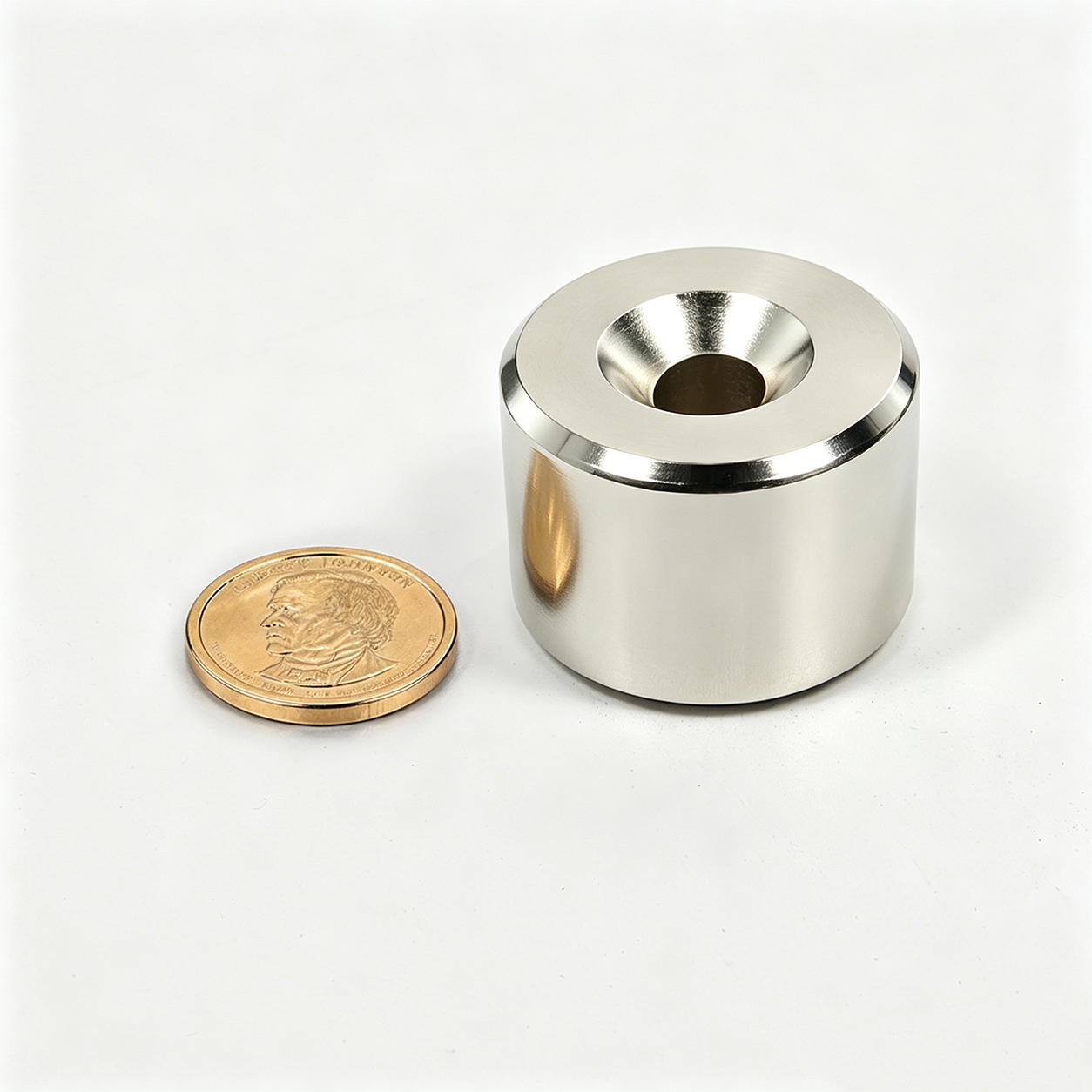

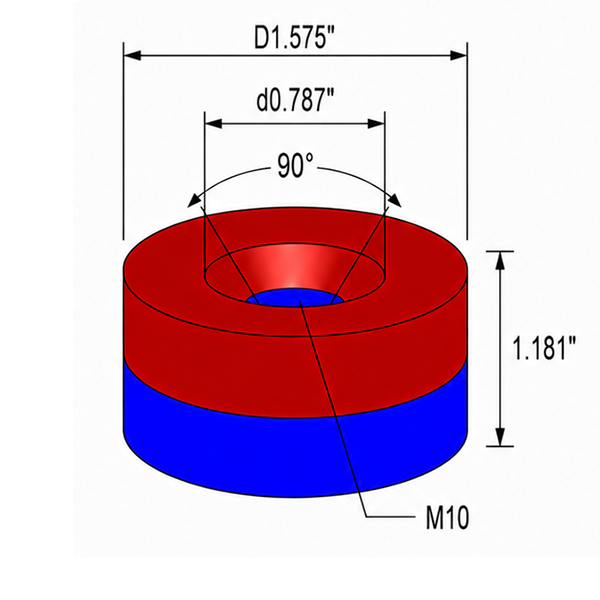

Countersunk Magnet 1.575″×1.181″-M10

Technical Data

Material:NdFeB
Diameter:1.575 inch (40.0 mm)
Thickness:1.181 inch (30.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 8.47 oz (240 g)
Pull Force:approx. 41.89 lb (19 kgf)
Surface Gauss:approx. 3700 Gs
Max Operating Temp:176 F / 80℃

$15.000

each

20000 in stock

Quantity Price
1 - 99 $15.000
100 - 200 $15.000
201 - 500 $10.000
501 - 1,000 $7.000
1,001 - 2,000 $6.000
2,001+ $6.000

Countersunk Magnet 1.575″×1.181″-M10

Technical Data

Material:NdFeB
Diameter:1.575 Inch
Thickness:1.181 Inch
Tolerance:+/- 0.08 Inch
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 240 g
Power:approx 19 Kg
Surface Gauss:approx 3700 Gs
Max Operating Temp:176 F / 80℃

$15.000

each

20000 in stock

Quantity Price
1 - 99 $15.000
100 - 200 $15.000
201 - 500 $10.000
501 - 1,000 $7.000
1,001 - 2,000 $6.000
2,001+ $6.000
