Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

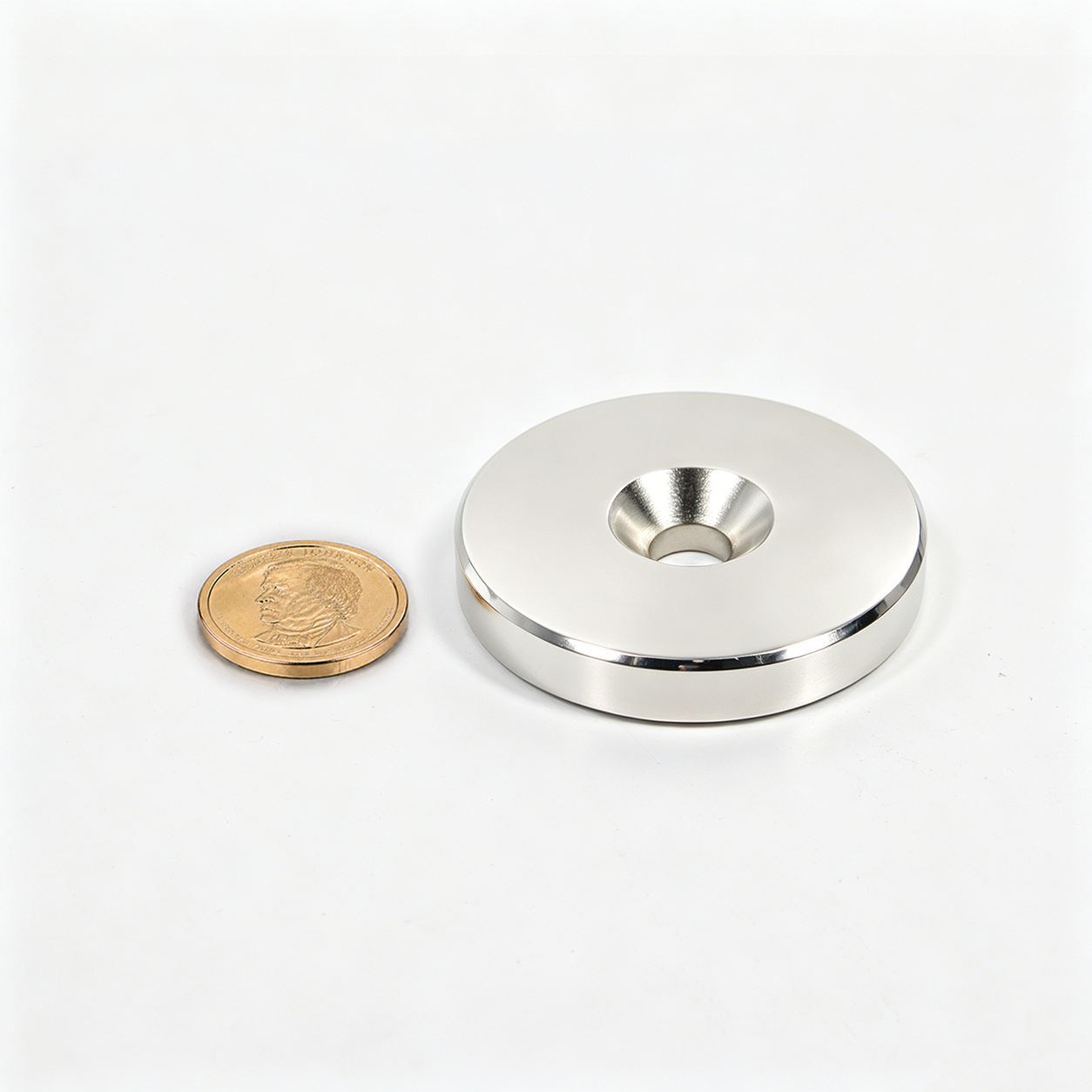

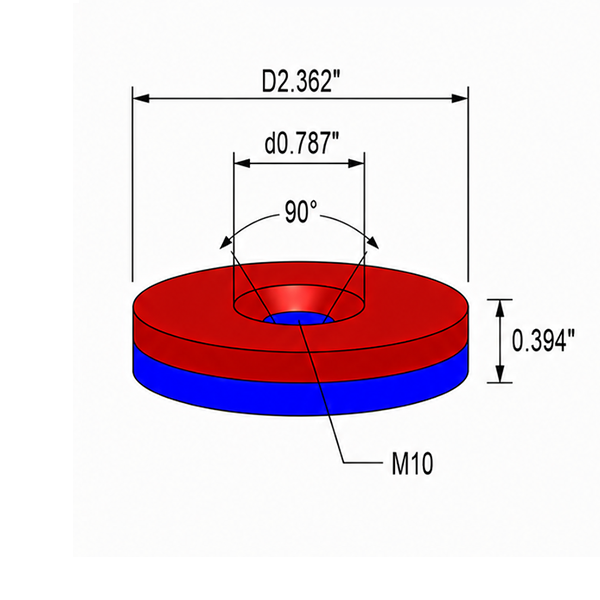

Countersunk Magnet 2.362″×0.394″-M10

Technical Data

Material:NdFeB
Diameter:2.362 inch (60.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 5.04 oz (143 g)
Pull Force:approx. 46.3 lb (21 kgf)
Surface Gauss:approx. 1600 Gs
Max Operating Temp:176 F / 80℃

$8.000

each

20000 in stock

Quantity Price
1 - 99 $8.000
100 - 200 $8.000
201 - 500 $6.500
501 - 1,000 $5.500
1,001 - 2,000 $4.300
2,001+ $4.300

Countersunk Magnet 2.362″×0.394″-M10

Technical Data

Material:NdFeB
Diameter:2.362 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 143 g
Power:approx 21 Kg
Surface Gauss:approx 1600 Gs
Max Operating Temp:176 F / 80℃

$8.000

each

20000 in stock

Quantity Price
1 - 99 $8.000
100 - 200 $8.000
201 - 500 $6.500
501 - 1,000 $5.500
1,001 - 2,000 $4.300
2,001+ $4.300
