Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

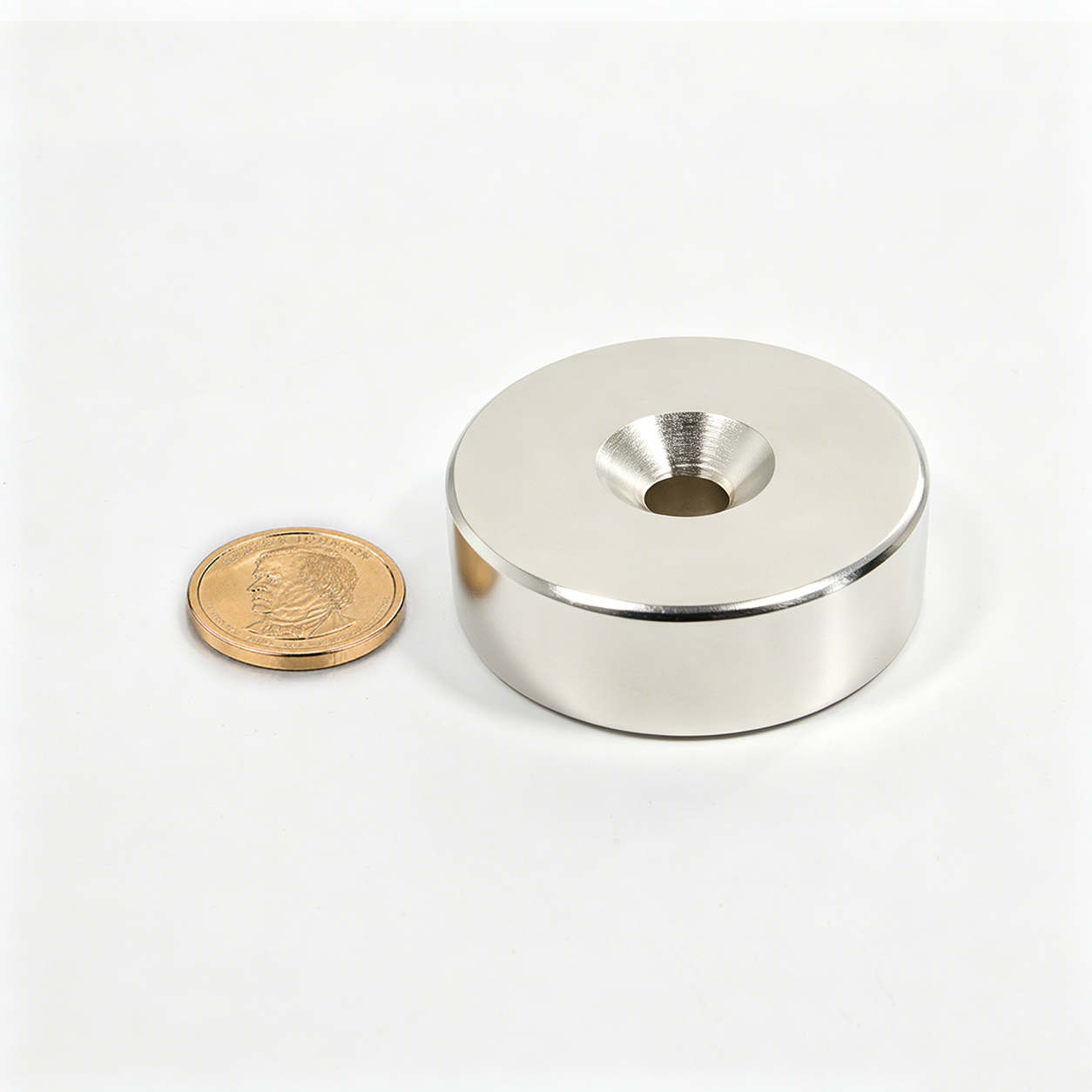

Countersunk Magnet 2.362″×0.787″-M10

Technical Data

Material:NdFeB
Diameter:2.362 inch (60.0 mm)
Thickness:0.787 inch (20.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)

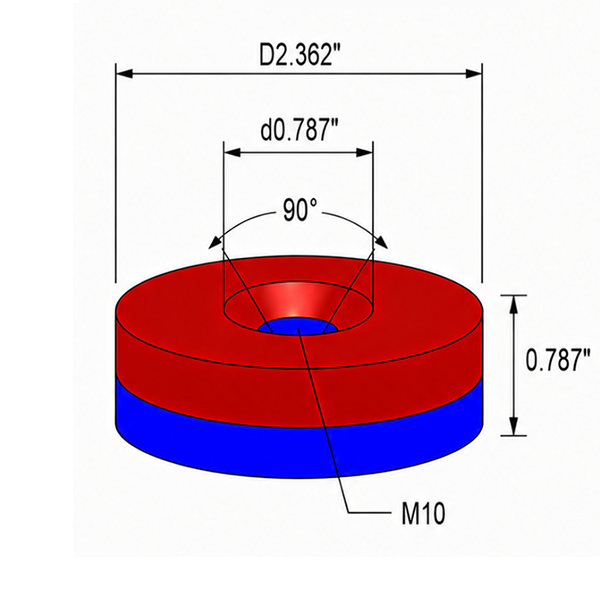

M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 10.23 oz (290 g)
Pull Force:approx. 48.5 lb (22 kgf)
Surface Gauss:approx. 2500 Gs
Max Operating Temp:176 F / 80℃

$19.000

each

20000 in stock

Quantity Price
1 - 99 $19.000
100 - 200 $19.000
201 - 500 $13.000
501 - 1,000 $9.000
1,001 - 2,000 $7.000
2,001+ $7.000

Countersunk Magnet 2.362″×0.787″-M10

Technical Data

Material:NdFeB
Diameter:2.362 Inch
Thickness:0.787 Inch
Tolerance:+/- 0.08 Inch
M:M10(d0.413/0.787 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 290 g
Power:approx 22 Kg
Surface Gauss:approx 2500 Gs
Max Operating Temp:176 F / 80℃

$19.000

each

20000 in stock

Quantity Price
1 - 99 $19.000
100 - 200 $19.000
201 - 500 $13.000
501 - 1,000 $9.000
1,001 - 2,000 $7.000
2,001+ $7.000
