Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

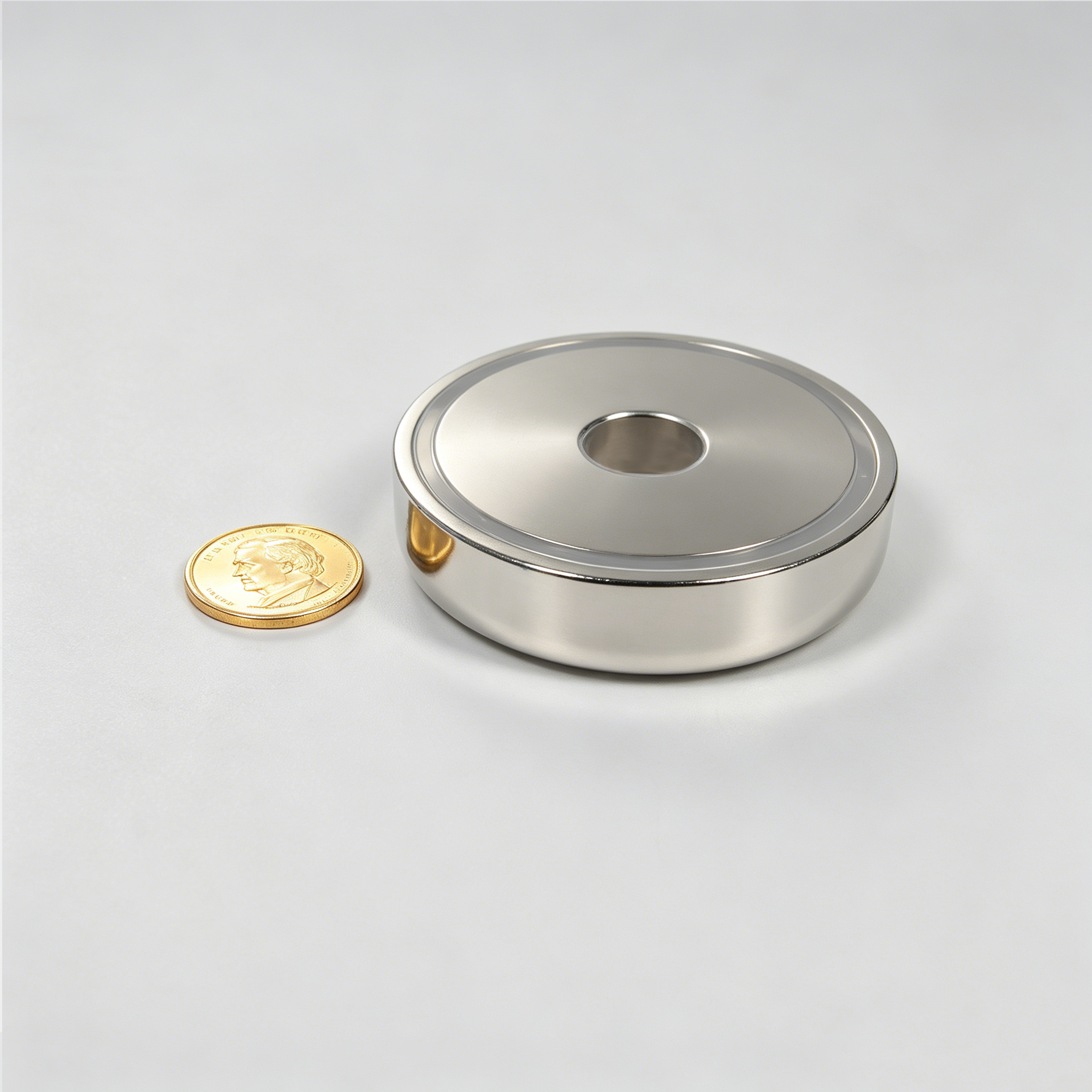

NdFeB Counterbore Pot Magnet 2.953“x0.709”

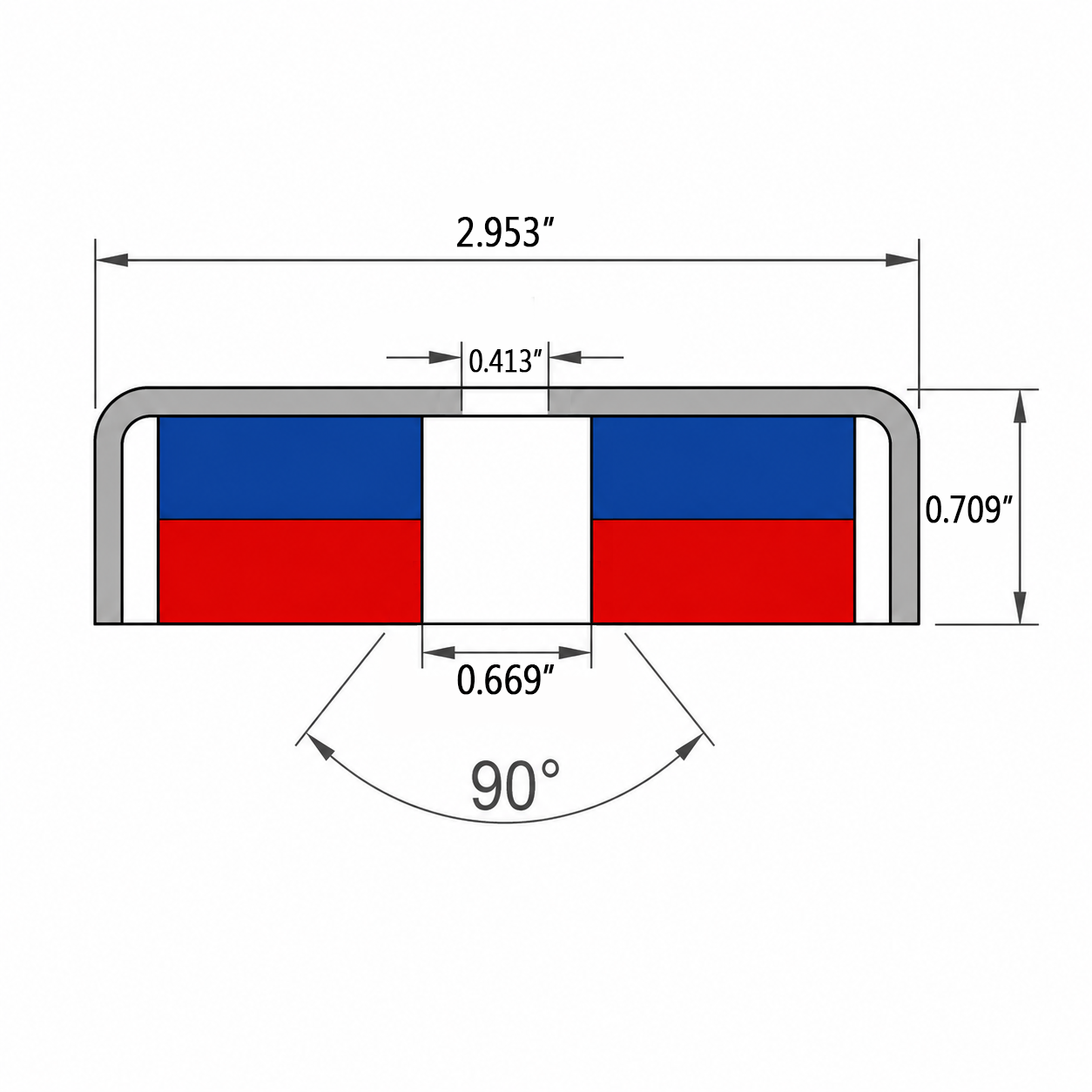

Technical Data

Material:NdFeB
Diameter:2.953 inch (75.0 mm)
Hole d1:0.413 inch (10.5 mm)
Countersinking d2:0.669 inch (17.0 mm)
Height:0.709 inch (18.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 20.64 oz (585 g)
Pull Force:approx. 518.09 lb (235 kgf)
Surface Gauss:approx. 1900 Gs
Max Operating Temp:176 F / 80℃

$77.120

each

20000 in stock

Quantity Price
1 - 19 $77.120
20 - 50 $77.120
51 - 100 $70.110
101 - 200 $66.600
201+ $66.600

NdFeB Counterbore Pot Magnet 2.953“x0.709”

Technical Data

Material:NdFeB
Diameter:2.953 Inch
Hole d1:0.413 Inch
Countersinking d2:0.669 Inch
Height:0.709 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 585 g
Power:approx 235 Kg
Surface Gauss:approx 1900 Gs
Max Operating Temp:176 F / 80℃

$77.120

each

20000 in stock

Quantity Price
1 - 19 $77.120
20 - 50 $77.120
51 - 100 $70.110
101 - 200 $66.600
201+ $66.600
