Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

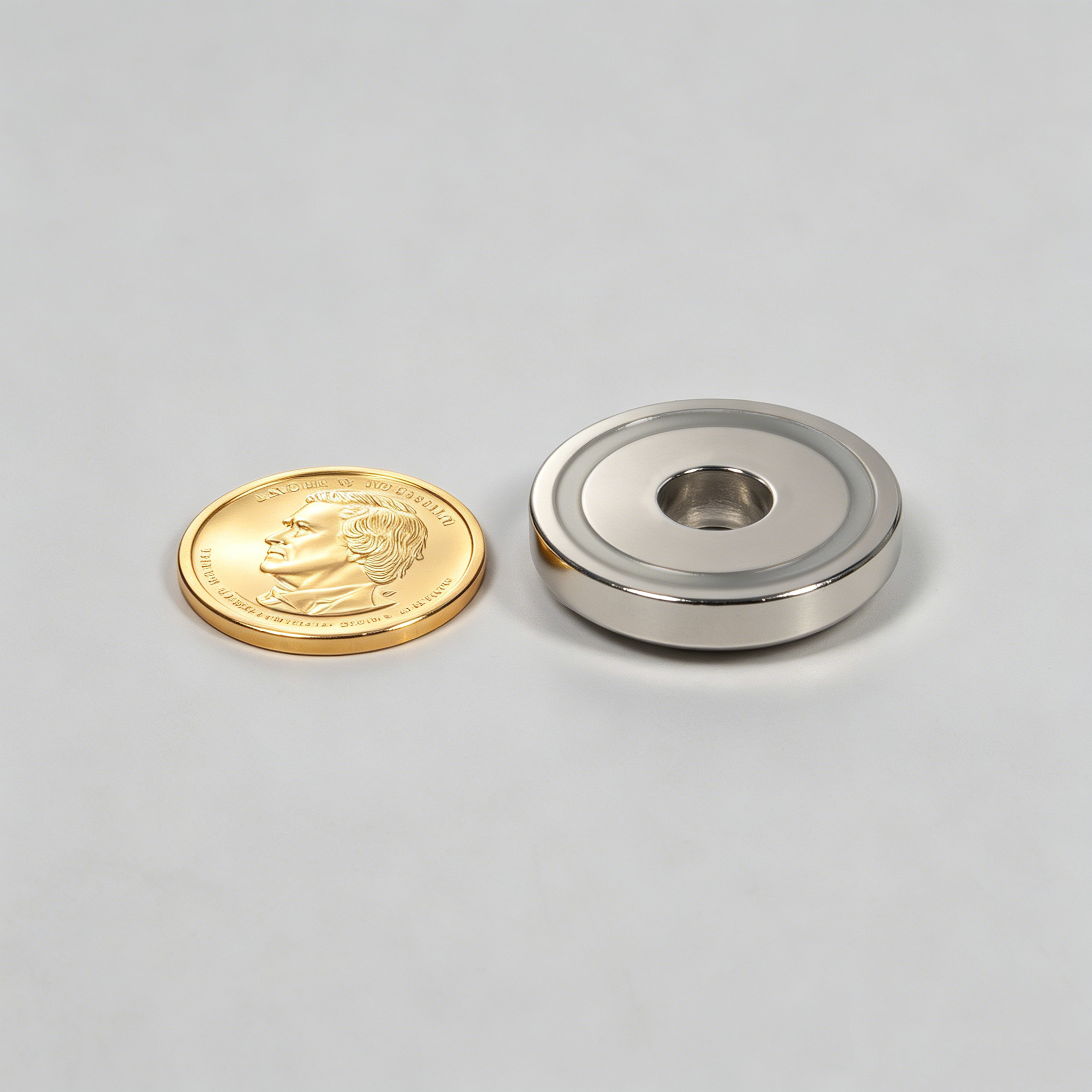

NdFeB Counterbore Pot Magnet 1.26“x0.276”

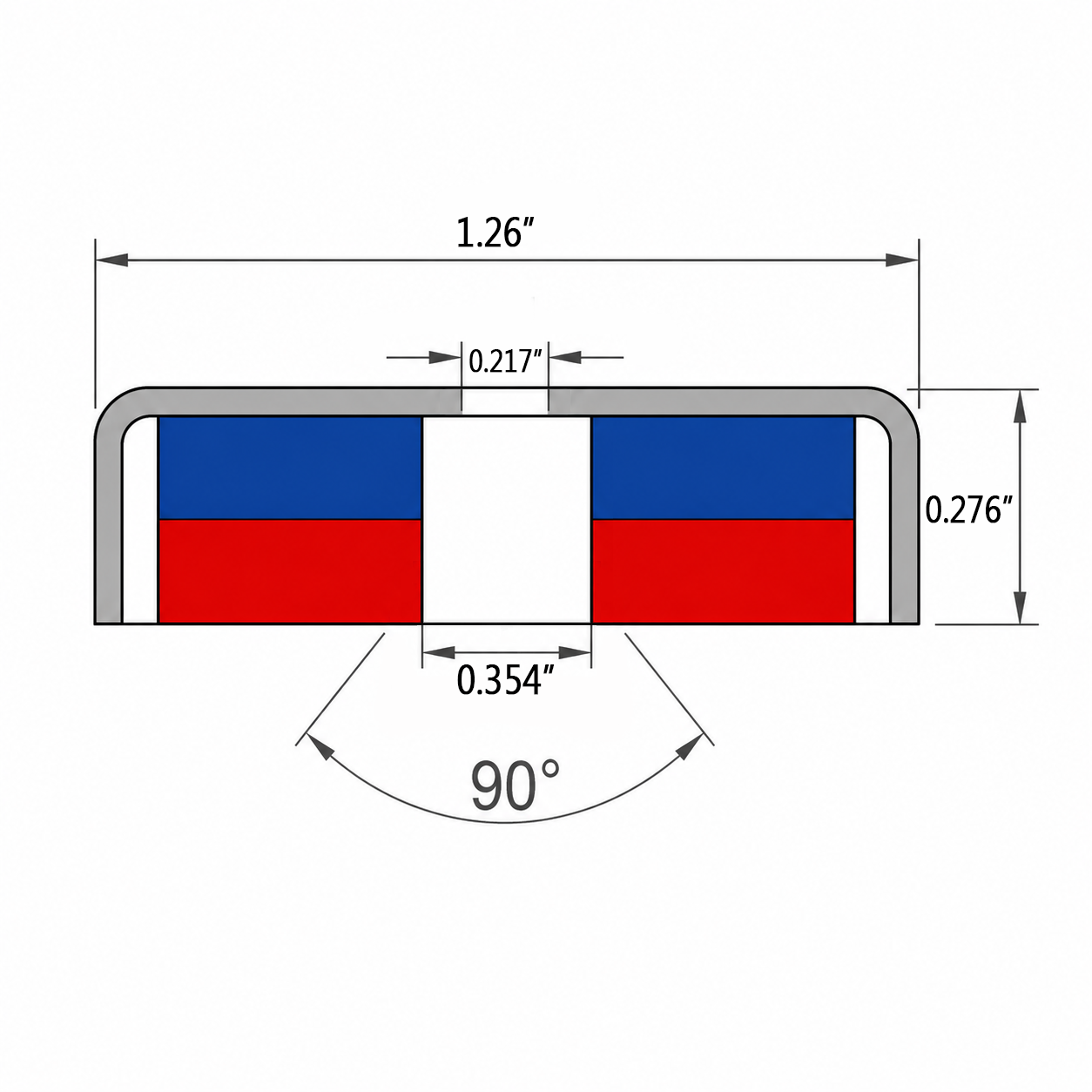

Technical Data

Material:NdFeB
Diameter:1.26 inch (32.0 mm)
Hole d1:0.217 inch (5.5 mm)
Countersinking d2:0.354 inch (9.0 mm)
Height:0.276 inch (7.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 1.27 oz (36 g)
Pull Force:approx. 52.91 lb (24 kgf)
Surface Gauss:approx. 1700 Gs
Max Operating Temp:176 F / 80℃

$6.220

each

20000 in stock

Quantity Price
1 - 49 $6.220
50 - 100 $6.220
101 - 200 $5.870
201 - 500 $5.530
501+ $5.530

NdFeB Counterbore Pot Magnet 1.26“x0.276”

Technical Data

Material:NdFeB
Diameter:1.26 Inch
Hole d1:0.217 Inch
Countersinking d2:0.354 Inch
Height:0.276 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 36 g
Power:approx 24 Kg
Surface Gauss:approx 1700 Gs
Max Operating Temp:176 F / 80℃

$6.220

each

20000 in stock

Quantity Price
1 - 49 $6.220
50 - 100 $6.220
101 - 200 $5.870
201 - 500 $5.530
501+ $5.530
