Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

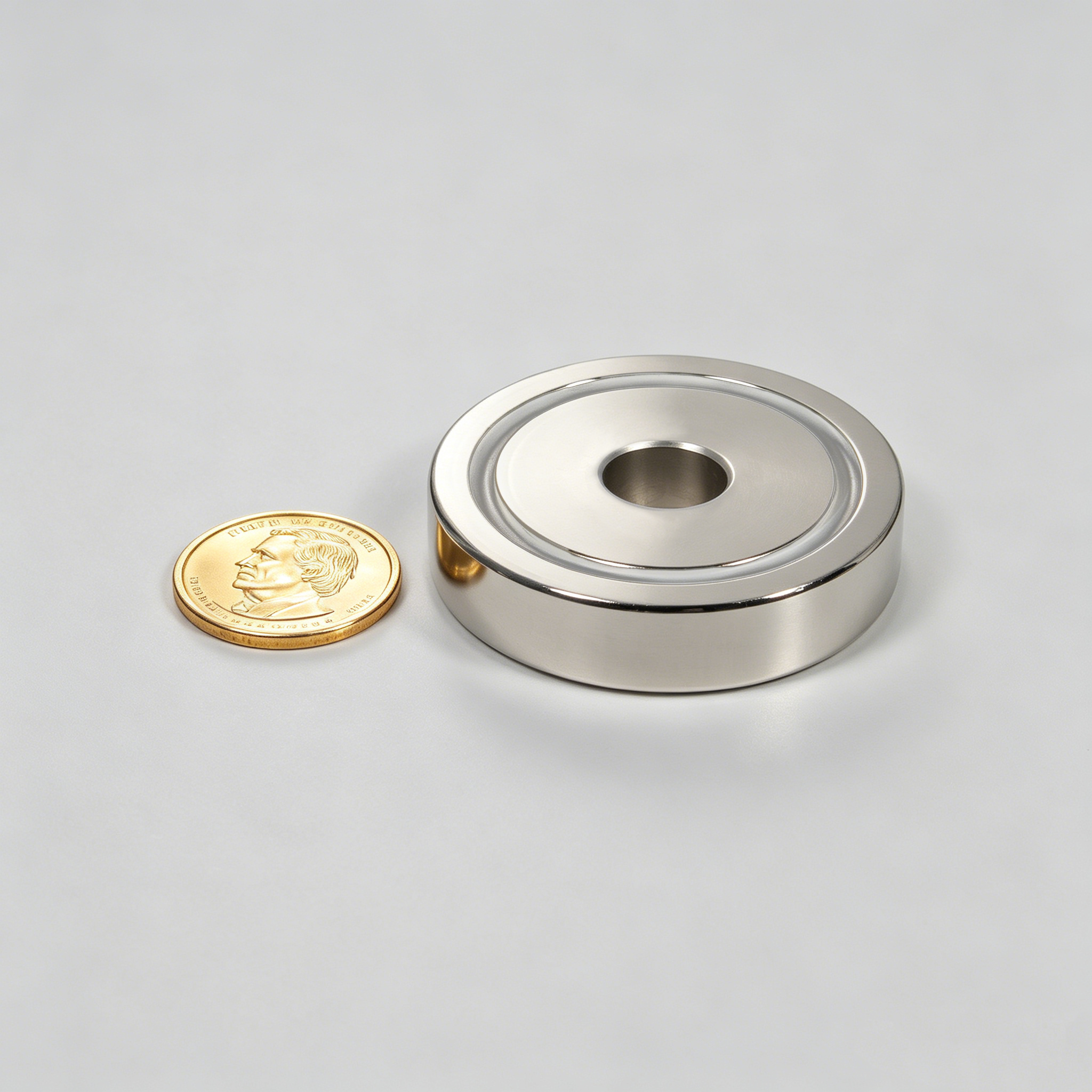

NdFeB Counterbore Pot Magnet 2.165“x0.472”

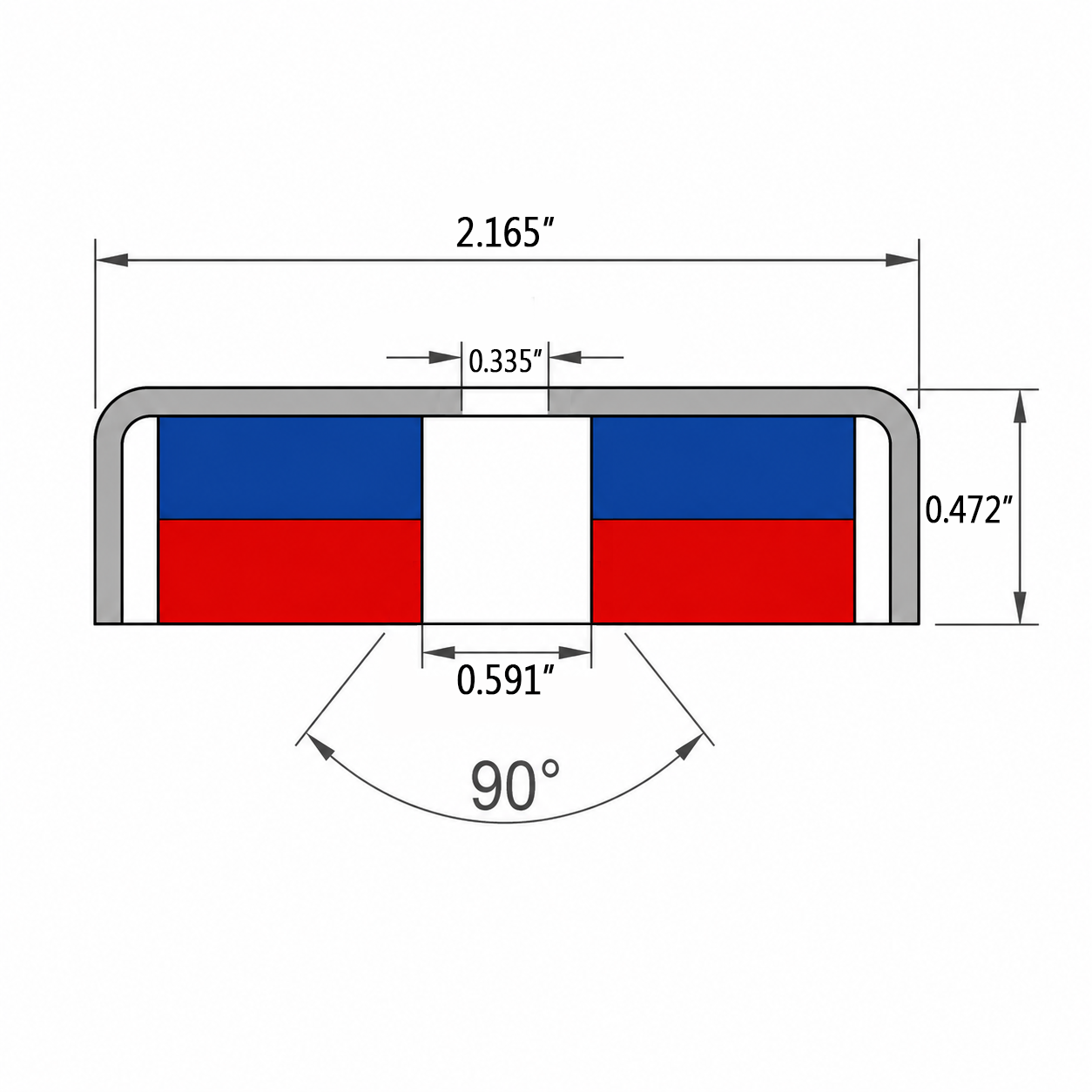

Technical Data

Material:NdFeB
Diameter:2.165 inch (55.0 mm)
Hole d1:0.335 inch (8.5 mm)
Countersinking d2:0.591 inch (15.0 mm)
Height:0.472 inch (12.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 7.27 oz (206 g)
Pull Force:approx. 220.46 lb (100 kgf)
Surface Gauss:approx. 2200 Gs
Max Operating Temp:176 F / 80℃

$27.010

each

20000 in stock

Quantity Price
1 - 49 $27.010
50 - 100 $27.010
101 - 200 $25.420
201 - 500 $23.830
501+ $23.830

NdFeB Counterbore Pot Magnet 2.165“x0.472”

Technical Data

Material:NdFeB
Diameter:2.165 Inch
Hole d1:0.335 Inch
Countersinking d2:0.591 Inch
Height:0.472 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 206 g
Power:approx 100 Kg
Surface Gauss:approx 2200 Gs
Max Operating Temp:176 F / 80℃

$27.010

each

20000 in stock

Quantity Price
1 - 49 $27.010
50 - 100 $27.010
101 - 200 $25.420
201 - 500 $23.830
501+ $23.830
