Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

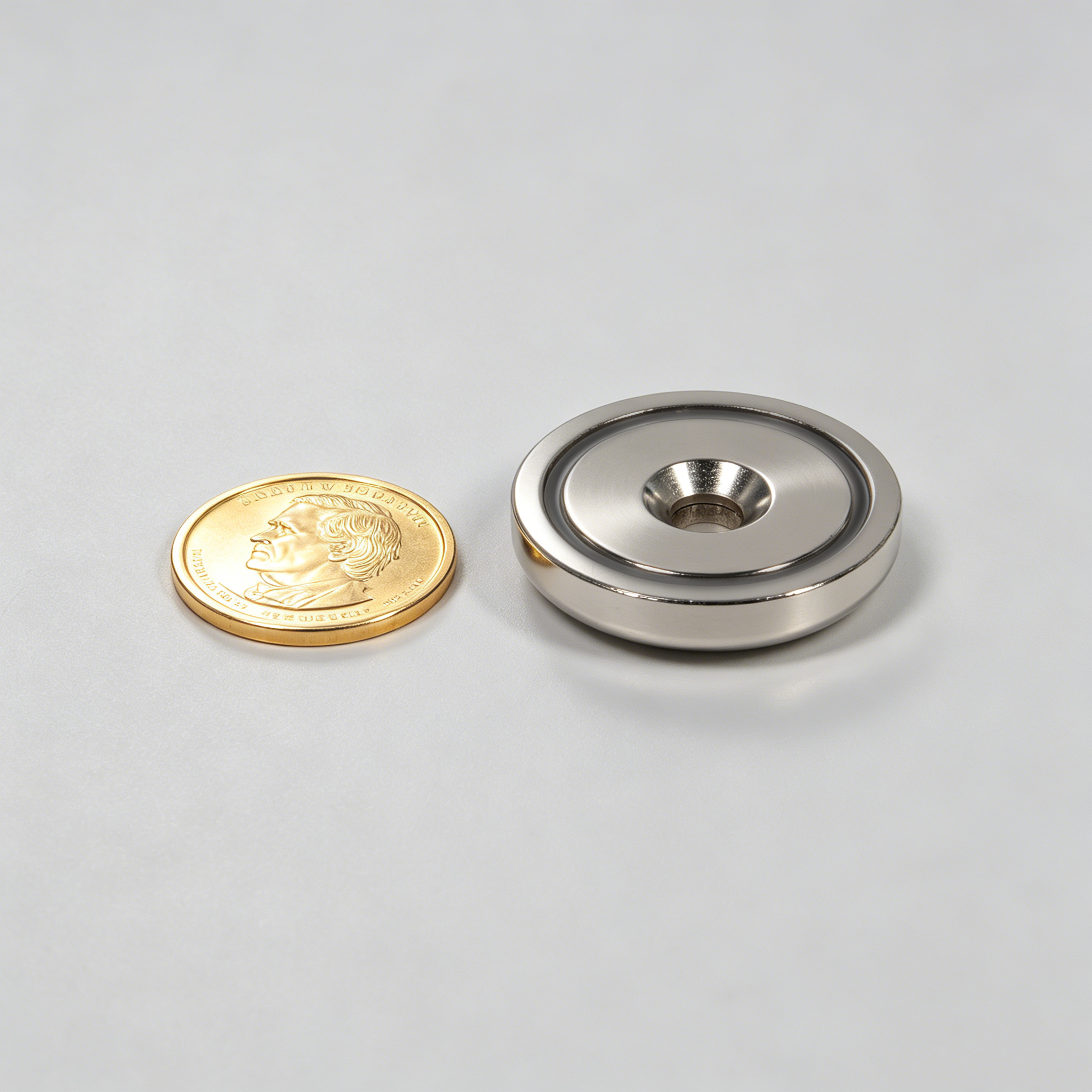

NdFeB Countersunk Pot Magnet 1.417“x0.276”-M6

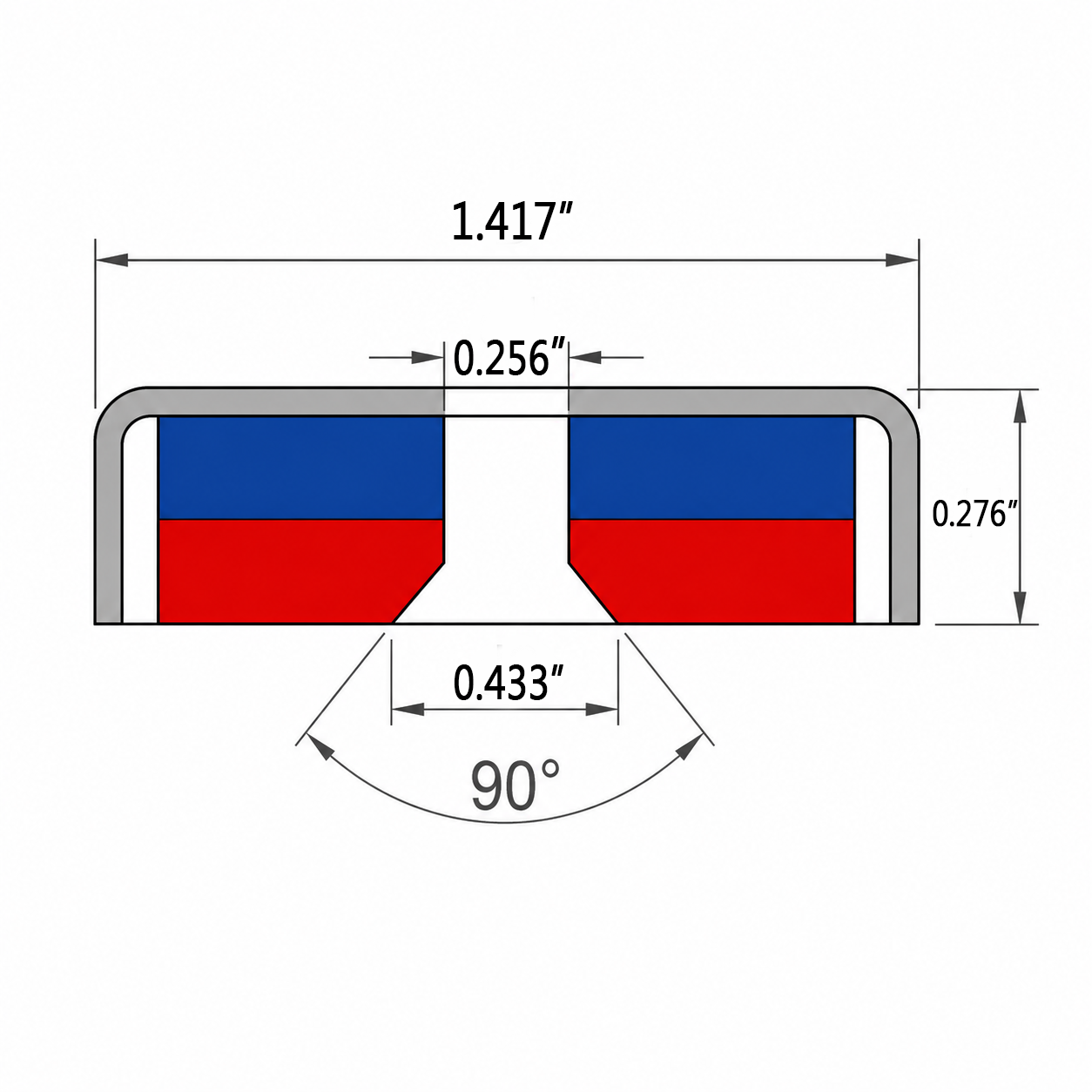

Technical Data

Material:NdFeB
Diameter:1.417 inch (36.0 mm)
Hole d1:0.256 inch (6.5 mm)
Countersinking d2:0.433 inch (11.0 mm)
Height:0.276 inch (7.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 1.45 oz (41 g)
Pull Force:approx. 57.32 lb (26 kgf)
Surface Gauss:approx. 1900 Gs
Max Operating Temp:176 F / 80℃

$9.090

each

20000 in stock

Quantity Price
1 - 49 $9.090
50 - 100 $9.090
101 - 200 $8.590
201 - 500 $8.080
501+ $8.080

NdFeB Countersunk Pot Magnet 1.417“x0.276”-M6

Technical Data

Material:NdFeB
Diameter:1.417 Inch
Hole d1:0.256 Inch
Countersinking d2:0.433 Inch
Height:0.276 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 41 g
Power:approx 26 Kg
Surface Gauss:approx 1900 Gs
Max Operating Temp:176 F / 80℃

$9.090

each

20000 in stock

Quantity Price
1 - 49 $9.090
50 - 100 $9.090
101 - 200 $8.590
201 - 500 $8.080
501+ $8.080
