Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

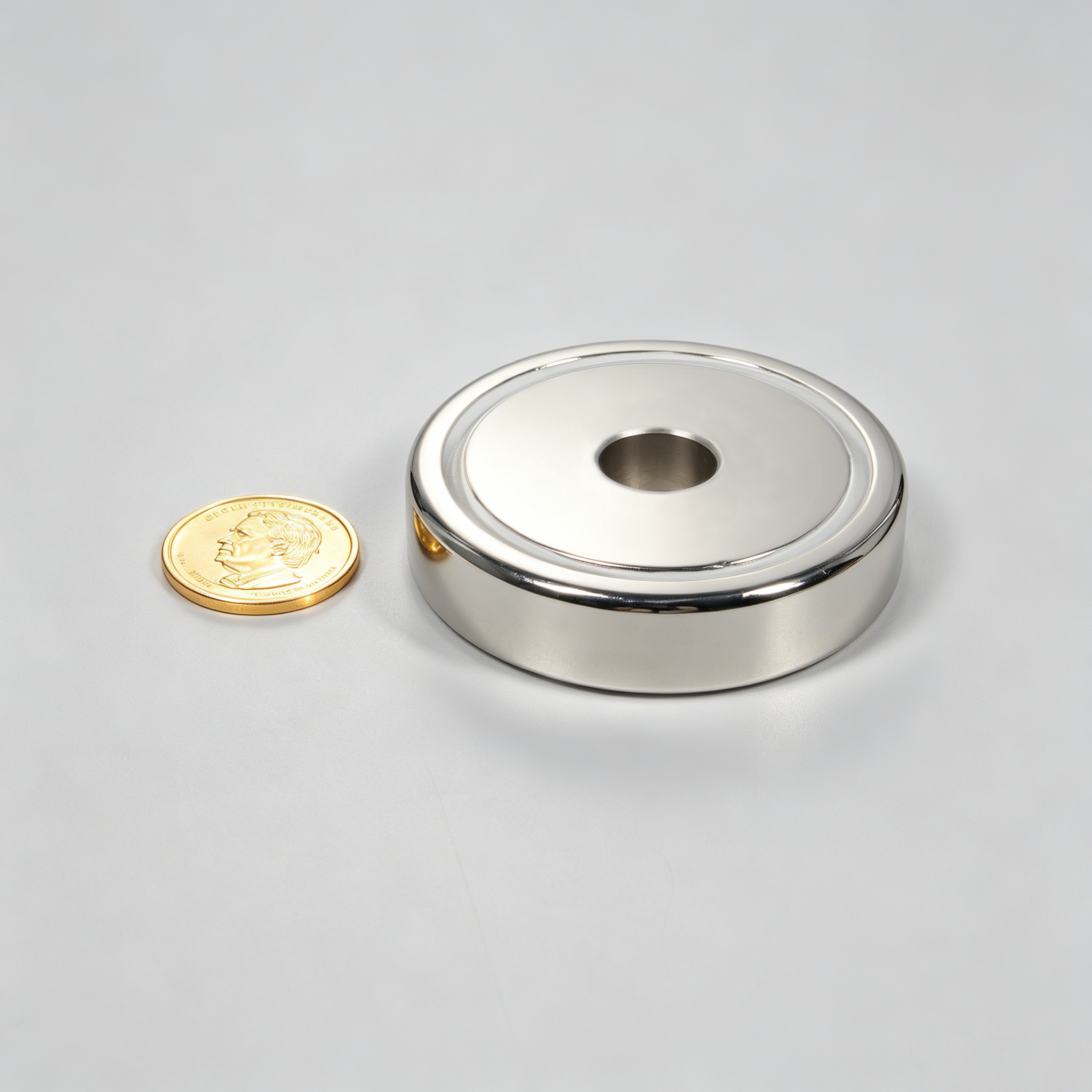

NdFeB Counterbore Pot Magnet 2.638“x0.591”

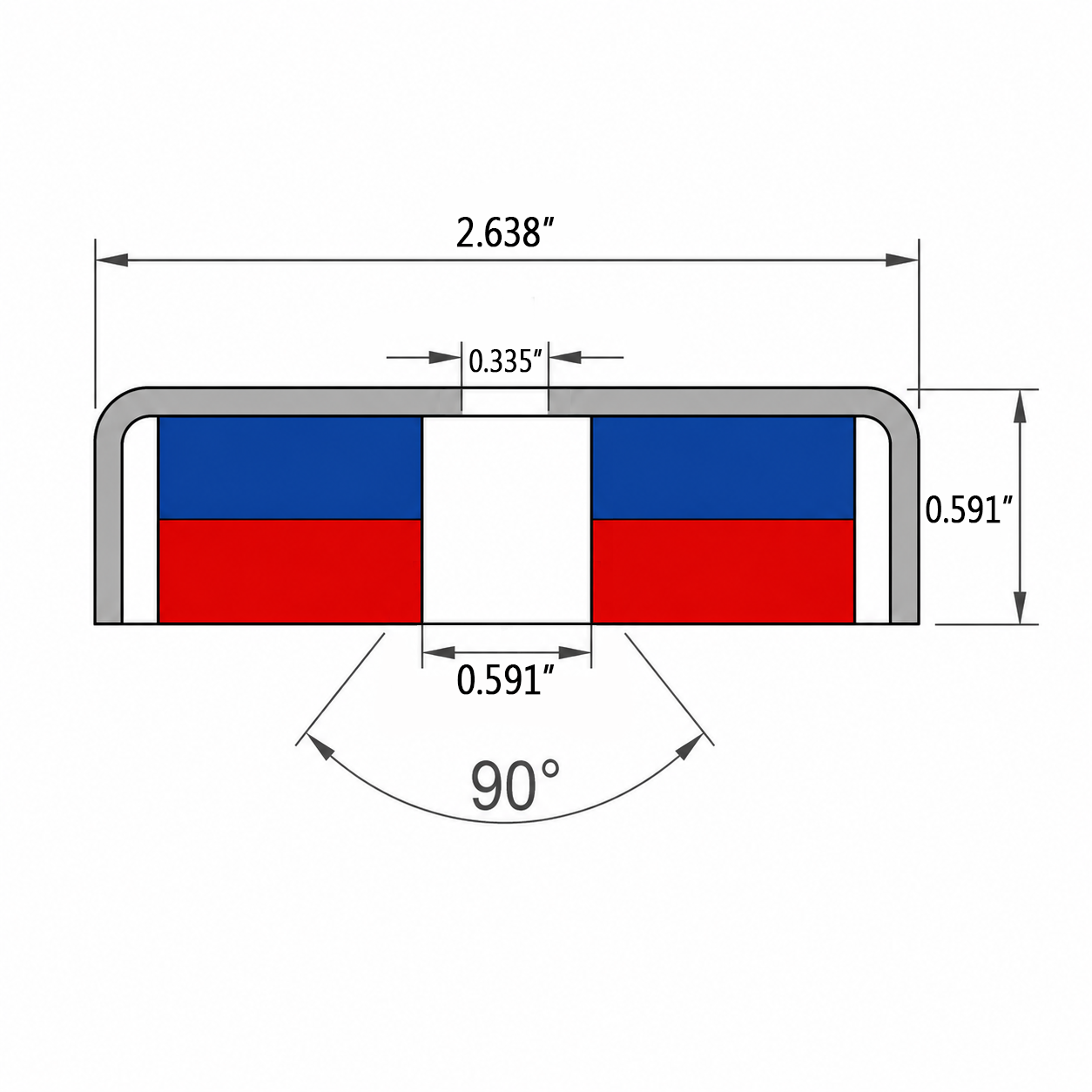

Technical Data

Material:NdFeB
Diameter:2.638 inch (67.0 mm)
Hole d1:0.335 inch (8.5 mm)
Countersinking d2:0.591 inch (15.0 mm)
Height:0.591 inch (15.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 13.93 oz (395 g)
Pull Force:approx. 385.81 lb (175 kgf)
Surface Gauss:approx. 2100 Gs
Max Operating Temp:176 F / 80℃

$58.800

each

20000 in stock

Quantity Price
1 - 19 $58.800
20 - 50 $58.800
51 - 100 $53.450
101+ $50.780

NdFeB Counterbore Pot Magnet 2.638“x0.591”

Technical Data

Material:NdFeB
Diameter:2.638 Inch
Hole d1:0.335 Inch
Countersinking d2:0.591 Inch
Height:0.591 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 395 g
Power:approx 175 Kg
Surface Gauss:approx 2100 Gs
Max Operating Temp:176 F / 80℃

$58.800

each

20000 in stock

Quantity Price
1 - 19 $58.800
20 - 50 $58.800
51 - 100 $53.450
101+ $50.780
