Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

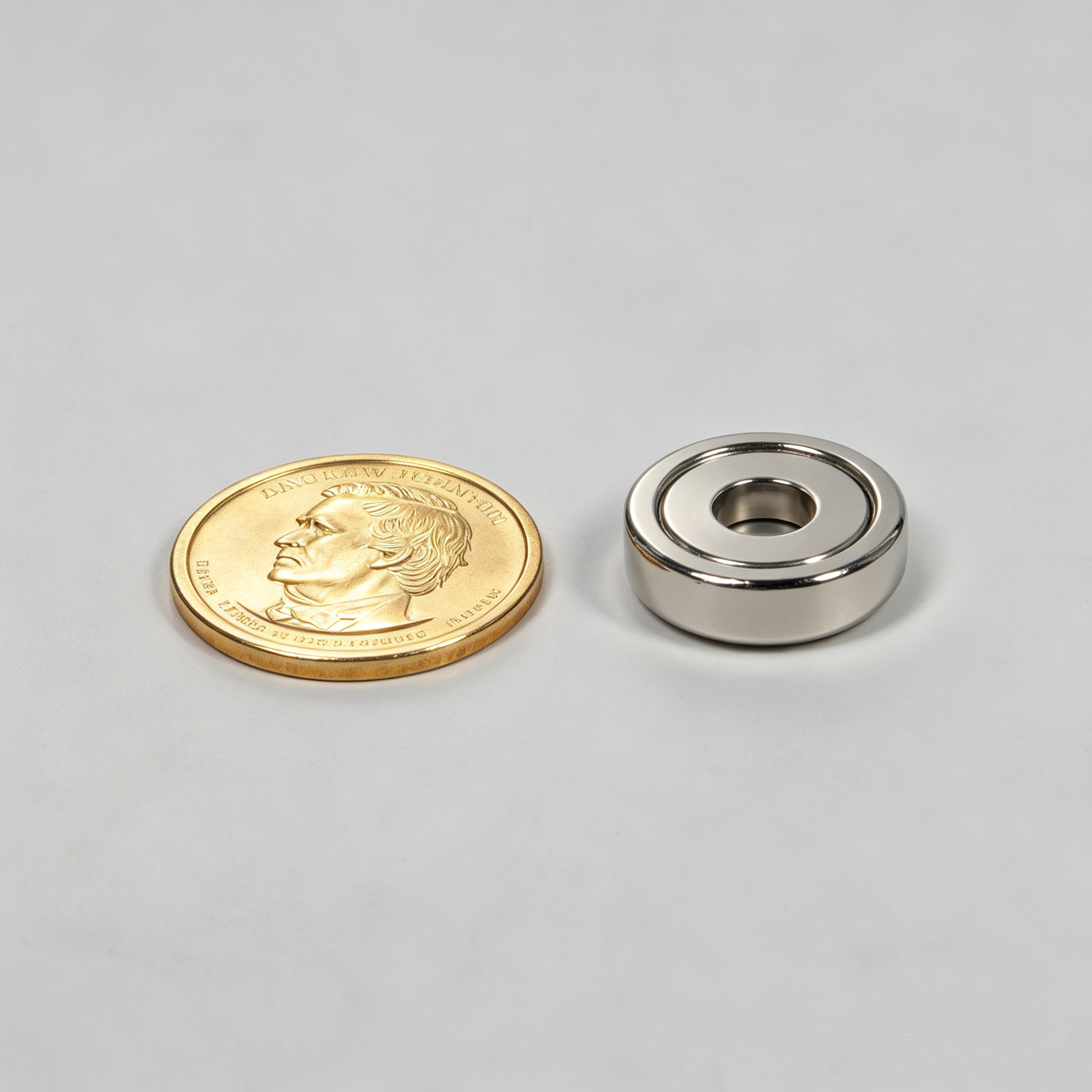

NdFeB Counterbore Pot Magnet 0.787“x0.236”

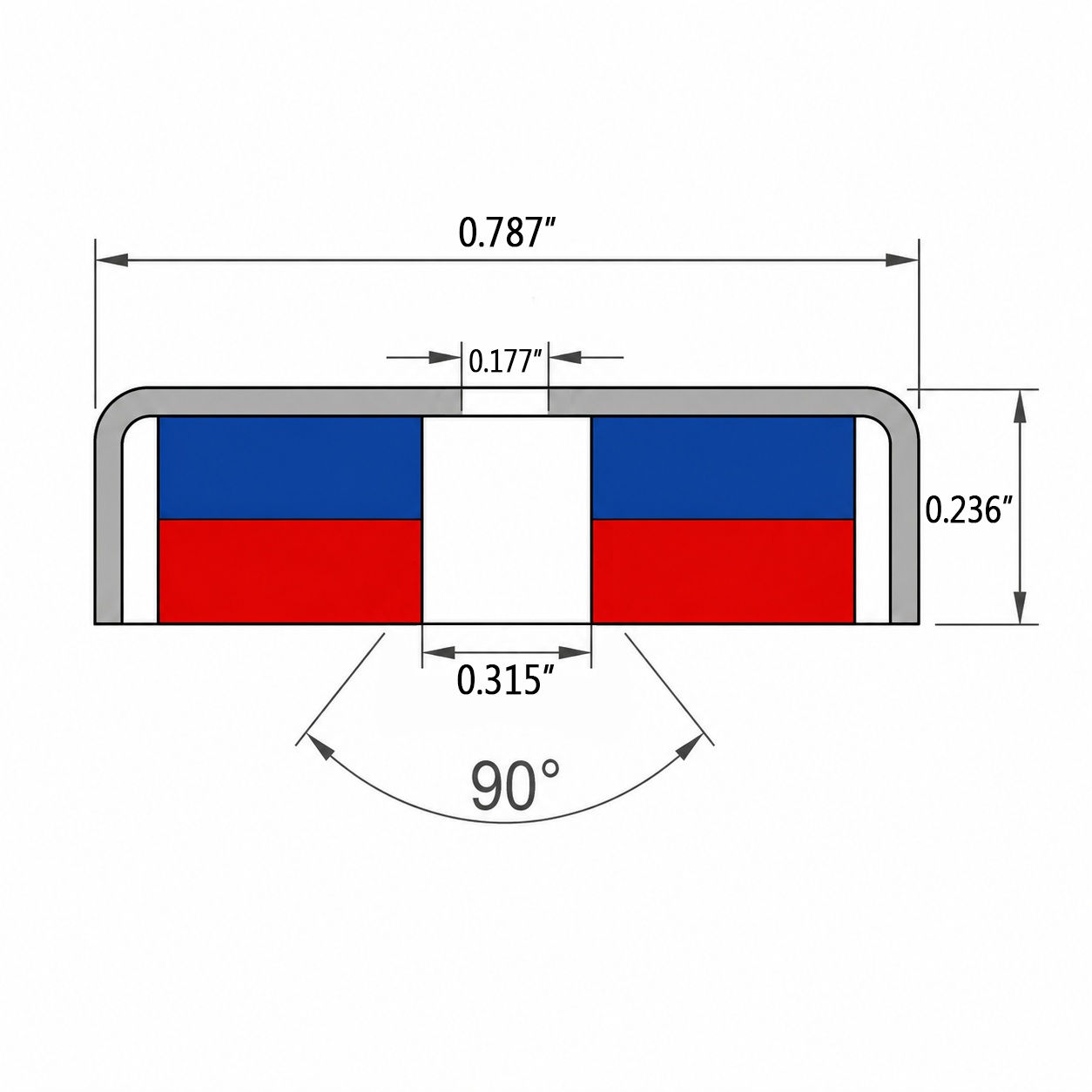

Technical Data

Material:NdFeB
Diameter:0.787 inch (20.0 mm)
Hole d1:0.177 inch (4.5 mm)
Countersinking d2:0.315 inch (8.0 mm)
Height:0.236 inch (6.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 0.317 oz (9 g)
Pull Force:approx. 15.43 lb (7 kgf)
Surface Gauss:approx. 2600 Gs
Max Operating Temp:176 F / 80℃

$3.100

each

20000 in stock

Quantity Price
1 - 49 $3.100
50 - 100 $3.100
101 - 200 $2.930
201 - 500 $2.770
501+ $2.770

NdFeB Counterbore Pot Magnet 0.787“x0.236”

Technical Data

Material:NdFeB
Diameter:0.787 Inch
Hole d1:0.177 Inch
Countersinking d2:0.315 Inch
Height:0.236 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 9 g
Power:approx 7 Kg
Surface Gauss:approx 2600 Gs
Max Operating Temp:176 F / 80℃

$3.100

each

20000 in stock

Quantity Price
1 - 49 $3.100
50 - 100 $3.100
101 - 200 $2.930
201 - 500 $2.770
501+ $2.770
