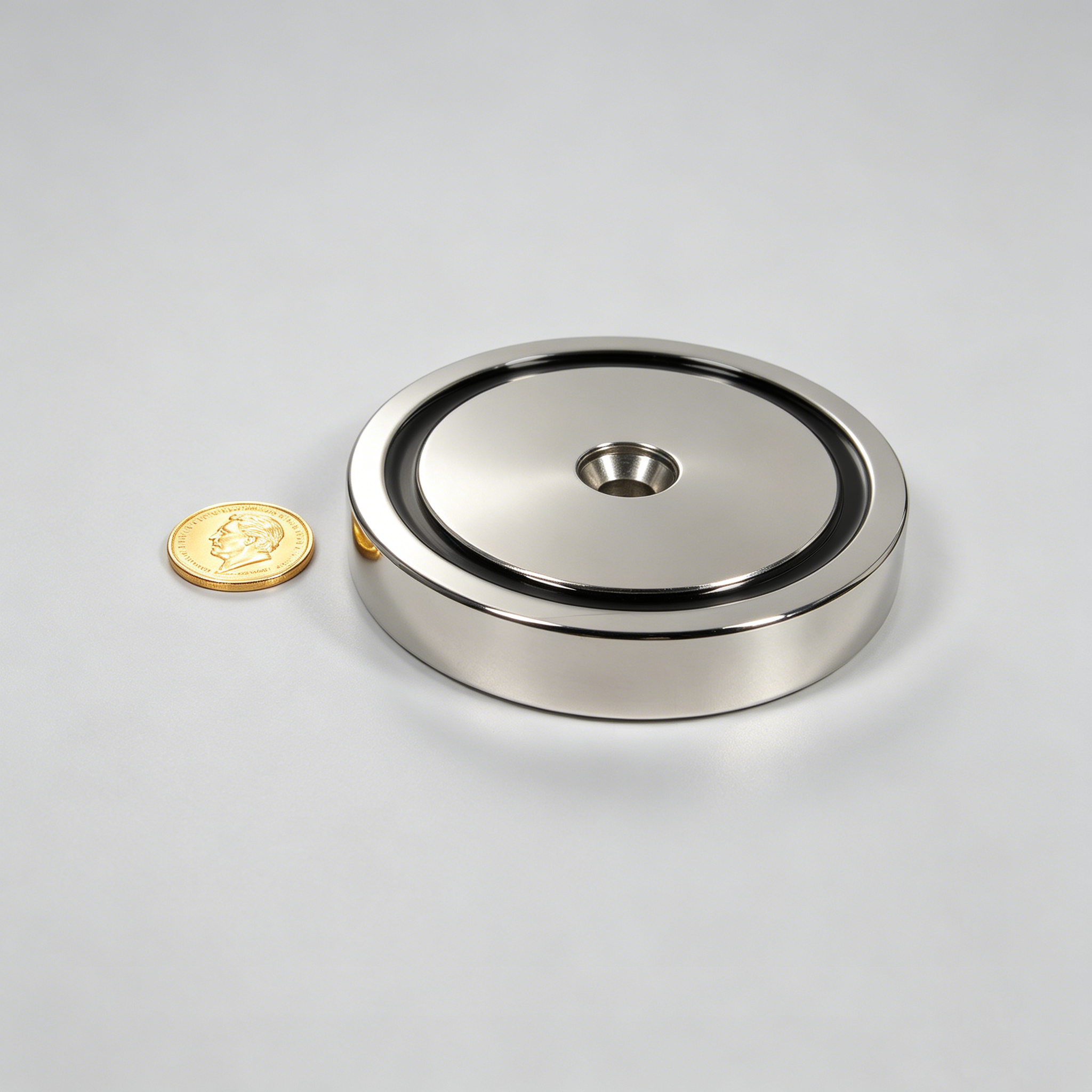

NdFeB Countersunk Pot Magnet 3.937“x0.709”-M10

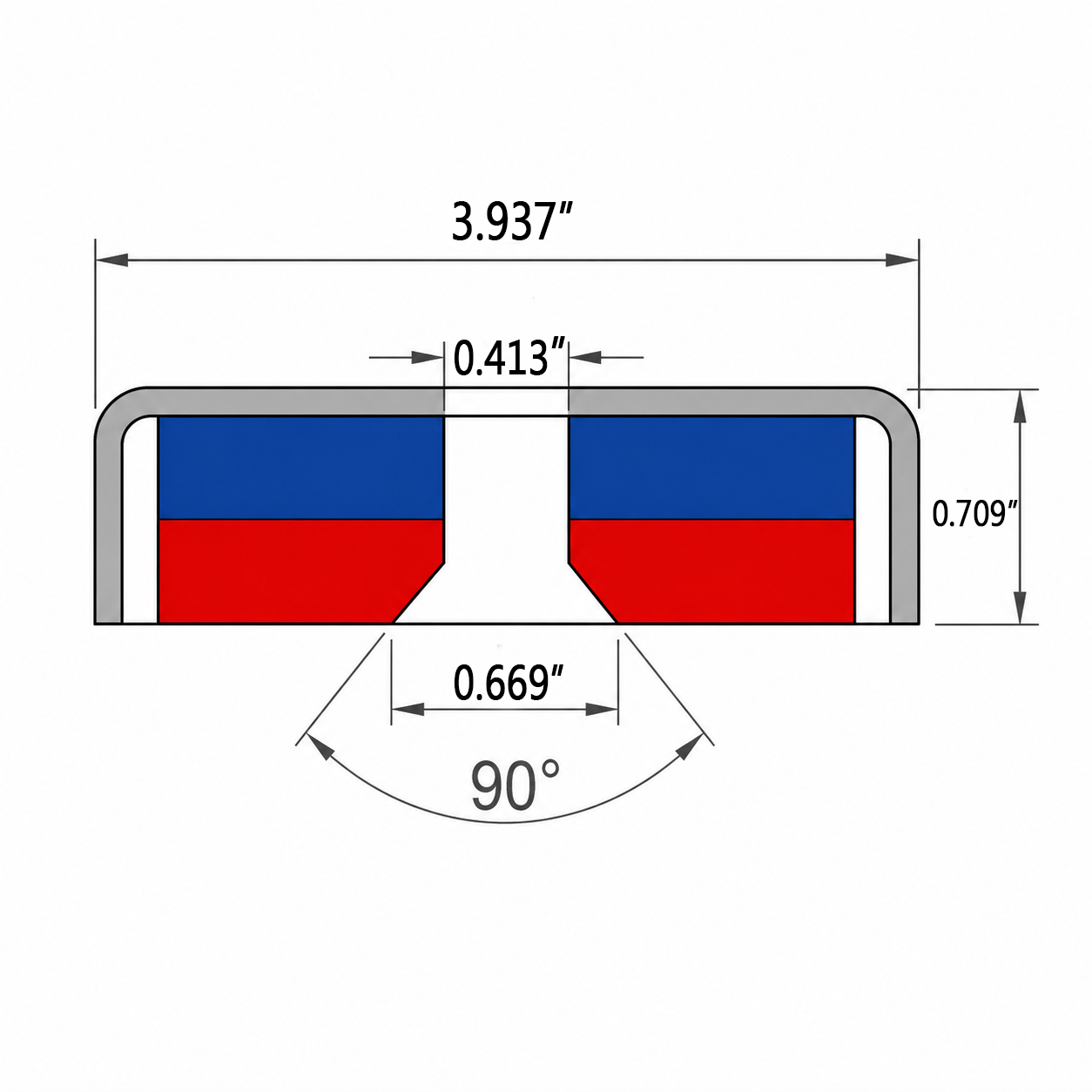

Technical Data

Material:NdFeB
Diameter:3.937 inch (100.0 mm)
Hole d1:0.413 inch (10.5 mm)
Countersinking d2:0.669 inch (17.0 mm)
Height:0.709 inch (18.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 33.83 oz (959 g)
Pull Force:approx. 881.85 lb (400 kgf)
Surface Gauss:approx. 1500 Gs
Max Operating Temp:176 F / 80℃

$161.980

each

20000 in stock

Quantity Price
1 - 19 $161.980
20 - 50 $161.980
51 - 100 $147.250
101 - 200 $139.890
201+ $139.890

NdFeB Countersunk Pot Magnet 3.937“x0.709”-M10

Technical Data

Material:NdFeB
Diameter:3.937 Inch
Hole d1:0.413 Inch
Countersinking d2:0.669 Inch
Height:0.709 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 959 g
Power:approx 400 Kg
Surface Gauss:approx 1500 Gs
Max Operating Temp:176 F / 80℃

$161.980

each

20000 in stock

Quantity Price
1 - 19 $161.980
20 - 50 $161.980
51 - 100 $147.250
101 - 200 $139.890
201+ $139.890
