Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

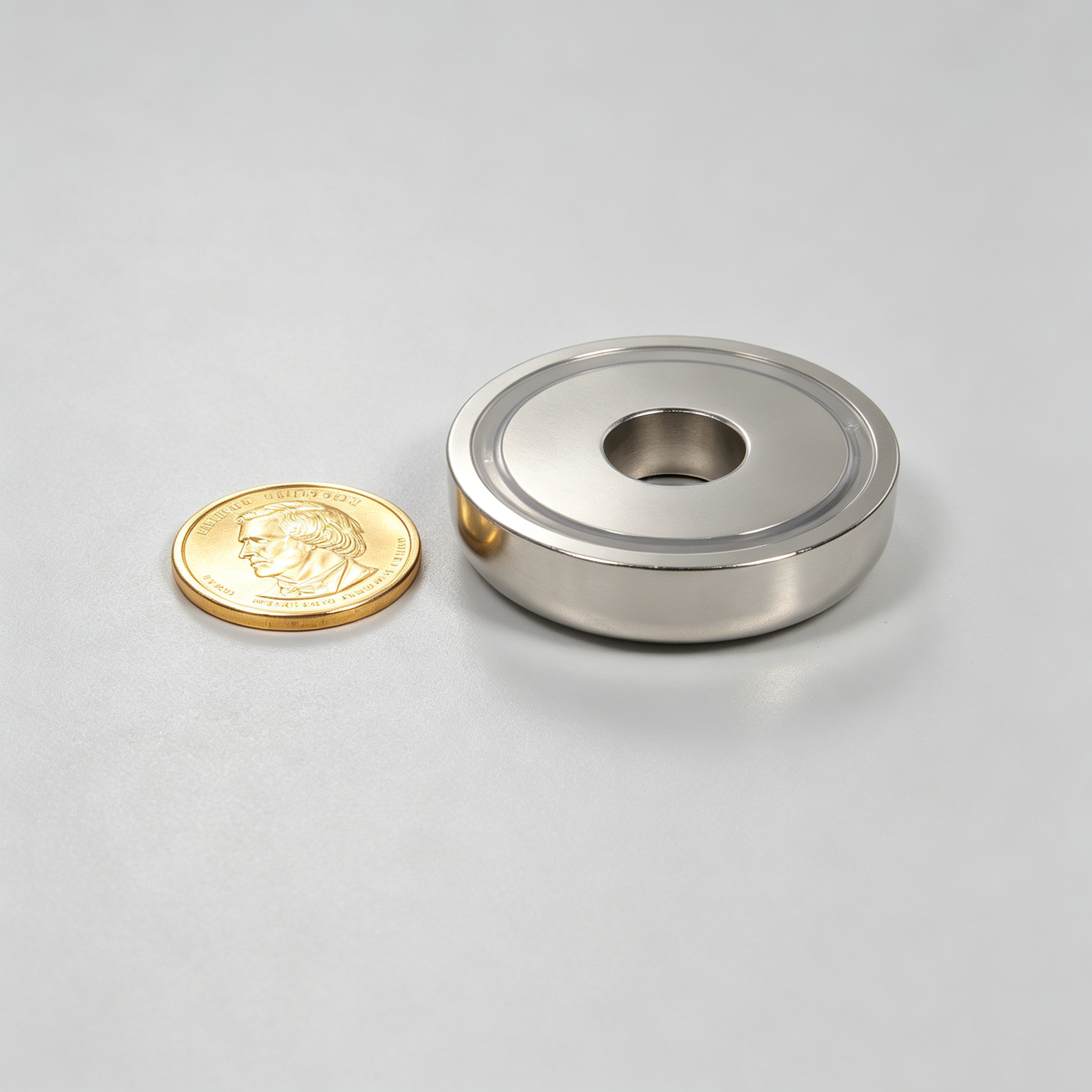

NdFeB Counterbore Pot Magnet 1.89“x0.433”

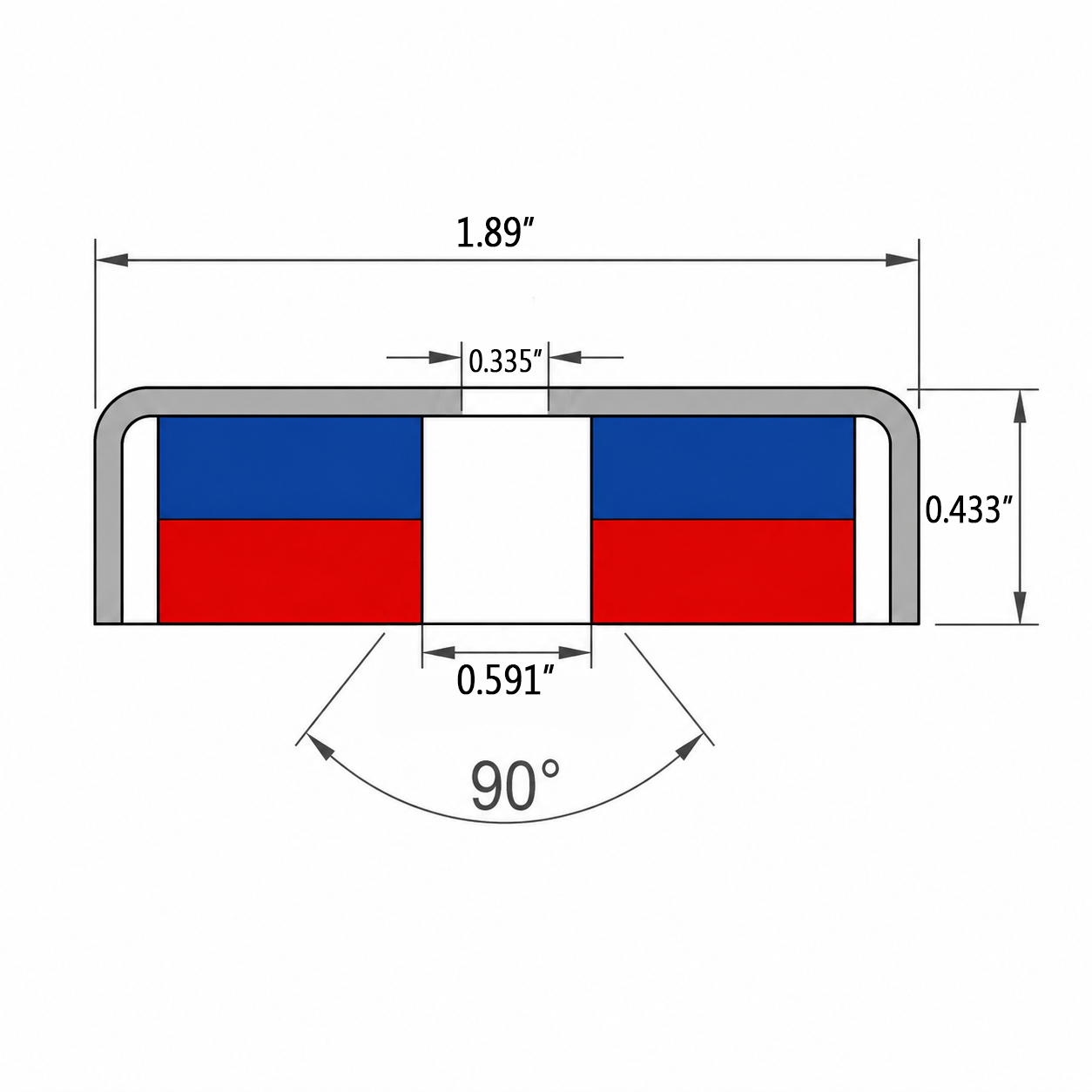

Technical Data

Material:NdFeB
Diameter:1.89 inch (48.0 mm)
Hole d1:0.335 inch (8.5 mm)
Countersinking d2:0.591 inch (15.0 mm)
Height:0.433 inch (11.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 5.01 oz (142 g)
Pull Force:approx. 165.35 lb (75 kgf)
Surface Gauss:approx. 2600 Gs
Max Operating Temp:176 F / 80℃

$24.080

each

20000 in stock

Quantity Price
1 - 49 $24.080
50 - 100 $24.080
101 - 200 $22.750
201 - 500 $21.410
501+ $21.410

NdFeB Counterbore Pot Magnet 1.89“x0.433”

Technical Data

Material:NdFeB
Diameter:1.89 Inch
Hole d1:0.335 Inch
Countersinking d2:0.591 Inch
Height:0.433 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 142 g
Power:approx 75 Kg
Surface Gauss:approx 2600 Gs
Max Operating Temp:176 F / 80℃

$24.080

each

20000 in stock

Quantity Price
1 - 49 $24.080
50 - 100 $24.080
101 - 200 $22.750
201 - 500 $21.410
501+ $21.410
