Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

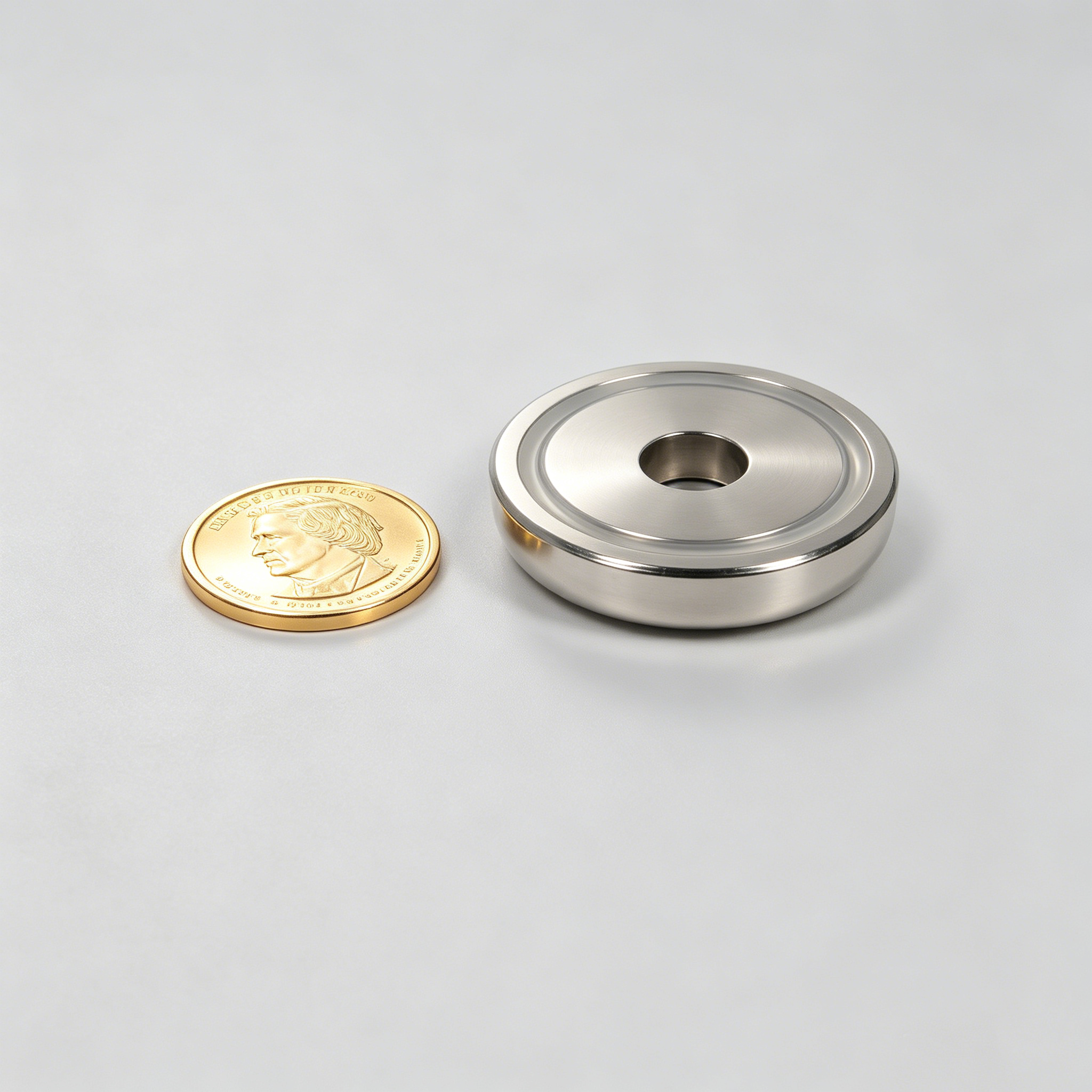

NdFeB Counterbore Pot Magnet 1.654“x0.315”

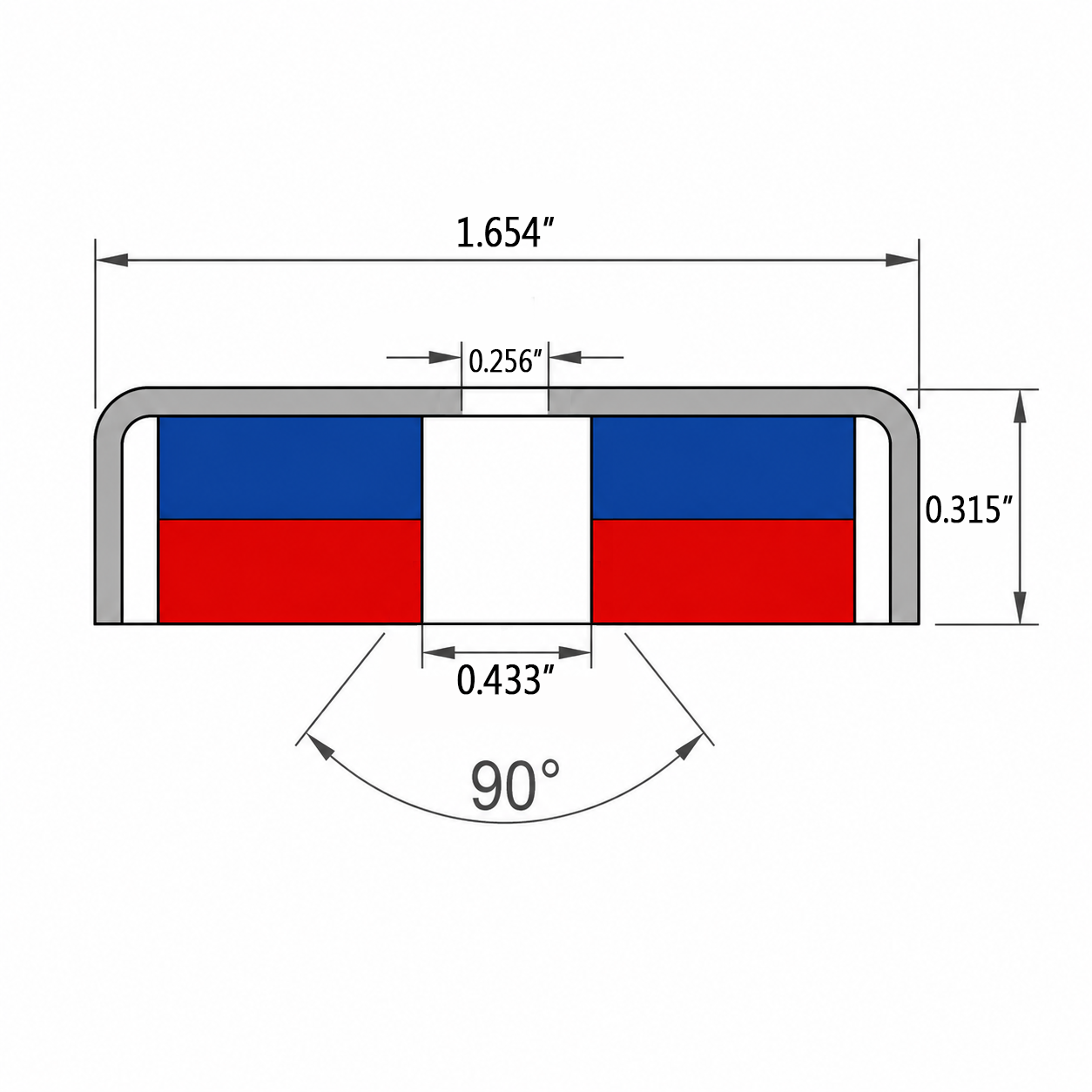

Technical Data

Material:NdFeB
Diameter:1.654 inch (42.0 mm)
Hole d1:0.256 inch (6.5 mm)
Countersinking d2:0.433 inch (11.0 mm)
Height:0.315 inch (8.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 2.86 oz (81 g)
Pull Force:approx. 79.37 lb (36 kgf)
Surface Gauss:approx. 2000 Gs
Max Operating Temp:176 F / 80℃

$10.970

each

20000 in stock

Quantity Price
1 - 49 $10.970
50 - 100 $10.970
101 - 200 $10.360
201 - 500 $9.750
501+ $9.750

NdFeB Counterbore Pot Magnet 1.654“x0.315”

Technical Data

Material:NdFeB
Diameter:1.654 Inch
Hole d1:0.256 Inch
Countersinking d2:0.433 Inch
Height:0.315 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 81 g
Power:approx 36 Kg
Surface Gauss:approx 2000 Gs
Max Operating Temp:176 F / 80℃

$10.970

each

20000 in stock

Quantity Price
1 - 49 $10.970
50 - 100 $10.970
101 - 200 $10.360
201 - 500 $9.750
501+ $9.750
