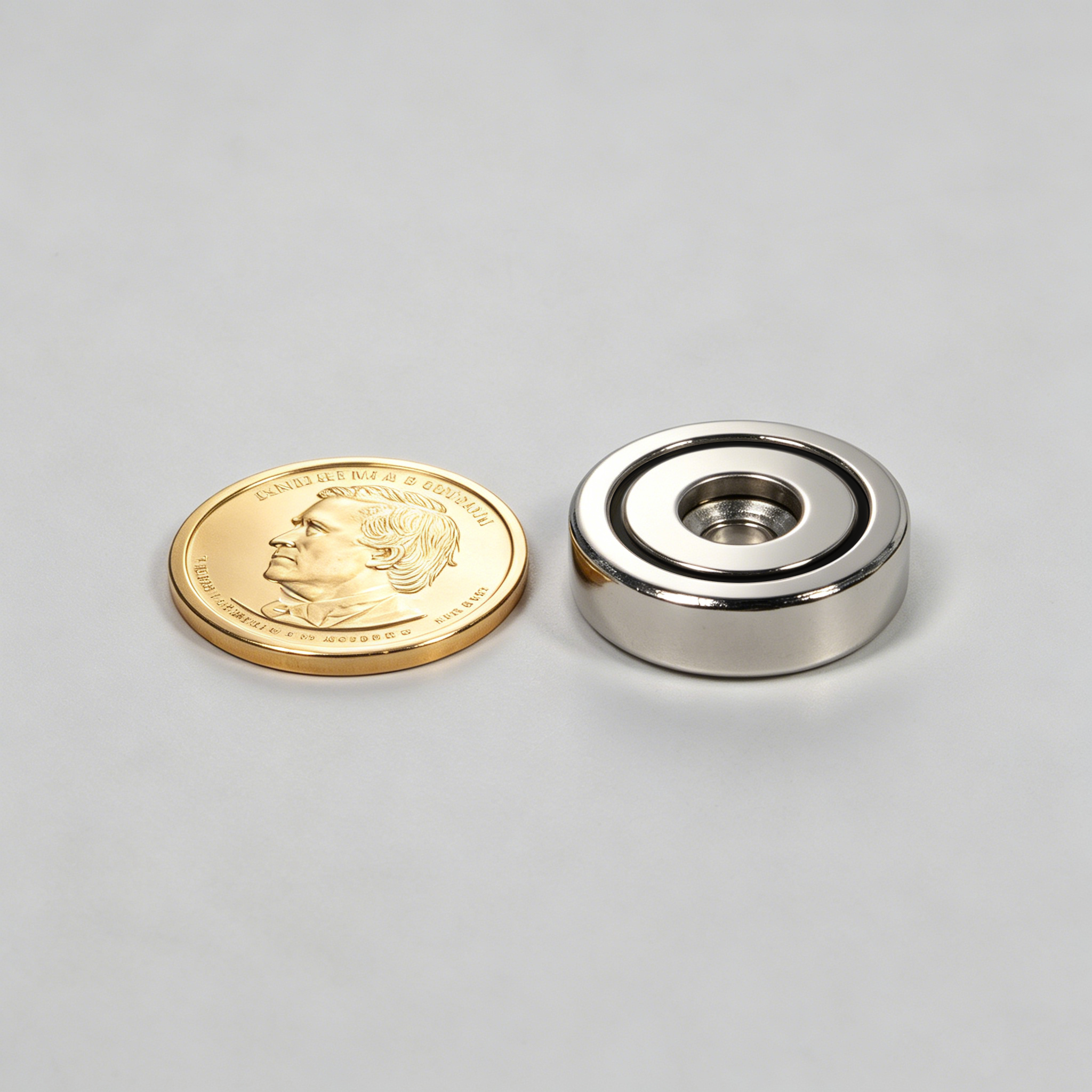

NdFeB Countersunk Pot Magnet 0.984“x0.276”-M5

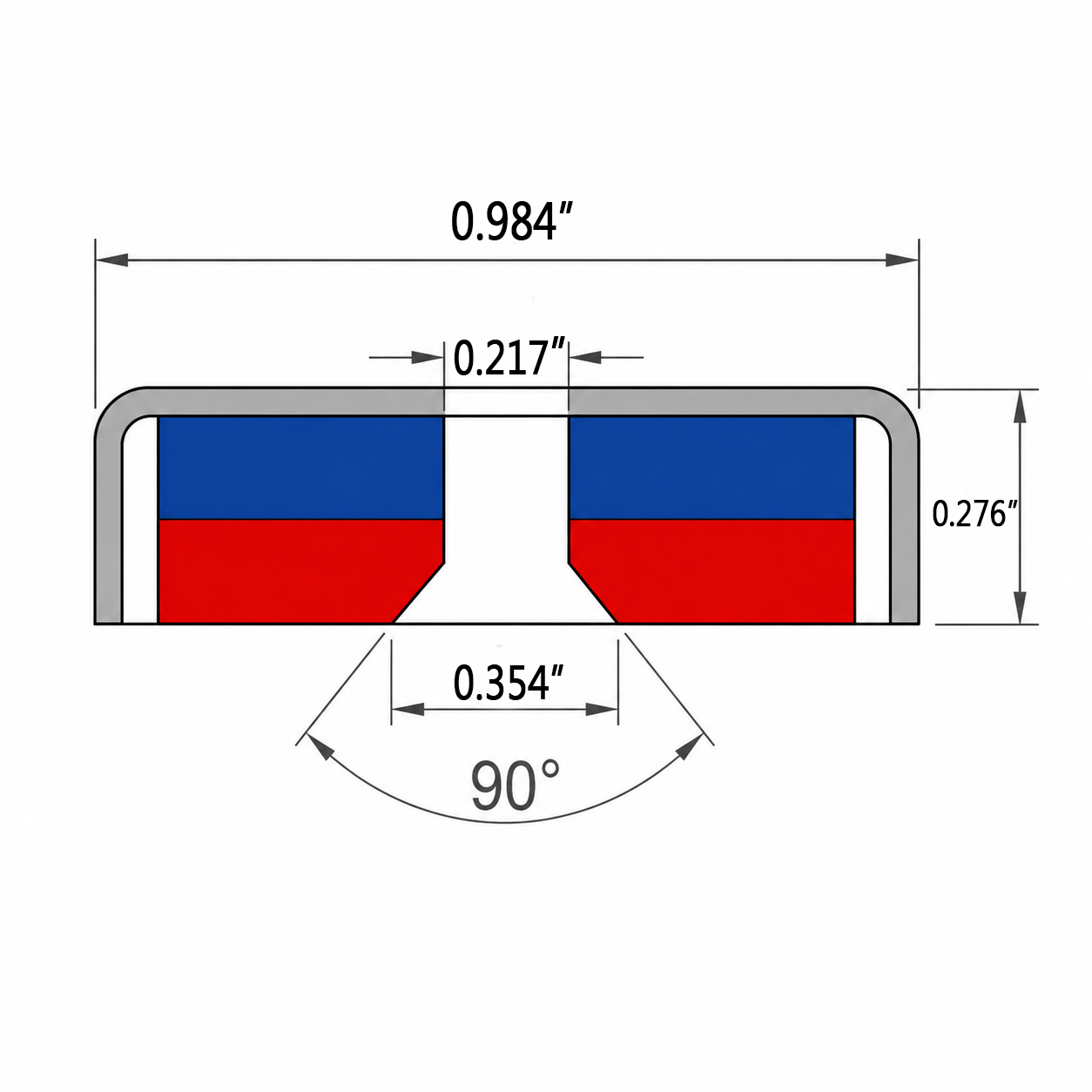

Technical Data

Material:NdFeB
Diameter:0.984 inch (25.0 mm)
Hole d1:0.217 inch (5.5 mm)
Countersinking d2:0.354 inch (9.0 mm)
Height:0.276 inch (7.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 0.653 oz (18.5 g)
Pull Force:approx. 22.05 lb (10 kgf)
Surface Gauss:approx. 2790 Gs
Max Operating Temp:176 F / 80℃

$4.370

each

20000 in stock

Quantity Price
1 - 49 $4.370
50 - 100 $4.370
101 - 200 $4.130
201 - 500 $3.890
501+ $3.890

NdFeB Countersunk Pot Magnet 0.984“x0.276”-M5

Technical Data

Material:NdFeB
Diameter:0.984 Inch
Hole d1:0.217 Inch
Countersinking d2:0.354 Inch
Height:0.276 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 18.5 g
Power:approx 10 Kg
Surface Gauss:approx 2790 Gs
Max Operating Temp:176 F / 80℃

$4.370

each

20000 in stock

Quantity Price
1 - 49 $4.370
50 - 100 $4.370
101 - 200 $4.130
201 - 500 $3.890
501+ $3.890
