Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

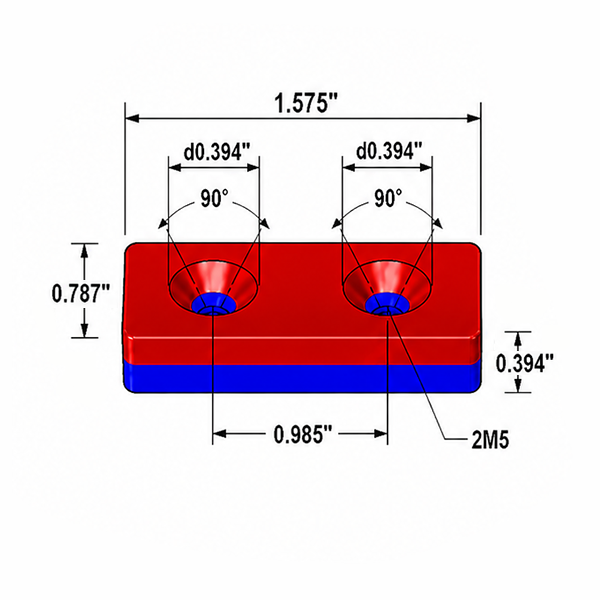

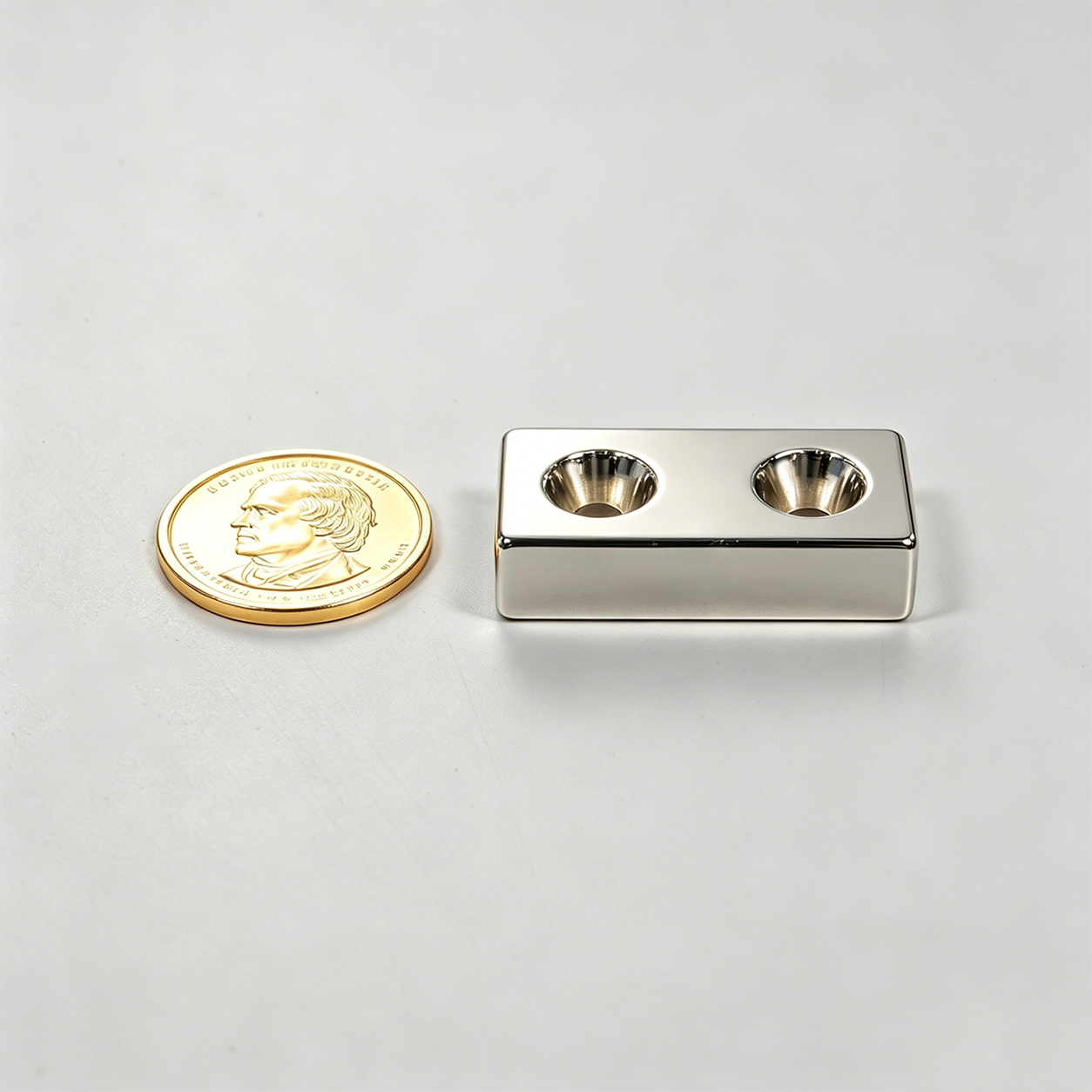

Countersunk Magnet 1.575″×0.787″×0.394″-2M5

Technical Data

Material:NdFeB
Length:1.575 inch (40.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.394 inch (10.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.62 oz (46 g)
Pull Force:approx. 18.63 lb (8.45 kgf)
Surface Gauss:approx. 1500 Gs
Max Operating Temp:176 F / 80℃

$2.500

each

20000 in stock

Quantity Price
1 - 49 $2.500
50 - 100 $2.500
101 - 200 $2.000
201 - 500 $1.500
501 - 1,000 $1.200
1,001+ $1.200

Countersunk Magnet 1.575″×0.787″×0.394″-2M5

Technical Data

Material:NdFeB
Length:1.575 Inch
Width:0.787 Inch
Thickness:0.394 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 46 g
Power:approx 8.45 Kg
Surface Gauss:approx 1500 Gs
Max Operating Temp:176 F / 80℃

$2.500

each

20000 in stock

Quantity Price
1 - 49 $2.500
50 - 100 $2.500
101 - 200 $2.000
201 - 500 $1.500
501 - 1,000 $1.200
1,001+ $1.200
