Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

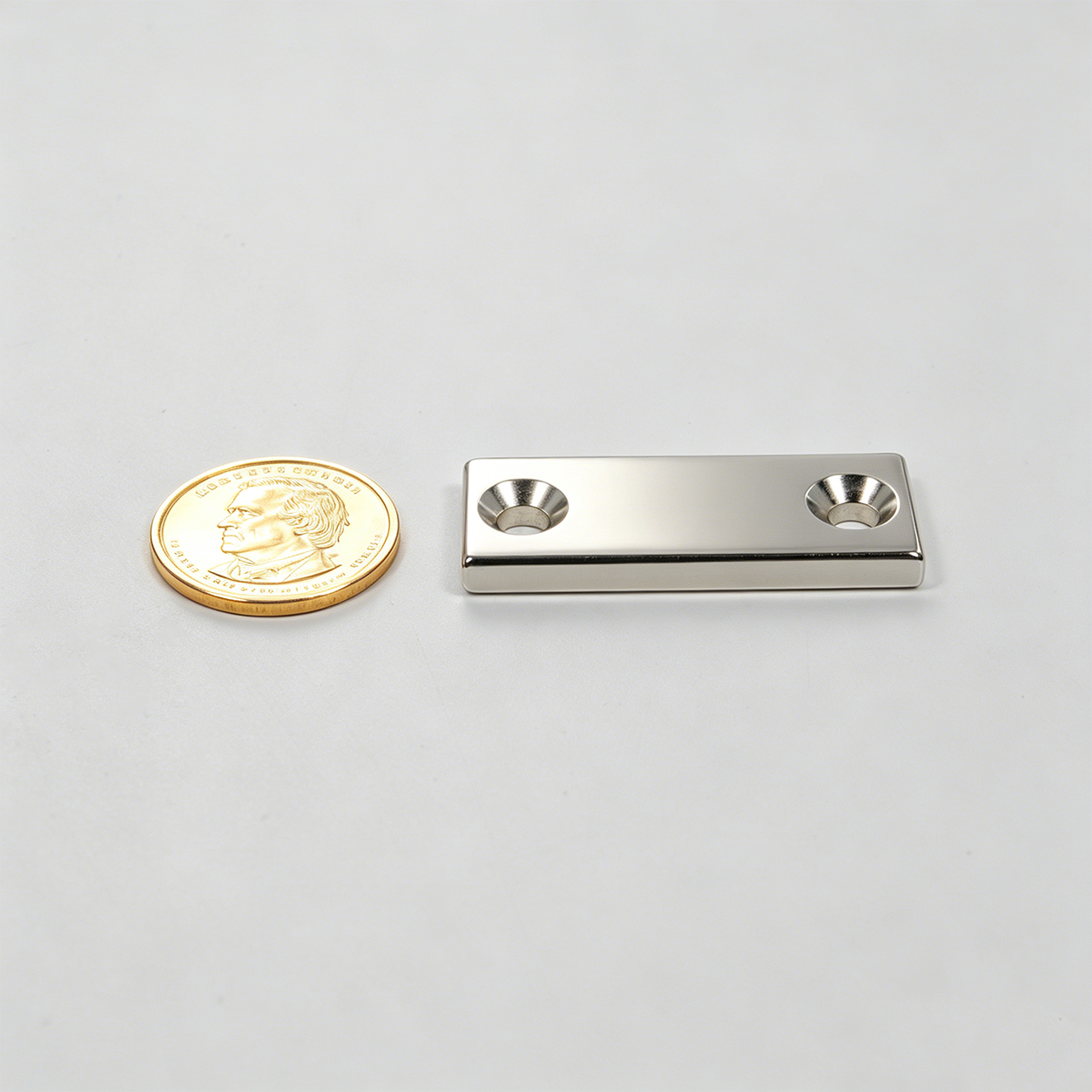

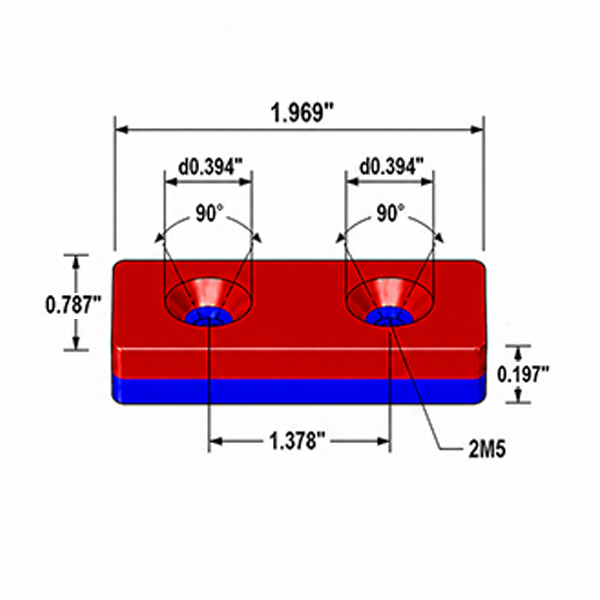

Countersunk Magnet 1.969″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:1.969 inch (50.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 0.97 oz (27.5 g)
Pull Force:approx. 18.34 lb (8.32 kgf)
Surface Gauss:approx. 800 Gs
Max Operating Temp:176 F / 80℃

$1.650

each

20000 in stock

Quantity Price
1 - 49 $1.650
50 - 100 $1.650
101 - 200 $1.160
201 - 500 $0.880
501 - 1,000 $0.750
1,001+ $0.750

Countersunk Magnet 1.969″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:1.969 Inch
Width:0.787 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 27.5 g
Power:approx 8.32 Kg
Surface Gauss:approx 800 Gs
Max Operating Temp:176 F / 80℃

$1.650

each

20000 in stock

Quantity Price
1 - 49 $1.650
50 - 100 $1.650
101 - 200 $1.160
201 - 500 $0.880
501 - 1,000 $0.750
1,001+ $0.750
