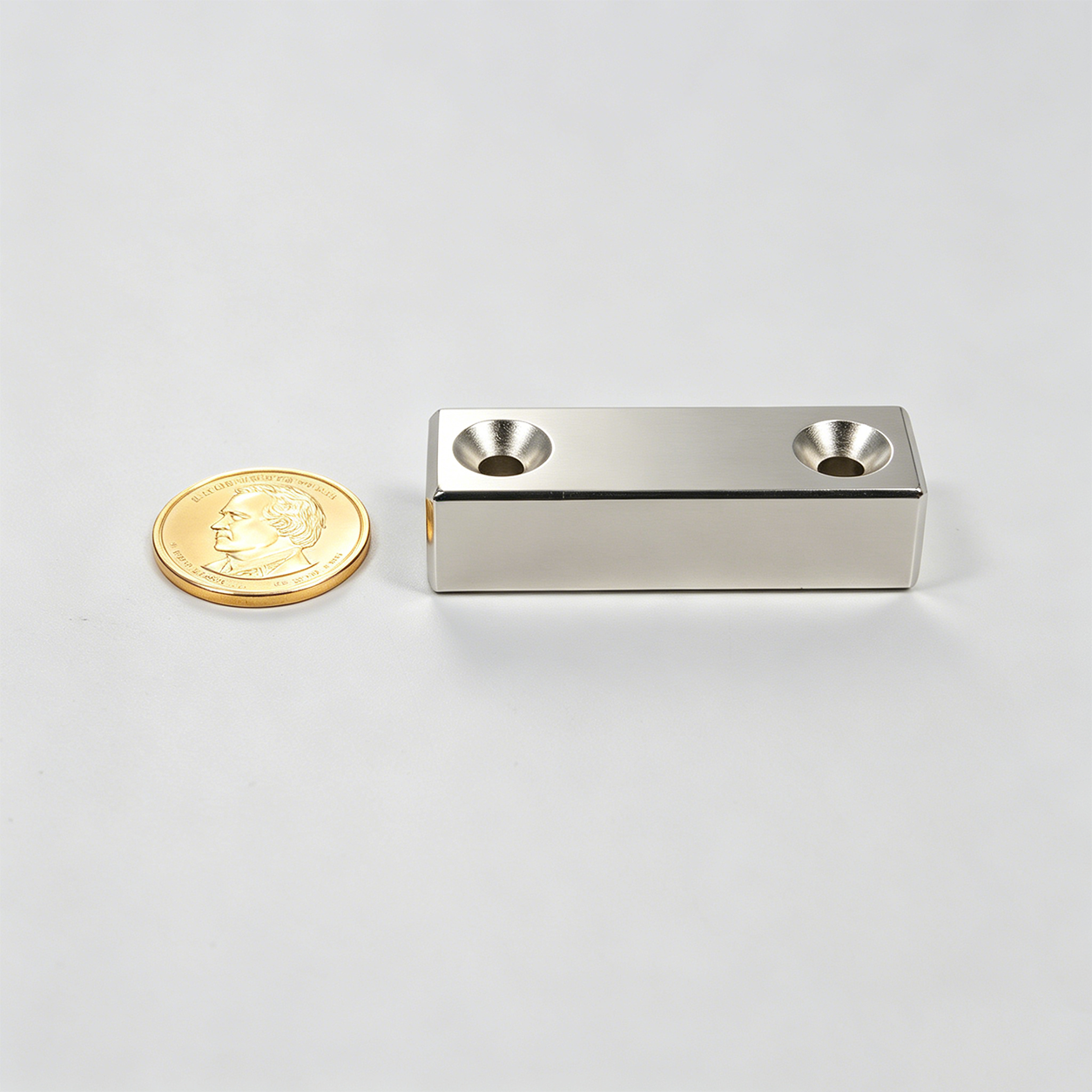

Countersunk Magnet 2.362″×0.787″×0.591″-2M5

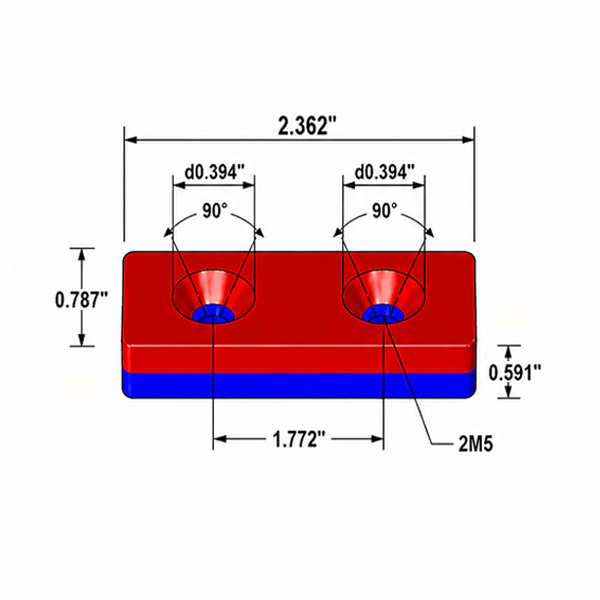

Technical Data

Material:NdFeB
Length:2.362 inch (60.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.591 inch (15.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 3.53 oz (100 g)
Pull Force:approx. 33.07 lb (15 kgf)
Surface Gauss:approx. 2500 Gs
Max Operating Temp:176 F / 80℃

$6.600

each

20000 in stock

Quantity Price
1 - 49 $6.600
50 - 100 $6.600
101 - 200 $4.700
201 - 500 $3.300
501 - 1,000 $2.500
1,001+ $2.500
