Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

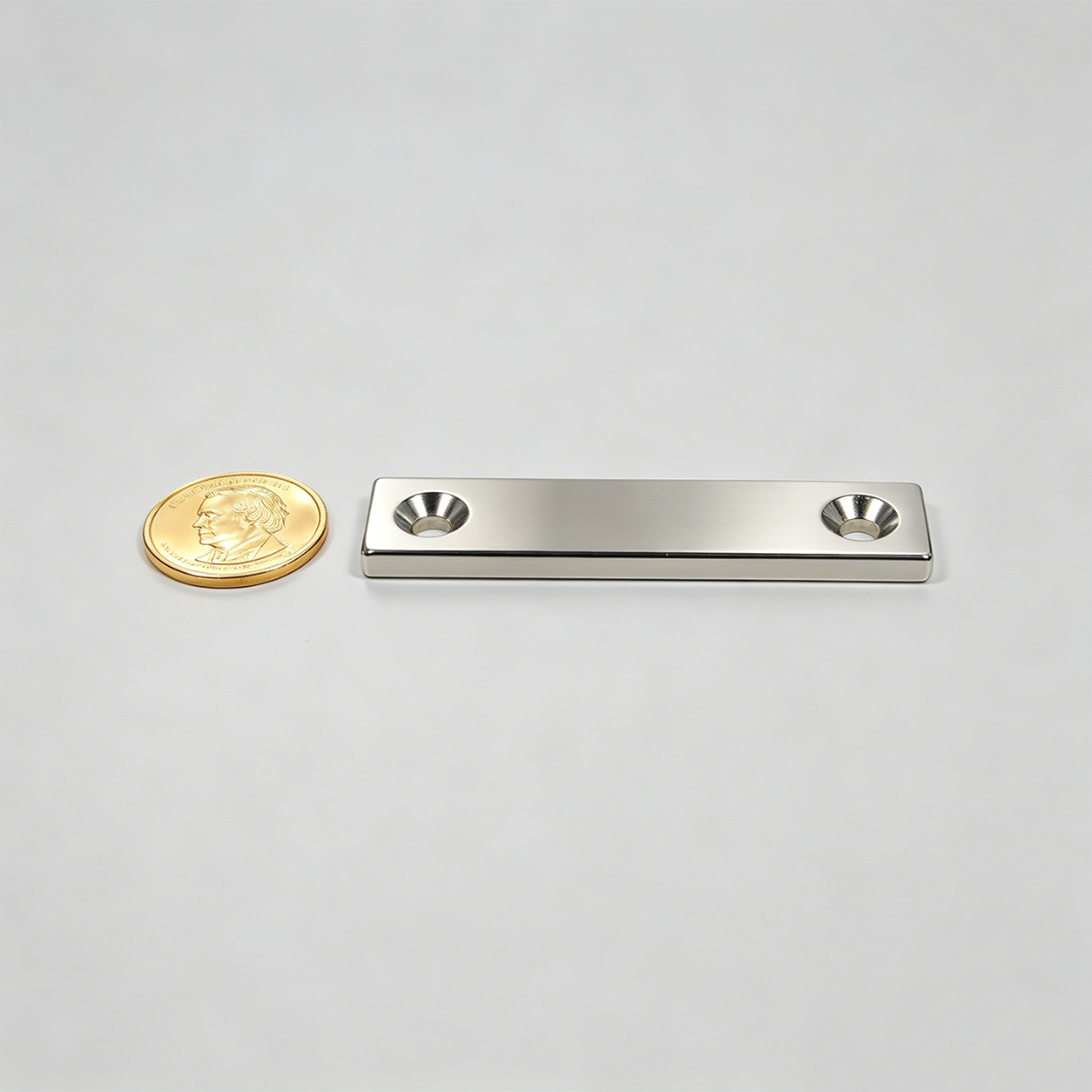

Countersunk Magnet 3.150″×0.787″×0.197″-2M5

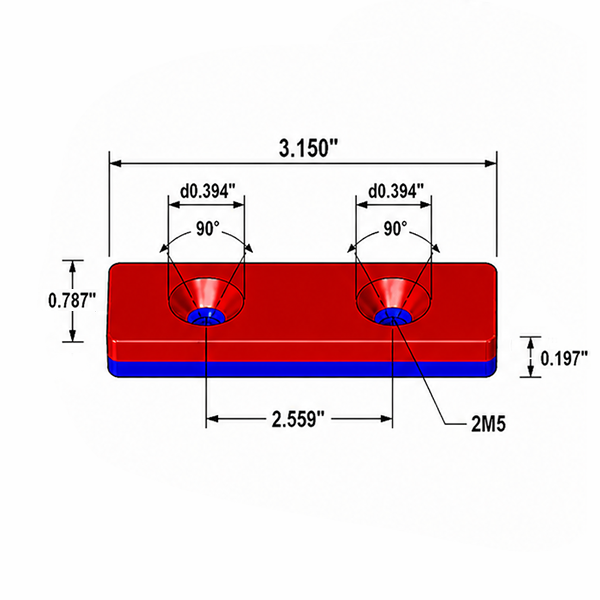

Technical Data

Material:NdFeB
Length:3.15 inch (80.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 1.55 oz (44 g)
Pull Force:approx. 35.27 lb (16 kgf)
Surface Gauss:approx. 700 Gs
Max Operating Temp:176 F / 80℃

$2.700

each

20000 in stock

Quantity Price
1 - 49 $2.700
50 - 100 $2.700
101 - 200 $2.100
201 - 500 $1.600
501 - 1,000 $1.250
1,001+ $1.250

Countersunk Magnet 3.150″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:3.15 Inch
Width:0.787 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.08 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 44 g
Power:approx 16 Kg
Surface Gauss:approx 700 Gs
Max Operating Temp:176 F / 80℃

$2.700

each

20000 in stock

Quantity Price
1 - 49 $2.700
50 - 100 $2.700
101 - 200 $2.100
201 - 500 $1.600
501 - 1,000 $1.250
1,001+ $1.250
