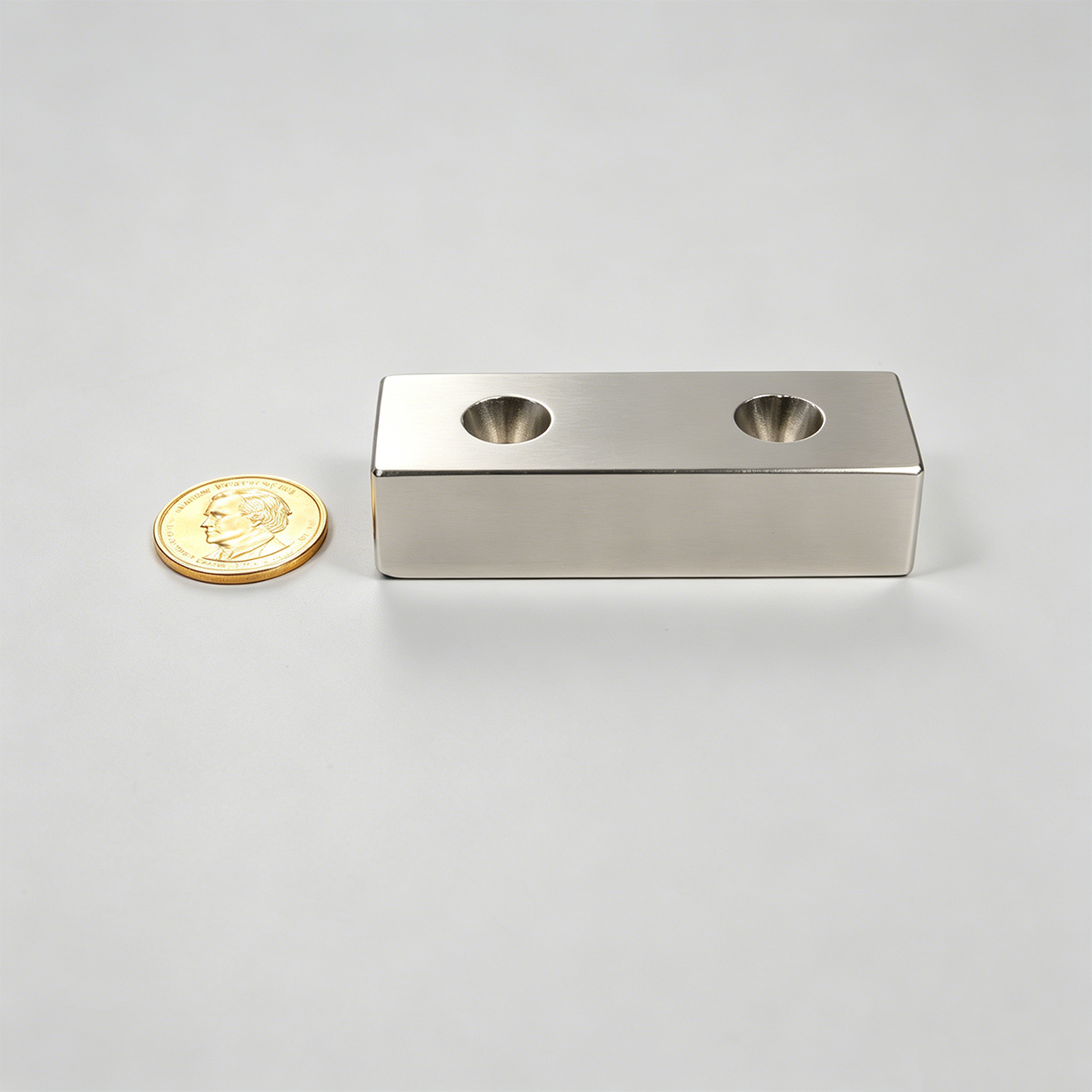

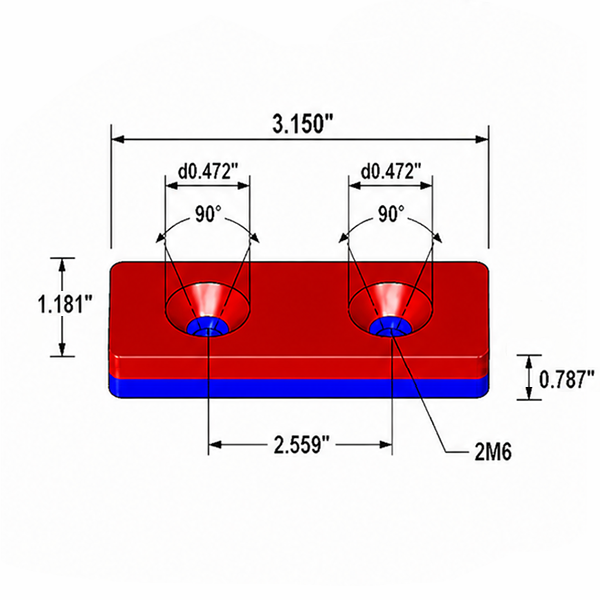

Countersunk Magnet 3.150″×1.181″×0.787″-2M6

Technical Data

Material:NdFeB
Length:3.15 inch (80.0 mm)
Width:1.181 inch (30.0 mm)
Thickness:0.787 inch (20.0 mm)
Tolerance:+/- 0.08 inch (+/- 2.0 mm)
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 10.58 oz (300 g)
Pull Force:approx. 39.68 lb (18 kgf)
Surface Gauss:approx. 2500 Gs
Max Operating Temp:176 F / 80℃

$30.000

each

20000 in stock

Quantity Price
1 - 19 $30.000
20 - 50 $30.000
51 - 100 $20.000
101 - 200 $14.000
201 - 500 $9.000
501+ $9.000

Countersunk Magnet 3.150″×1.181″×0.787″-2M6

Technical Data

Material:NdFeB
Length:3.15 Inch
Width:1.181 Inch
Thickness:0.787 Inch
Tolerance:+/- 0.08 Inch
M:M6(d0.256/0.472 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 300 g
Power:approx 18 Kg
Surface Gauss:approx 2500 Gs
Max Operating Temp:176 F / 80℃

$30.000

each

20000 in stock

Quantity Price
1 - 19 $30.000
20 - 50 $30.000
51 - 100 $20.000
101 - 200 $14.000
201 - 500 $9.000
501+ $9.000
