Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

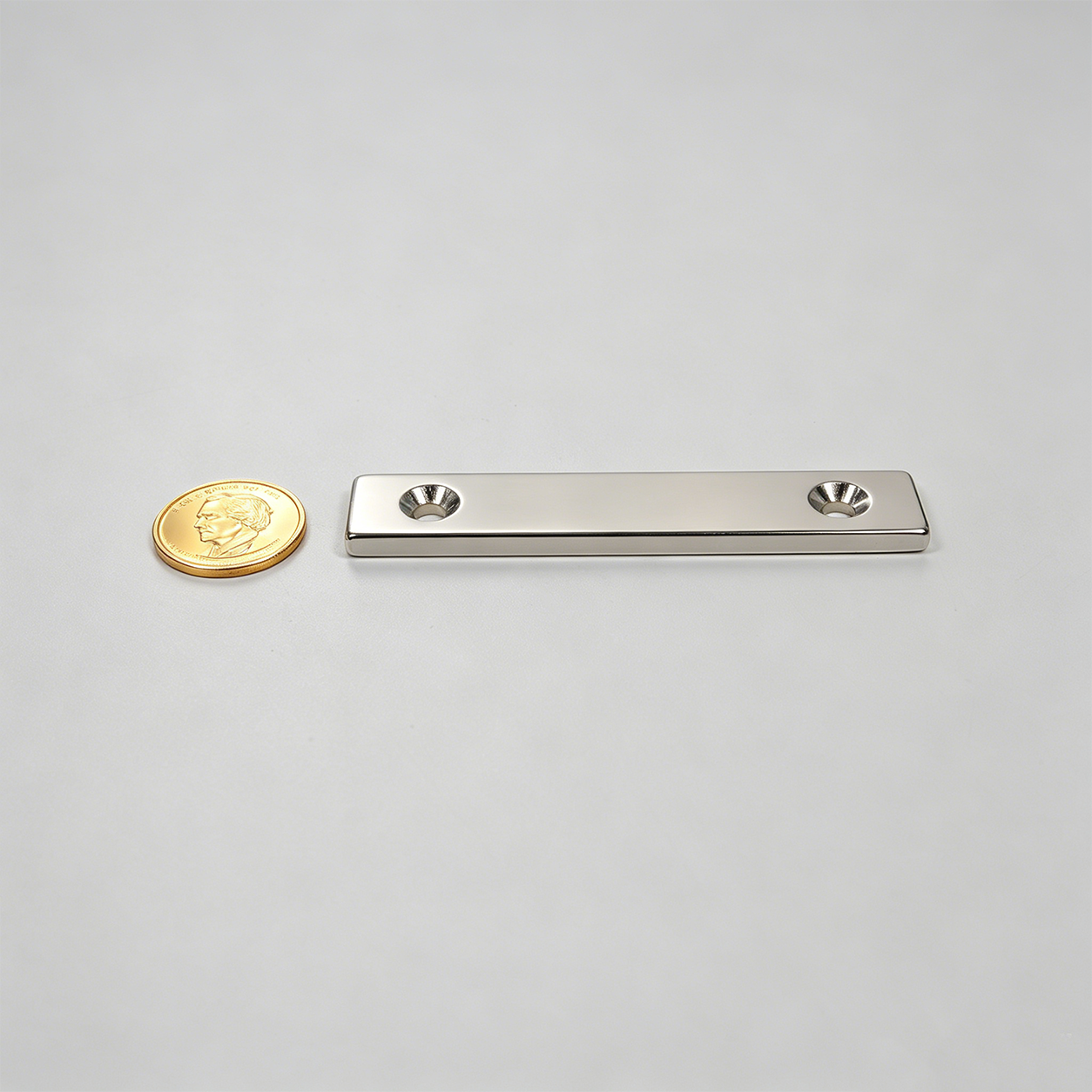

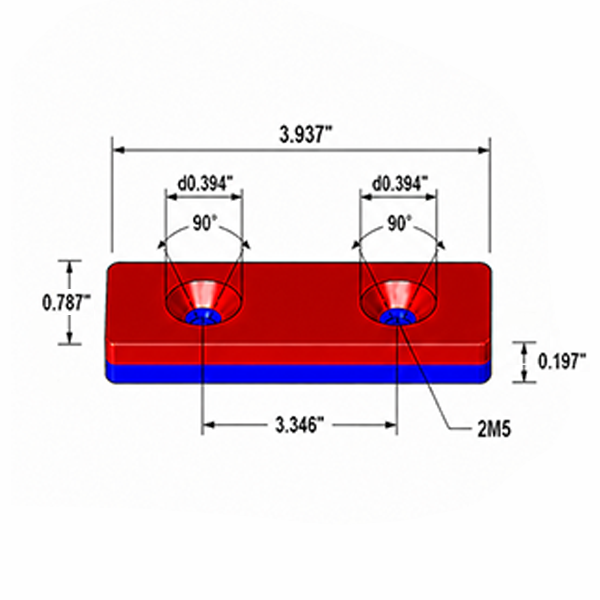

Countersunk Magnet 3.937″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:3.937 inch (100.0 mm)
Width:0.787 inch (20.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 2.12 oz (60 g)
Pull Force:approx. 44.09 lb (20 kgf)
Surface Gauss:approx. 700 Gs
Max Operating Temp:176 F / 80℃

$3.500

each

20000 in stock

Quantity Price
1 - 49 $3.500
50 - 100 $3.500
101 - 200 $2.500
201 - 500 $2.000
501 - 1,000 $1.600
1,001+ $1.600

Countersunk Magnet 3.937″×0.787″×0.197″-2M5

Technical Data

Material:NdFeB
Length:3.937 Inch
Width:0.787 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.12 Inch
M:M5(d0.217/0.394x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 60 g
Power:approx 20 Kg
Surface Gauss:approx 700 Gs
Max Operating Temp:176 F / 80℃

$3.500

each

20000 in stock

Quantity Price
1 - 49 $3.500
50 - 100 $3.500
101 - 200 $2.500
201 - 500 $2.000
501 - 1,000 $1.600
1,001+ $1.600
