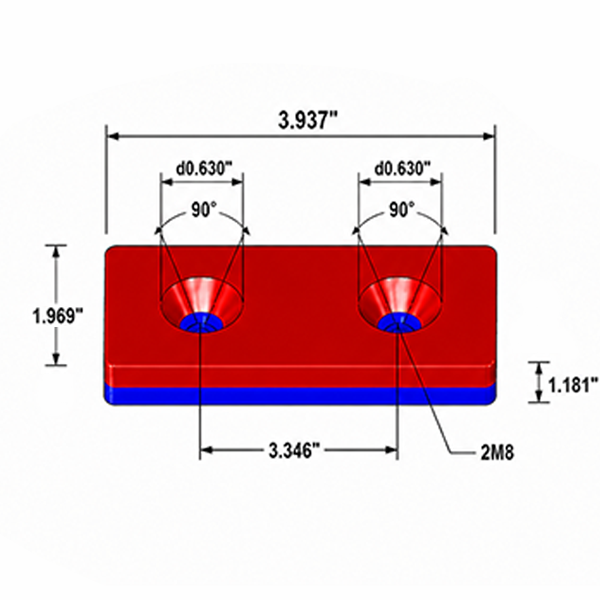

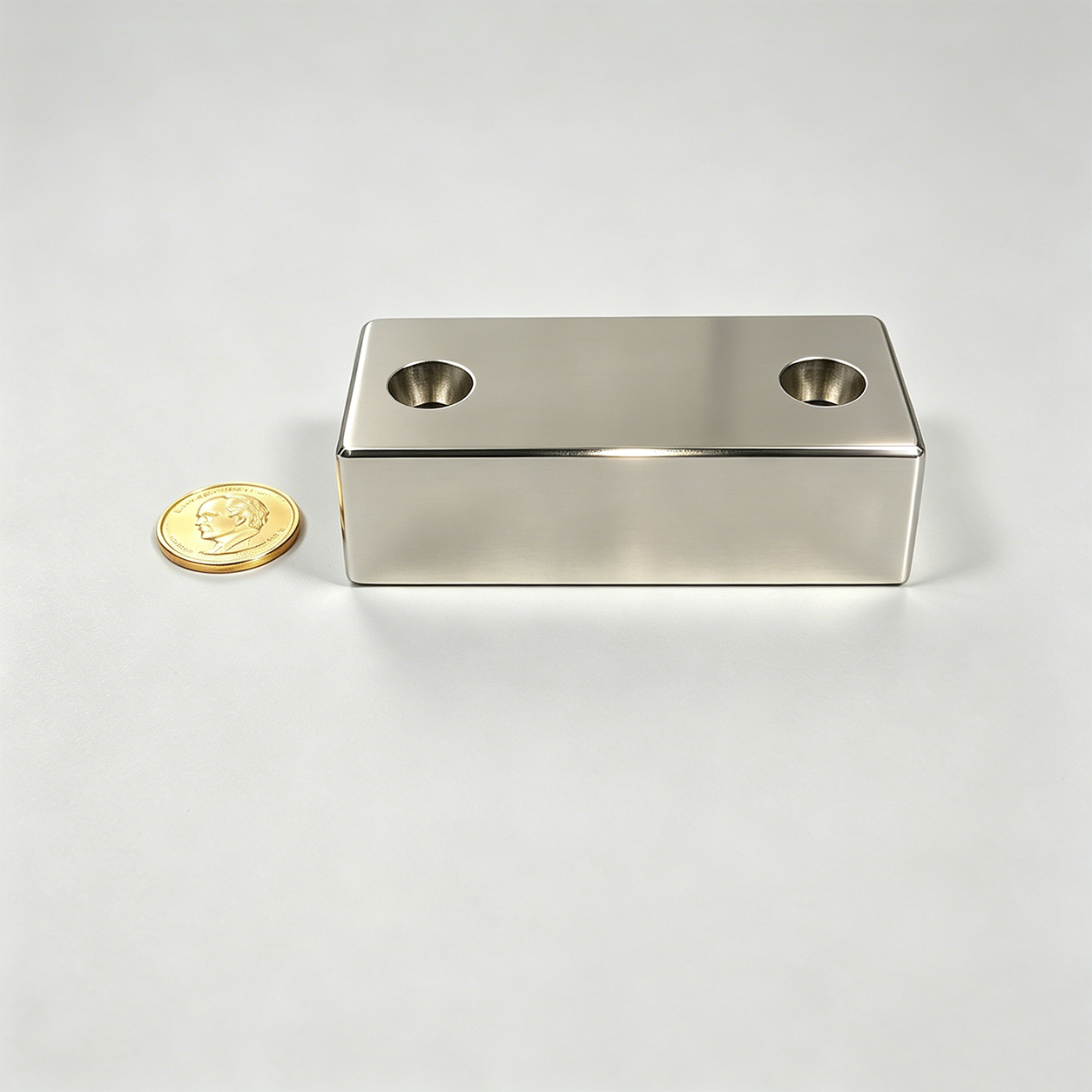

Countersunk Magnet 3.937″×1.969″×1.181″–2M8

Technical Data

Material:NdFeB
Length:3.937 inch (100.0 mm)
Width:1.969 inch (50.0 mm)
Thickness:1.181 inch (30.0 mm)
Tolerance:+/- 0.12 inch (+/- 3.0 mm)
M:M8(d0.335/0.63 x 90°)
Magnetization:Axial
Coating:Ni-Cu-Ni
Weight:approx. 33.55 oz (951 g)
Pull Force:approx. 48.5 lb (22 kgf)
Surface Gauss:approx. 1500 Gs
Max Operating Temp:176 F / 80℃

$100.000

each

20000 in stock

Quantity Price
1 - 19 $100.000
20 - 50 $100.000
51 - 100 $60.000
101 - 200 $45.000
201 - 500 $35.000
501+ $35.000

Countersunk Magnet 3.937″×1.969″×1.181″–2M8

Technical Data

Material:NdFeB
Length:3.937 Inch
Width:1.969 Inch
Thickness:1.181 Inch
Tolerance:+/- 0.12 Inch
M:M8(d0.335/0.63 x 90°)
Magnetization:Axial
Plating:Ni-Cu-Ni
Weight:approx 951 g
Power:approx 22 Kg
Surface Gauss:approx 1500 Gs
Max Operating Temp:176 F / 80℃

$100.000

each

20000 in stock

Quantity Price
1 - 19 $100.000
20 - 50 $100.000
51 - 100 $60.000
101 - 200 $45.000
201 - 500 $35.000
501+ $35.000
