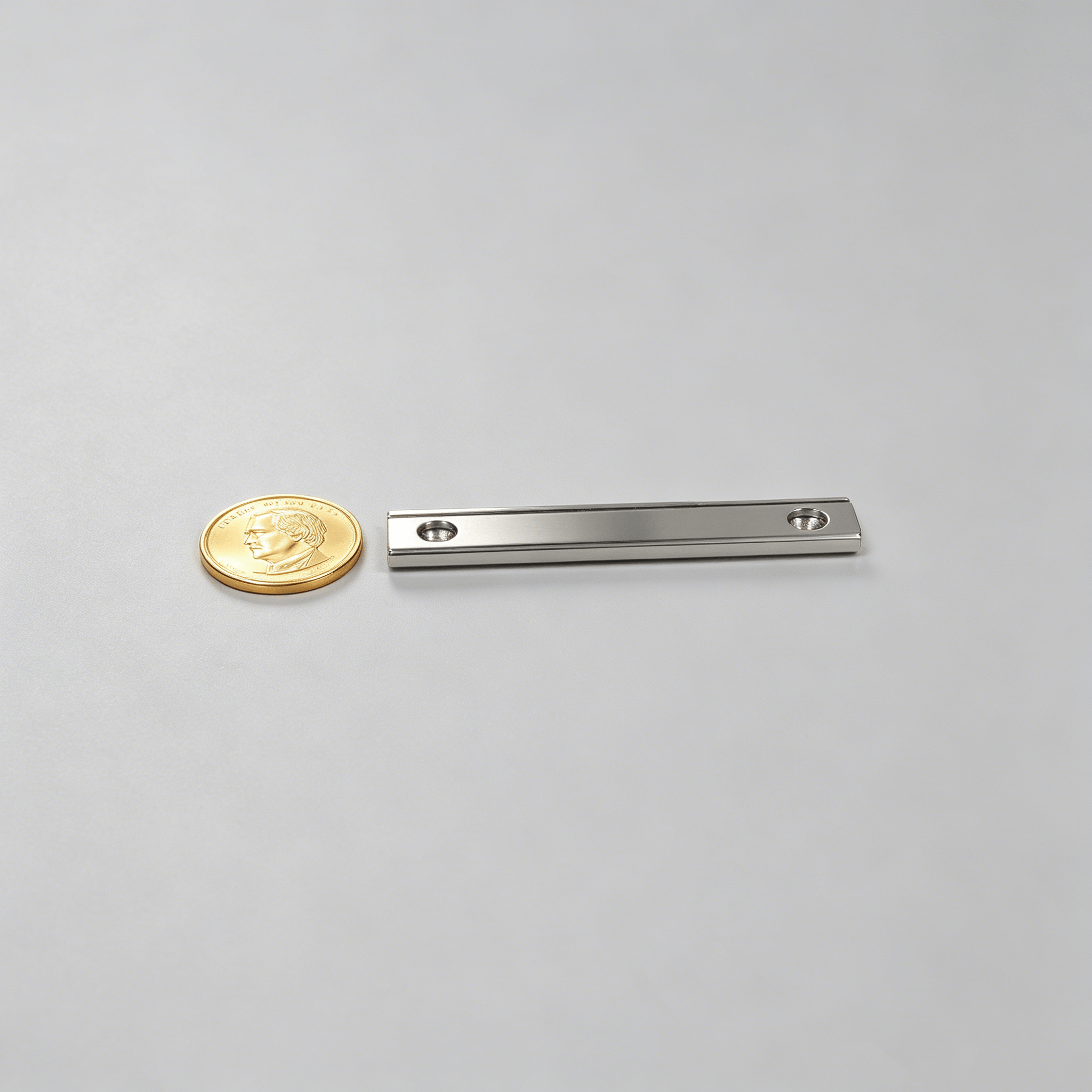

NdFeB Channel Magnet 3″× 0.5″- 2M3

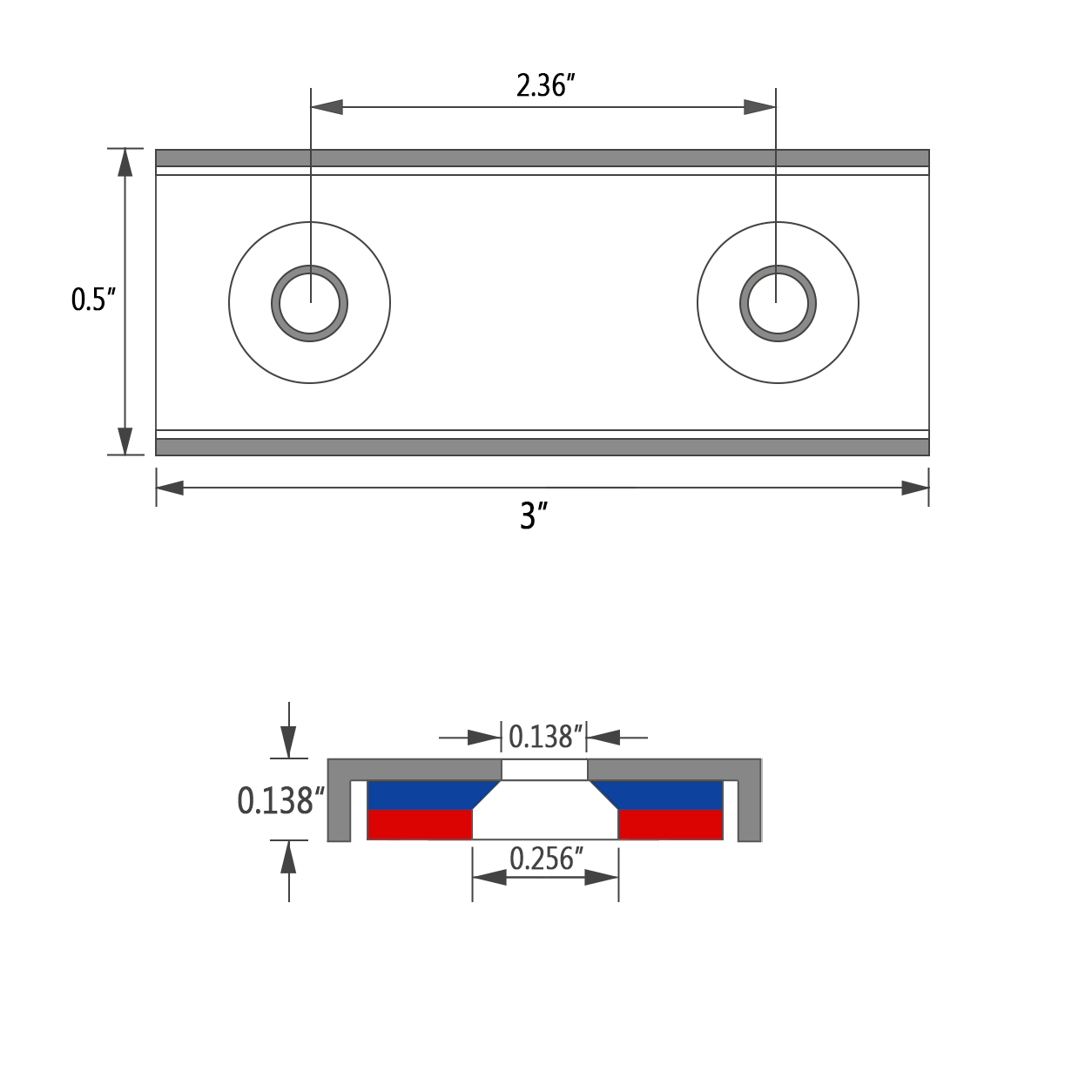

Technical Data

Material:NdFeB
Length:3 inch (76.2 mm)
Width:0.5 inch (12.7 mm)
Thickness:0.138 inch (3.5 mm)
Distance:2.36 inch (59.9 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M3(d0.138/0.256)
Magnetization:Axial
Coating:Ni
Weight:approx. 0.818 oz (23.2 g)
Pull Force:approx. 61.95 lb (28.1 kgf)
Surface Gauss:approx. 2003 Gs
Max Operating Temp:176 F / 80℃

$1.600

each

20000 in stock

Quantity Price
1 - 99 $1.600
100 - 200 $1.600
201 - 500 $1.300
501 - 1,000 $0.999
1,001+ $0.999

NdFeB Channel Magnet 3″× 0.5″- 2M3

Technical Data

Material:NdFeB
Length:3 Inch
Width:0.5 Inch
Thickness:0.138 Inch
Distance:2.36 Inch
Tolerance:+/- 0.02 Inch
M:M3(d0.138/0.256)
Magnetization:Axial
Plating:Ni
Weight:approx 23.2 g
Power:approx 28.1 Kg
Surface Gauss:approx 2003 Gs
Max Operating Temp:176 F / 80℃

$1.600

each

20000 in stock

Quantity Price
1 - 99 $1.600
100 - 200 $1.600
201 - 500 $1.300
501 - 1,000 $0.999
1,001+ $0.999
