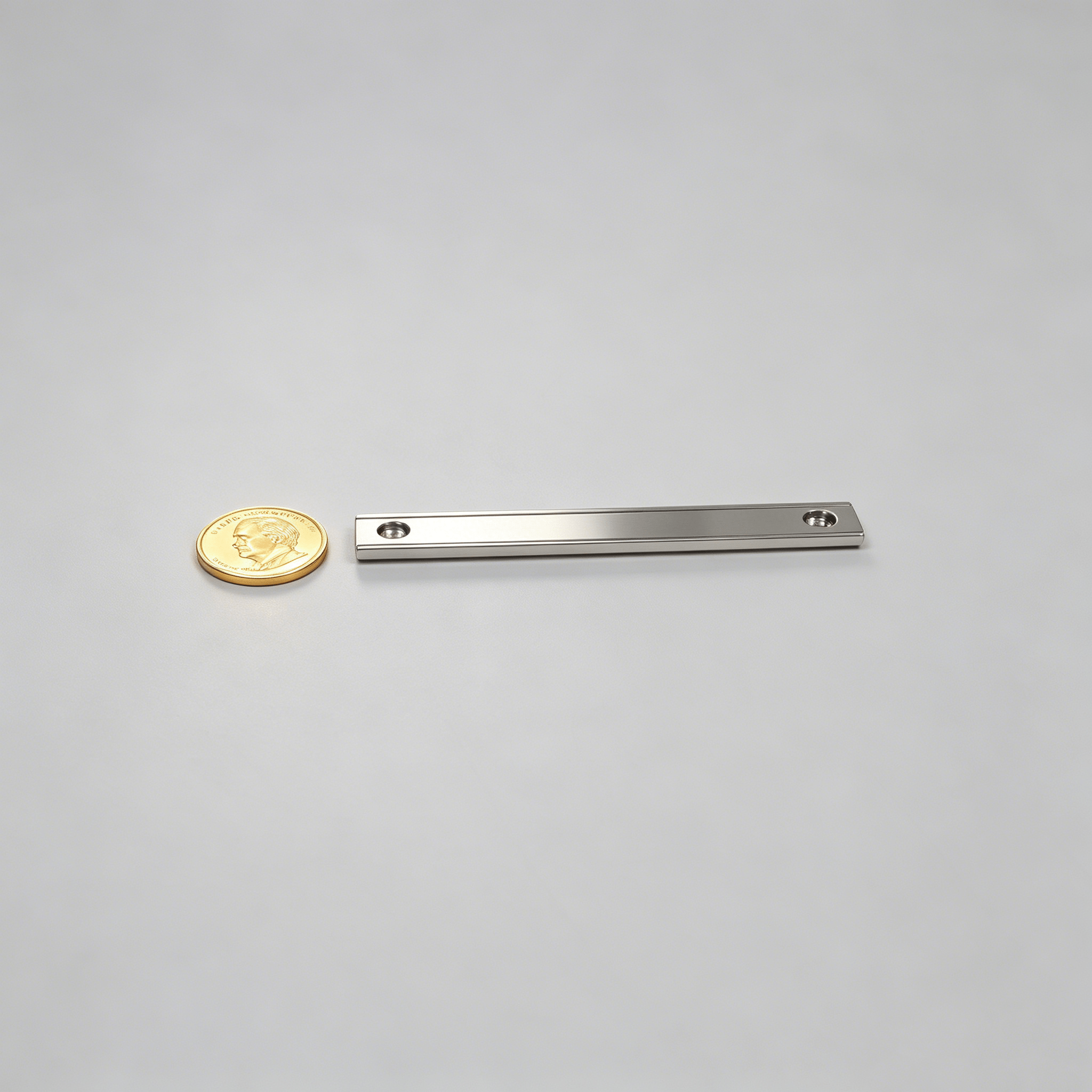

NdFeB Channel Magnet 4”× 0.5“- 2M3

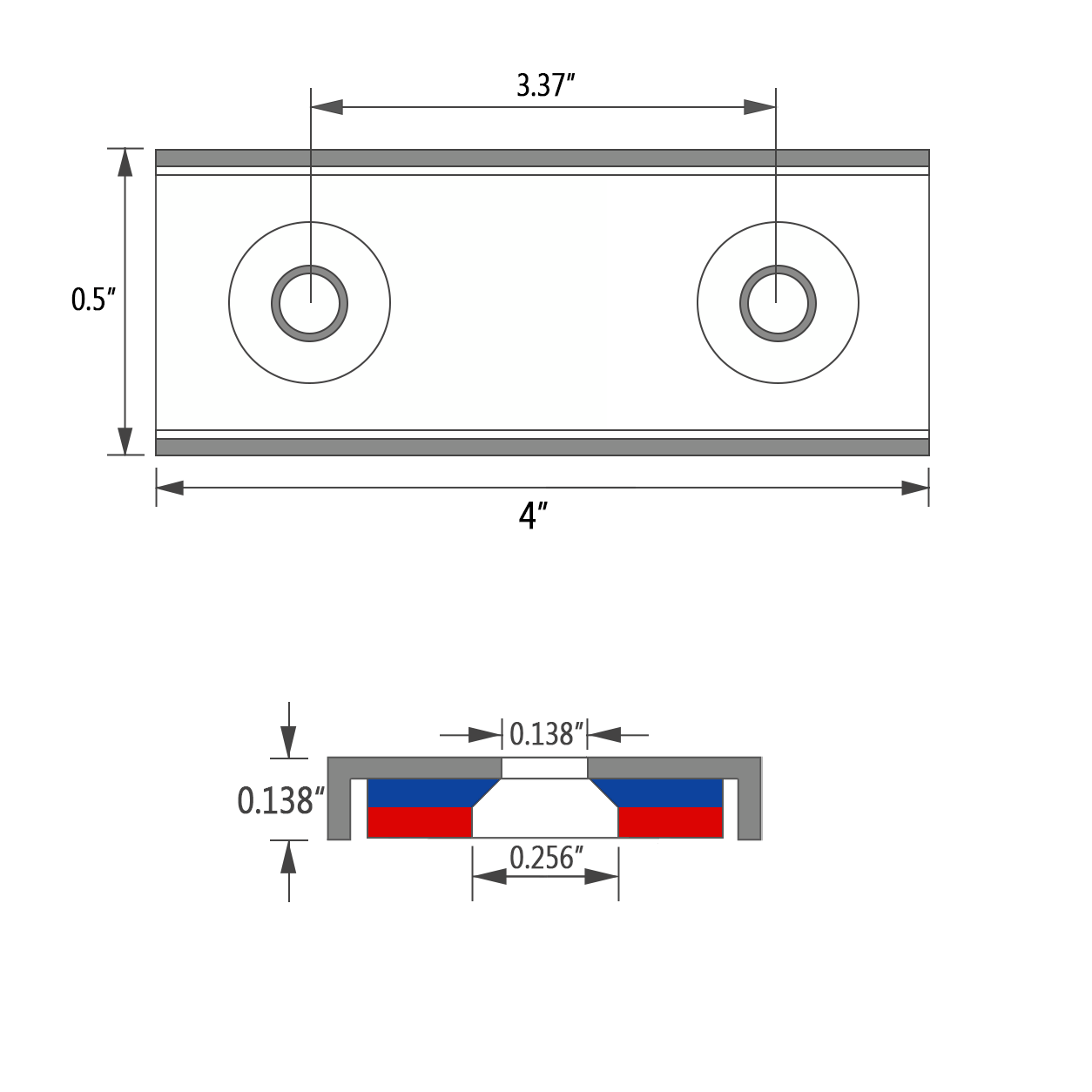

Technical Data

Material:NdFeB
Length:4 inch (101.6 mm)
Width:0.5 inch (12.7 mm)
Thickness:0.138 inch (3.5 mm)
Distance:3.37 inch (85.6 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M3(d0.138/0.256)
Magnetization:Axial
Coating:Ni
Weight:approx. 1.13 oz (32 g)
Pull Force:approx. 68.34 lb (31 kgf)
Surface Gauss:approx. 2060 Gs
Max Operating Temp:176 F / 80℃

$2.990

each

20000 in stock

Quantity Price
1 - 49 $2.990
50 - 100 $2.990
101 - 200 $1.990
201 - 500 $1.490
501+ $1.490

NdFeB Channel Magnet 4”× 0.5“- 2M3

Technical Data

Material:NdFeB
Length:4 Inch
Width:0.5 Inch
Thickness:0.138 Inch
Distance:3.37 Inch
Tolerance:+/- 0.02 Inch
M:M3(d0.138/0.256)
Magnetization:Axial
Plating:Ni
Weight:approx 32 g
Power:approx 31 Kg
Surface Gauss:approx 2060 Gs
Max Operating Temp:176 F / 80℃

$2.990

each

20000 in stock

Quantity Price
1 - 49 $2.990
50 - 100 $2.990
101 - 200 $1.990
201 - 500 $1.490
501+ $1.490
