Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

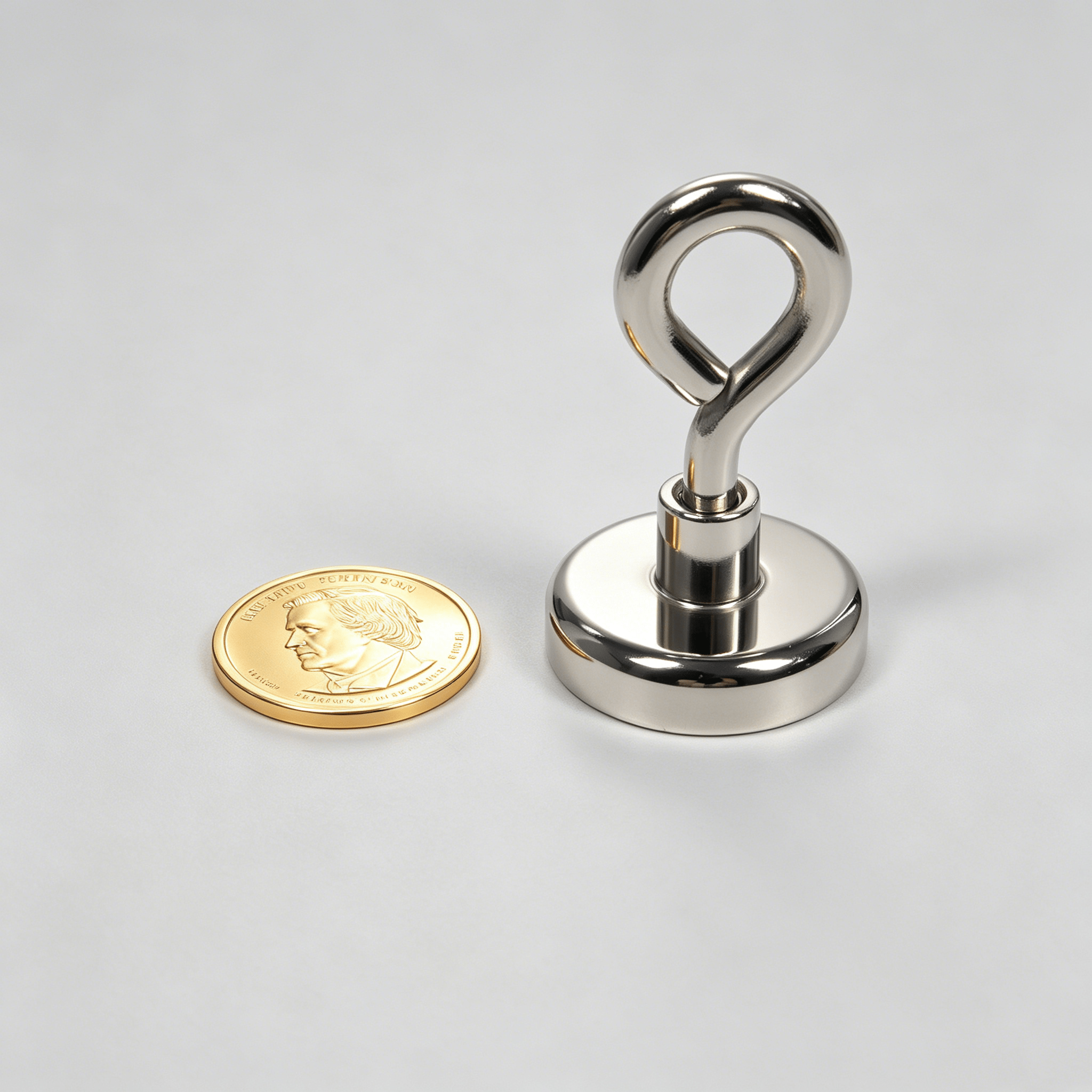

Eye Bolt Magnet 1.26“×0.276”

Technical Data

Material:NdFeB
Diameter:1.26 inch (32.0 mm)
Height:1.89 inch (48.0 mm)
Thickness:0.276 inch (7.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M6x8(0.236x0.315)
Magnetization:Axial
Coating:Ni
Weight:approx. 1.76 oz (50 g)
Pull Force:approx. 44.09 lb (20 kgf)
Surface Gauss:approx. 1200 Gs
Max Operating Temp:176 F / 80℃

$1.100

each

20000 in stock

Quantity Price
1 - 99 $1.100
100 - 200 $1.100
201 - 500 $0.799
501 - 1,000 $0.699
1,001+ $0.699

Eye Bolt Magnet 1.26“×0.276”

Technical Data

Material:NdFeB
Diameter:1.26 Inch
Height:1.89 Inch
Thickness:0.276 Inch
Tolerance:+/- 0.02 Inch
M:M6x8(0.236x0.315)
Magnetization:Axial
Plating:Ni
Weight:approx 50 g
Power:approx 20 Kg
Surface Gauss:approx 1200 Gs
Max Operating Temp:176 F / 80℃

$1.100

each

20000 in stock

Quantity Price
1 - 99 $1.100
100 - 200 $1.100
201 - 500 $0.799
501 - 1,000 $0.699
1,001+ $0.699
