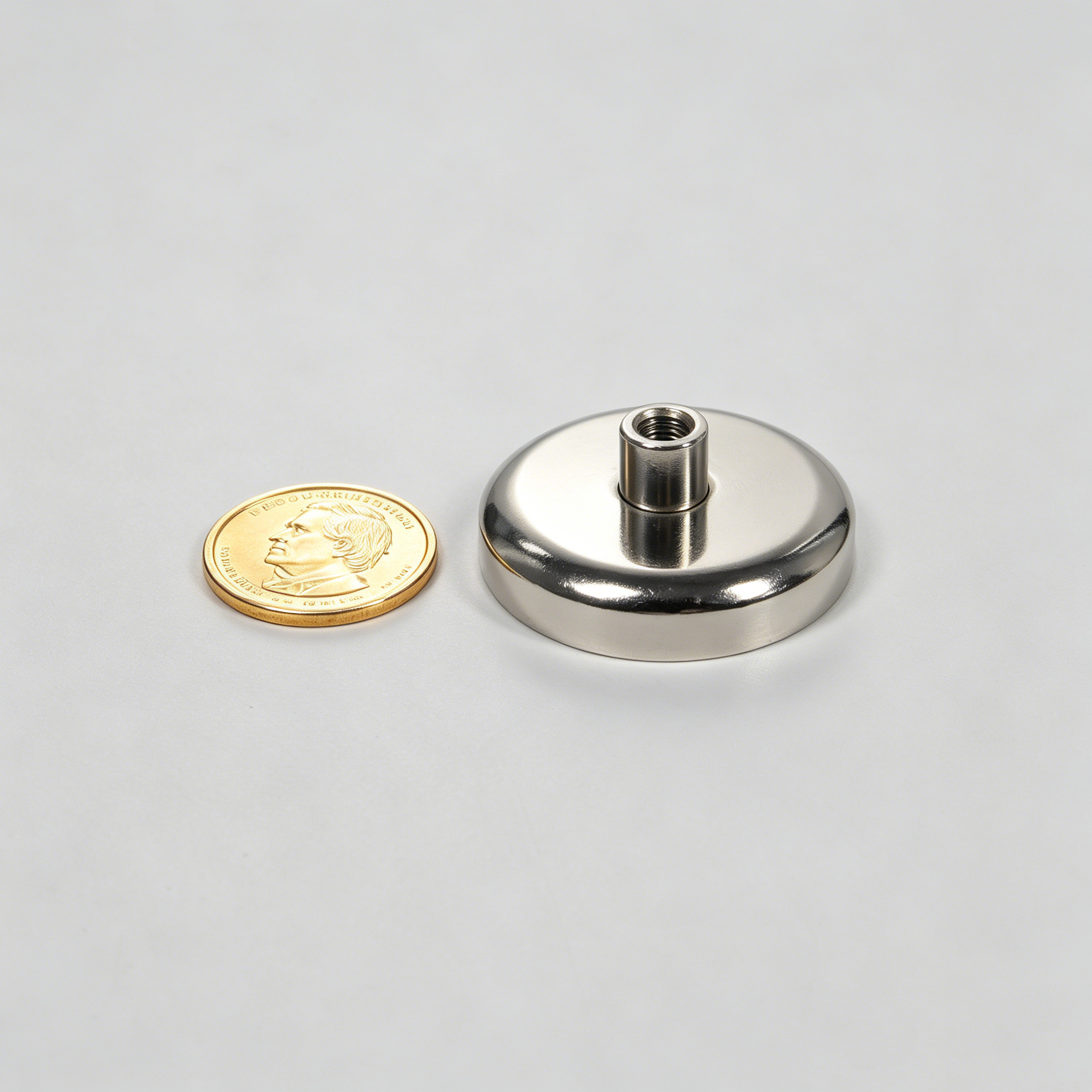

Female Thread NdFeB Pot Magnet 1.65“×0.315”

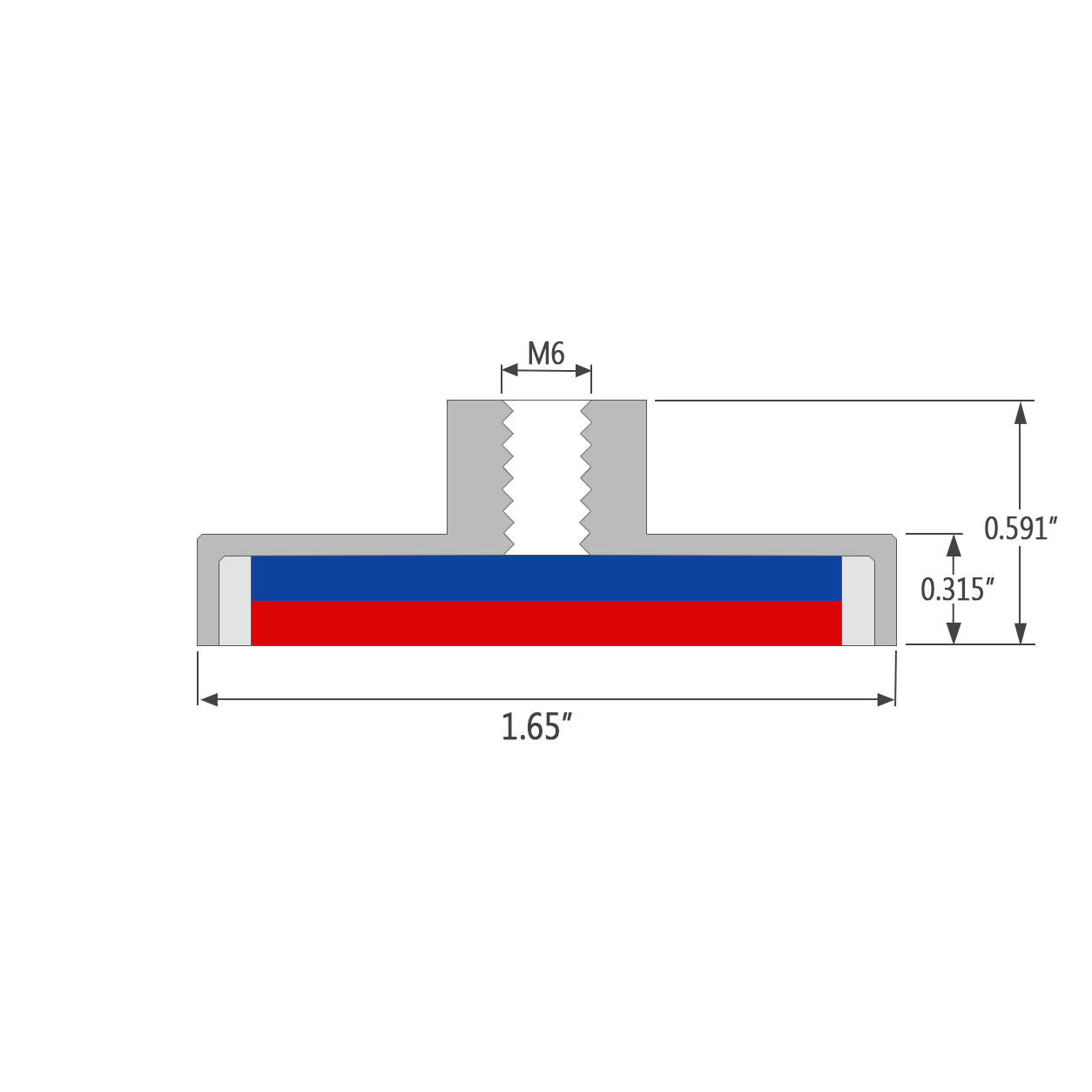

Technical Data

Material:NdFeB
Diameter:1.65 inch (41.9 mm)
Height:0.591 inch (15.0 mm)
Thickness:0.315 inch (8.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M6x7(0.236x0.276)
Magnetization:Axial
Coating:Ni
Weight:approx. 3 oz (85 g)
Pull Force:approx. 77.16 lb (35 kgf)
Surface Gauss:approx. 1000 Gs
Max Operating Temp:176 F / 80℃

$1.900

each

20000 in stock

Quantity Price
1 - 49 $1.900
50 - 100 $1.900
101 - 200 $1.500
201 - 500 $1.000
501+ $1.000

Female Thread NdFeB Pot Magnet 1.65“×0.315”

Technical Data

Material:NdFeB
Diameter:1.65 Inch
Height:0.591 Inch
Thickness:0.315 Inch
Tolerance:+/- 0.02 Inch
M:M6x7(0.236x0.276)
Magnetization:Axial
Plating:Ni
Weight:approx 85 g
Power:approx 35 Kg
Surface Gauss:approx 1000 Gs
Max Operating Temp:176 F / 80℃

$1.900

each

20000 in stock

Quantity Price
1 - 49 $1.900
50 - 100 $1.900
101 - 200 $1.500
201 - 500 $1.000
501+ $1.000
