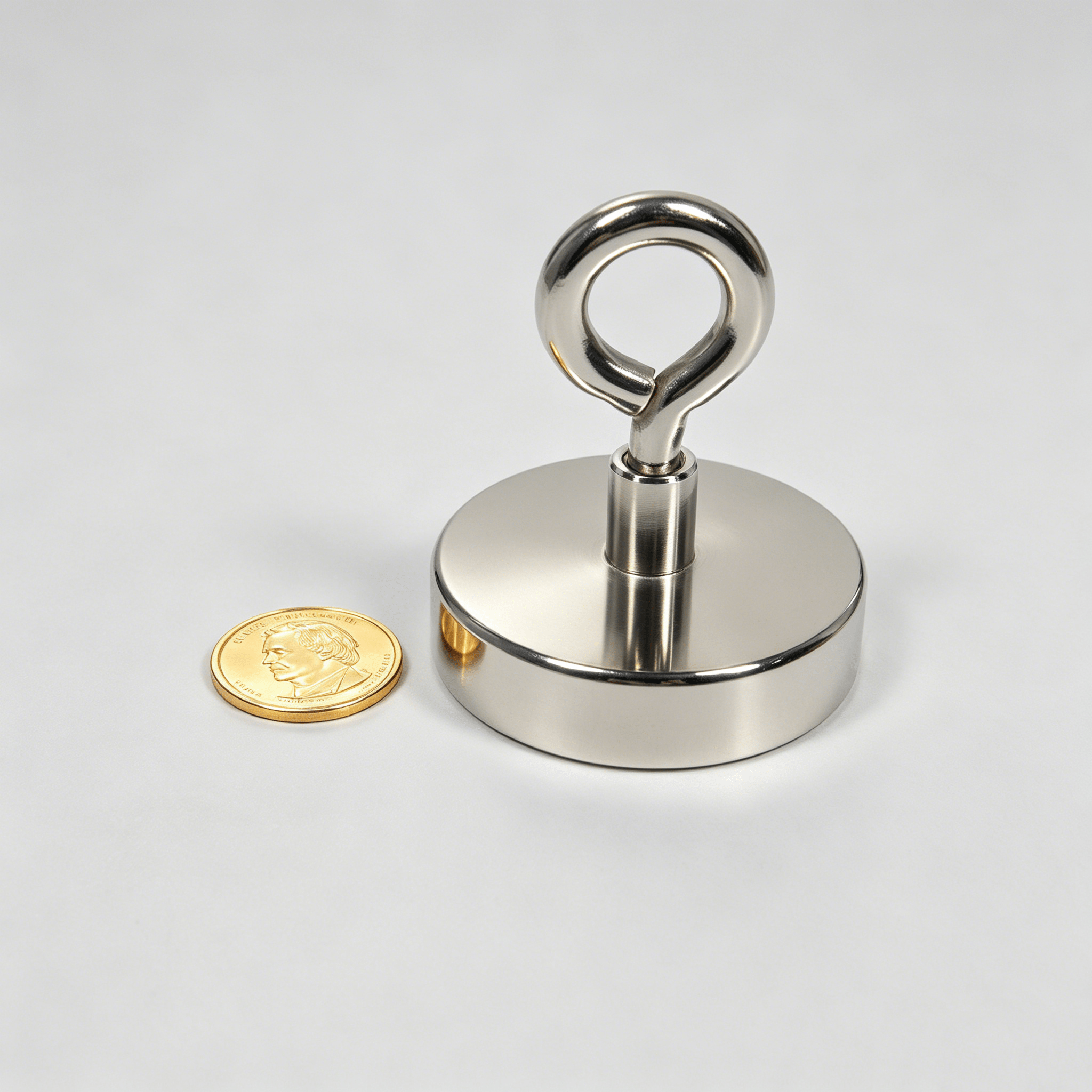

Eye Bolt Magnet 2.36“×0.591”

Technical Data

Material:NdFeB
Diameter:2.36 inch (59.9 mm)
Height:2.52 inch (64.0 mm)
Thickness:0.591 inch (15.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M8x15(0.315x0.591)
Magnetization:Axial
Coating:Ni
Weight:approx. 12.45 oz (353 g)
Pull Force:approx. 308.65 lb (140 kgf)
Surface Gauss:approx. 1000 Gs
Max Operating Temp:176 F / 80℃

$6.090

each

20000 in stock

Quantity Price
1 - 49 $6.090
50 - 100 $6.090
101 - 200 $4.090
201 - 500 $3.290
501+ $3.290

Eye Bolt Magnet 2.36“×0.591”

Technical Data

Material:NdFeB
Diameter:2.36 Inch
Height:2.52 Inch
Thickness:0.591 Inch
Tolerance:+/- 0.02 Inch
M:M8x15(0.315x0.591)
Magnetization:Axial
Plating:Ni
Weight:approx 353 g
Power:approx 140 Kg
Surface Gauss:approx 1000 Gs
Max Operating Temp:176 F / 80℃

$6.090

each

20000 in stock

Quantity Price
1 - 49 $6.090
50 - 100 $6.090
101 - 200 $4.090
201 - 500 $3.290
501+ $3.290
