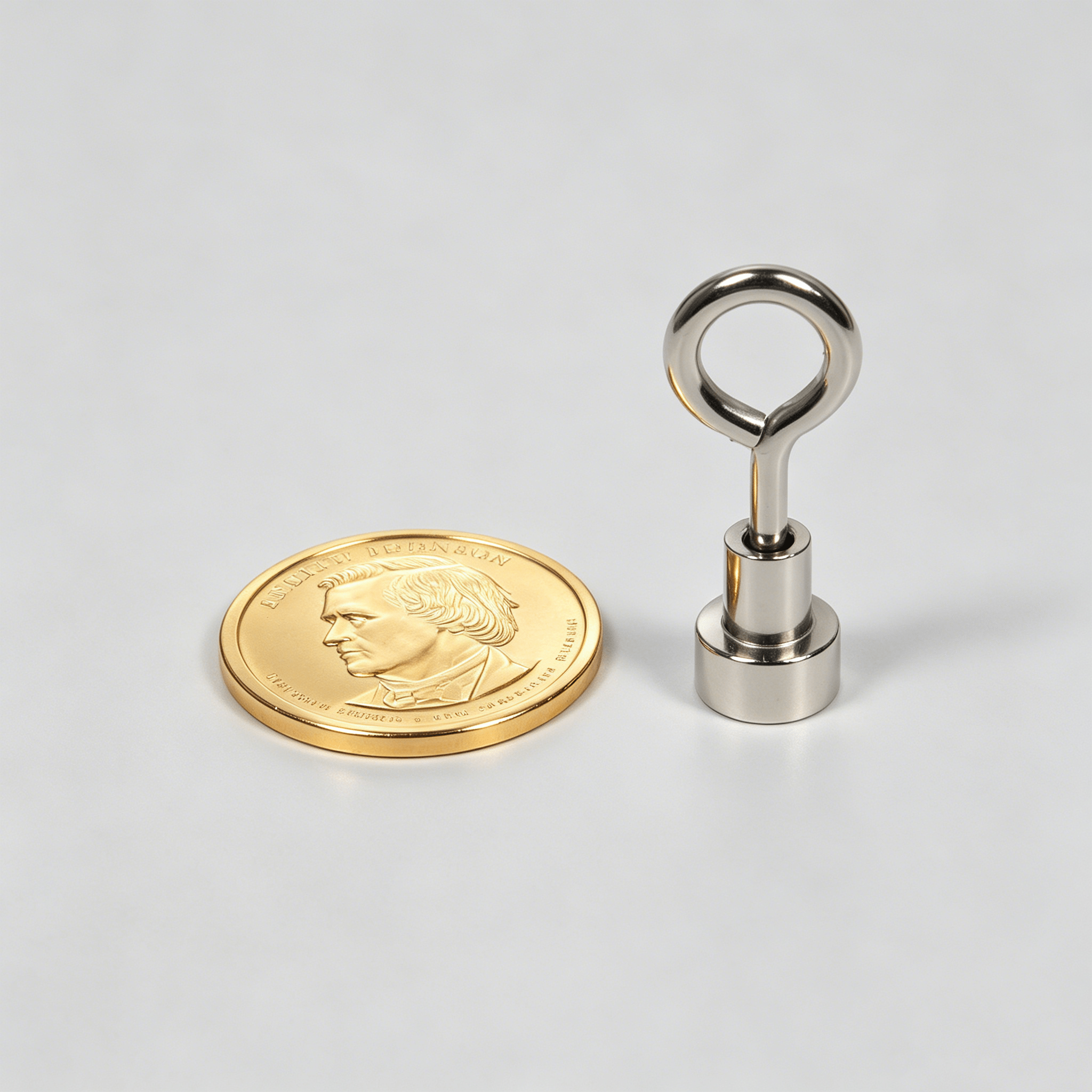

Eye Bolt Magnet 0.394“×0.197”

Technical Data

Material:NdFeB
Diameter:0.394 inch (10.0 mm)
Height:1.18 inch (30.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M3x7(0.118x0.276)
Magnetization:Axial
Coating:Ni
Weight:approx. 0.176 oz (5 g)
Pull Force:approx. 4.19 lb (1.9 kgf)
Surface Gauss:approx. 3300 Gs
Max Operating Temp:176 F / 80℃

$0.200

each

20000 in stock

Quantity Price
1 - 99 $0.200
100 - 200 $0.200
201 - 500 $0.160
501 - 1,000 $0.120
1,001+ $0.120

Eye Bolt Magnet 0.394“×0.197”

Technical Data

Material:NdFeB
Diameter:0.394 Inch
Height:1.18 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.02 Inch
M:M3x7(0.118x0.276)
Magnetization:Axial
Plating:Ni
Weight:approx 5 g
Power:approx 1.9 Kg
Surface Gauss:approx 3300 Gs
Max Operating Temp:176 F / 80℃

$0.200

each

20000 in stock

Quantity Price
1 - 99 $0.200
100 - 200 $0.200
201 - 500 $0.160
501 - 1,000 $0.120
1,001+ $0.120
