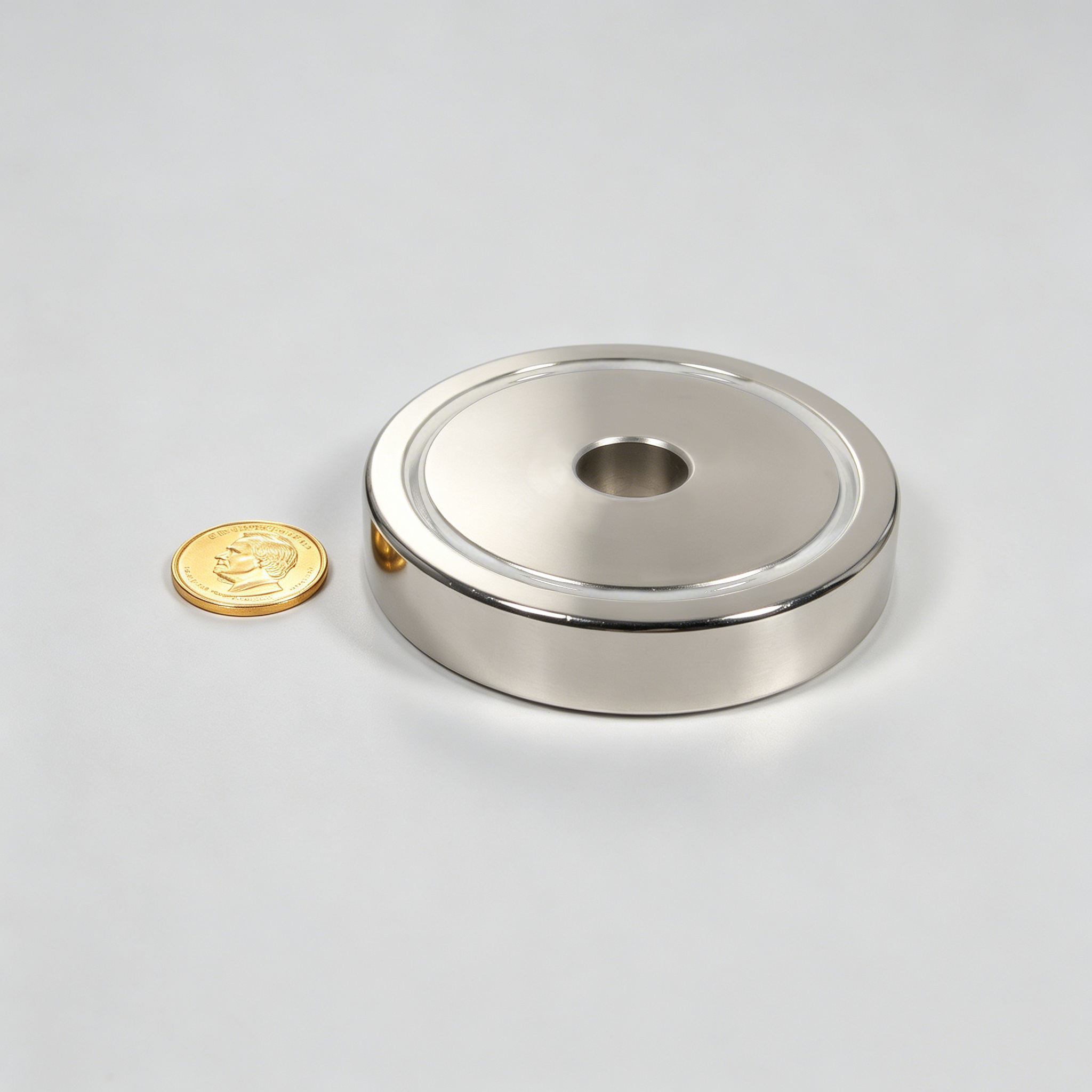

NdFeB Counterbore Pot Magnet 3.543“x0.709”

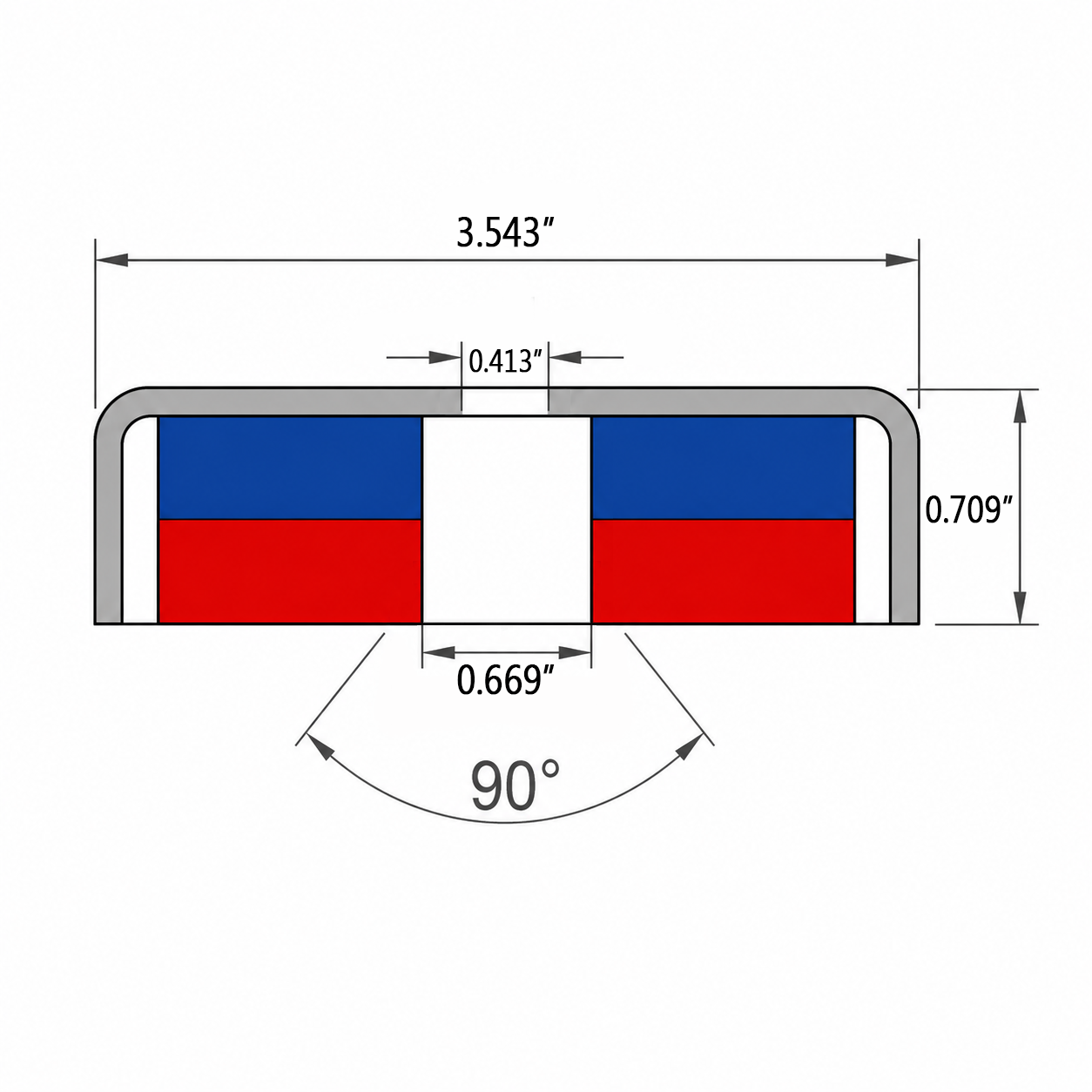

Technical Data

Material:NdFeB
Diameter:3.543 inch (90.0 mm)
Hole d1:0.413 inch (10.5 mm)
Countersinking d2:0.669 inch (17.0 mm)
Height:0.709 inch (18.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 30.44 oz (863 g)
Pull Force:approx. 793.66 lb (360 kgf)
Surface Gauss:approx. 1600 Gs
Max Operating Temp:176 F / 80℃

$106.700

each

20000 in stock

Quantity Price
1 - 19 $106.700
20 - 50 $106.700
51 - 100 $97.000
101 - 200 $92.150
201+ $92.150

NdFeB Counterbore Pot Magnet 3.543“x0.709”

Technical Data

Material:NdFeB
Diameter:3.543 Inch
Hole d1:0.413 Inch
Countersinking d2:0.669 Inch
Height:0.709 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 863 g
Power:approx 360 Kg
Surface Gauss:approx 1600 Gs
Max Operating Temp:176 F / 80℃

$106.700

each

20000 in stock

Quantity Price
1 - 19 $106.700
20 - 50 $106.700
51 - 100 $97.000
101 - 200 $92.150
201+ $92.150
