Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

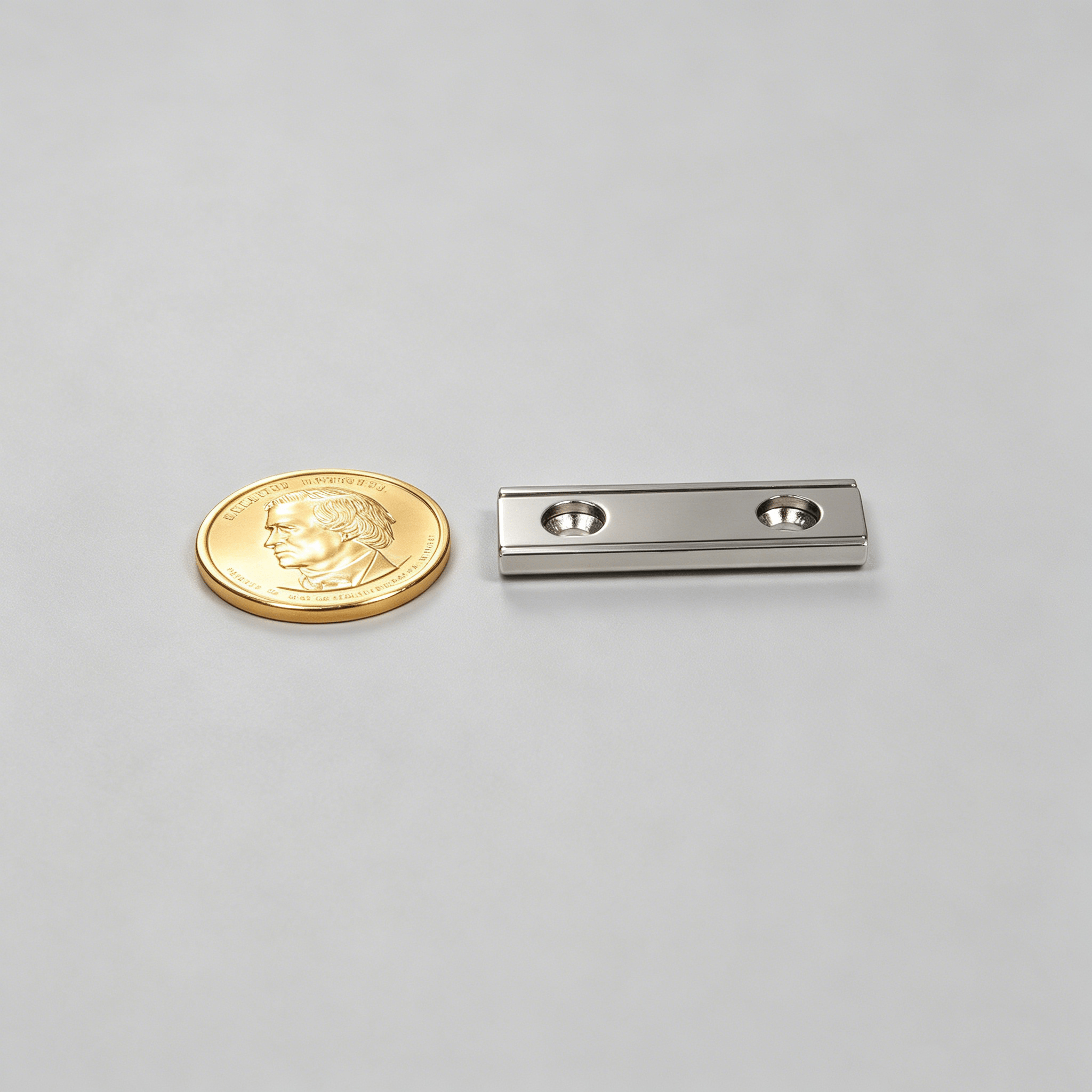

NdFeB Channel Magnet 1.5″×0.5″-2M3

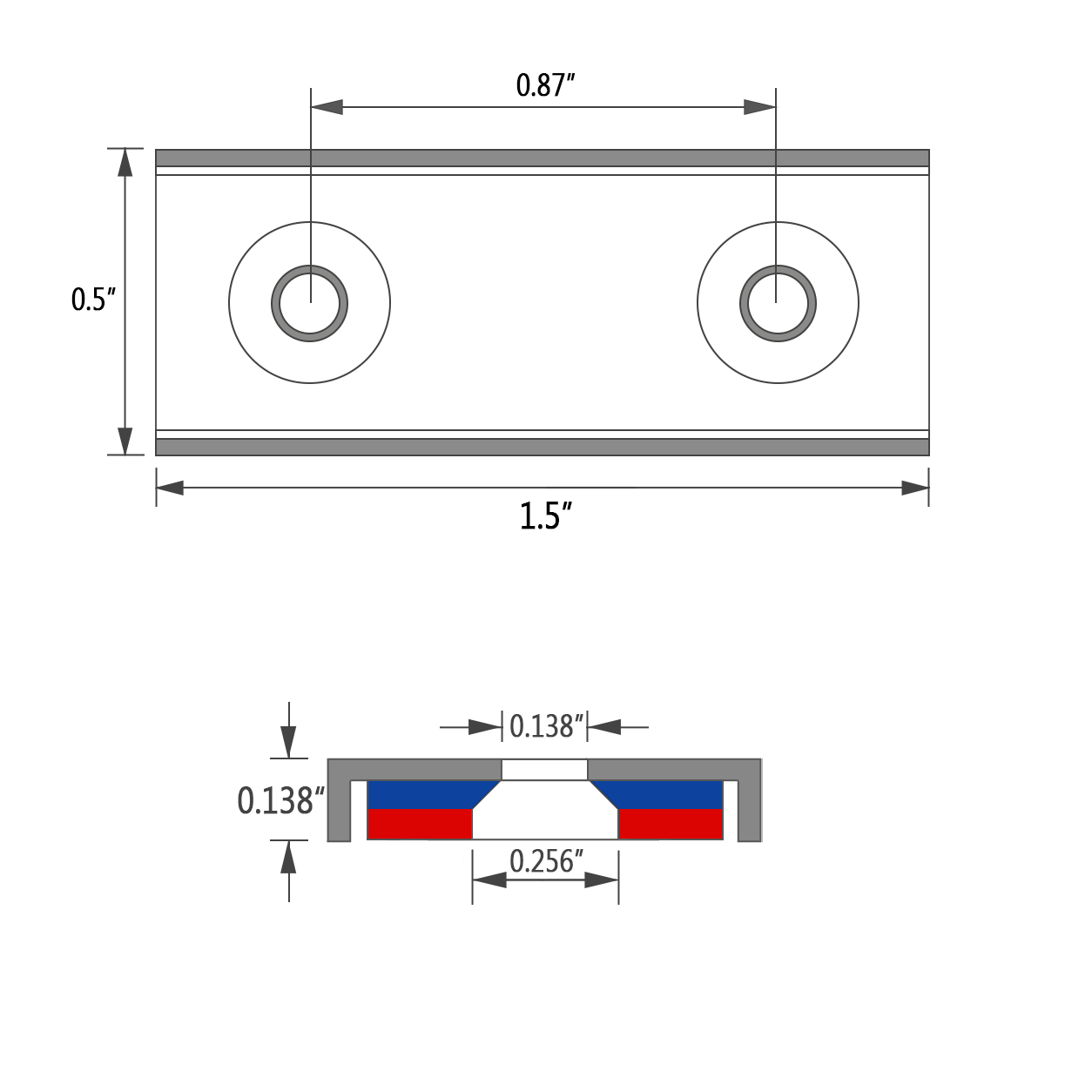

Technical Data

Material:NdFeB
Length:1.5 inch (38.1 mm)
Width:0.5 inch (12.7 mm)
Thickness:0.138 inch (3.5 mm)
Distance:0.87 inch (22.1 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M3(d0.138/0.256)
Magnetization:Axial
Coating:Ni
Weight:approx. 0.395 oz (11.2 g)
Pull Force:approx. 51.15 lb (23.2 kgf)
Surface Gauss:approx. 1986 Gs
Max Operating Temp:176 F / 80℃

$0.800

each

20000 in stock

Quantity Price
1 - 99 $0.800
100 - 200 $0.800
201 - 500 $0.600
501 - 1,000 $0.450
1,001+ $0.450

NdFeB Channel Magnet 1.5″×0.5″-2M3

Technical Data

Material:NdFeB
Length:1.5 Inch
Width:0.5 Inch
Thickness:0.138 Inch
Distance:0.87 Inch
Tolerance:+/- 0.02 Inch
M:M3(d0.138/0.256)
Magnetization:Axial
Plating:Ni
Weight:approx 11.2 g
Power:approx 23.2 Kg
Surface Gauss:approx 1986 Gs
Max Operating Temp:176 F / 80℃

$0.800

each

20000 in stock

Quantity Price
1 - 99 $0.800
100 - 200 $0.800
201 - 500 $0.600
501 - 1,000 $0.450
1,001+ $0.450
