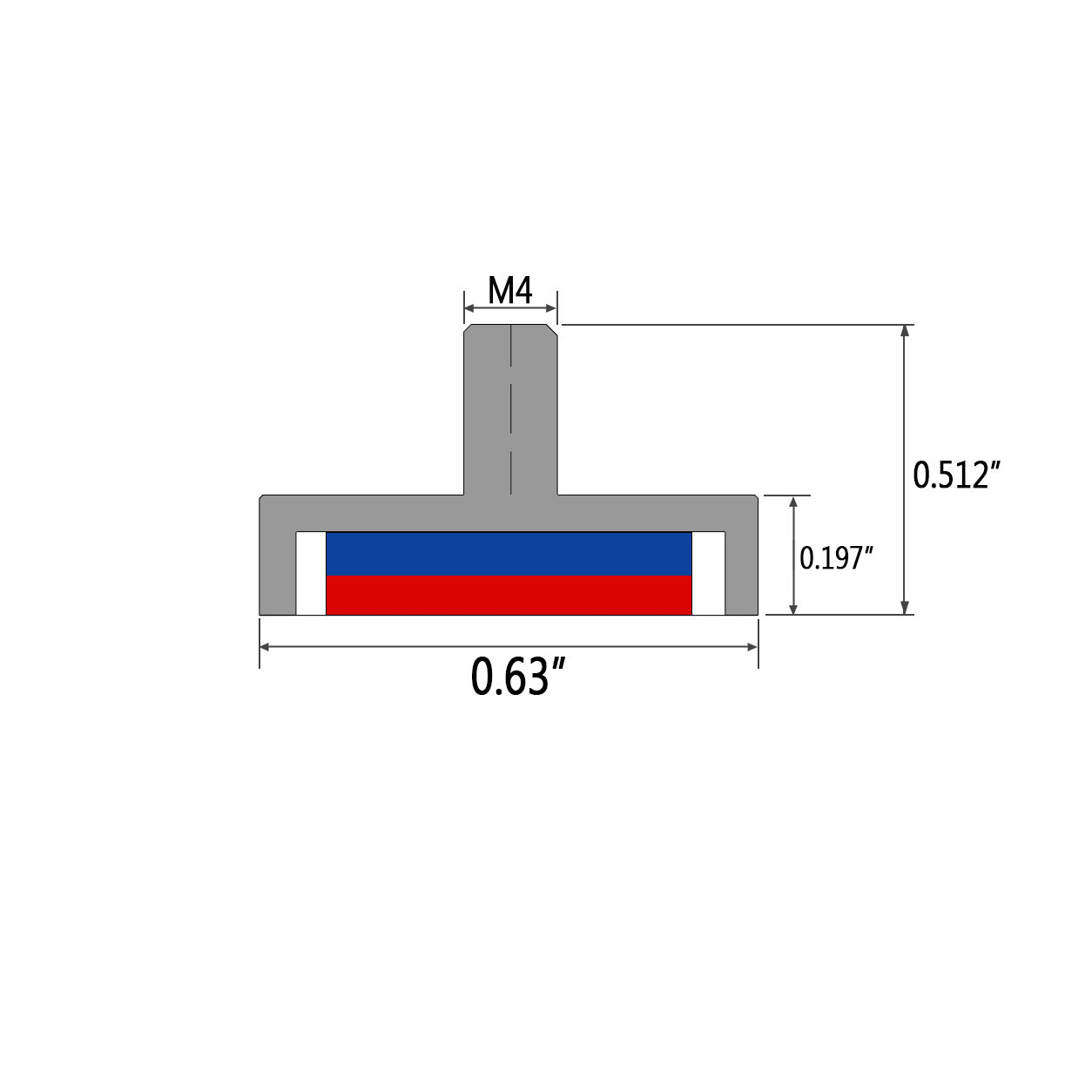

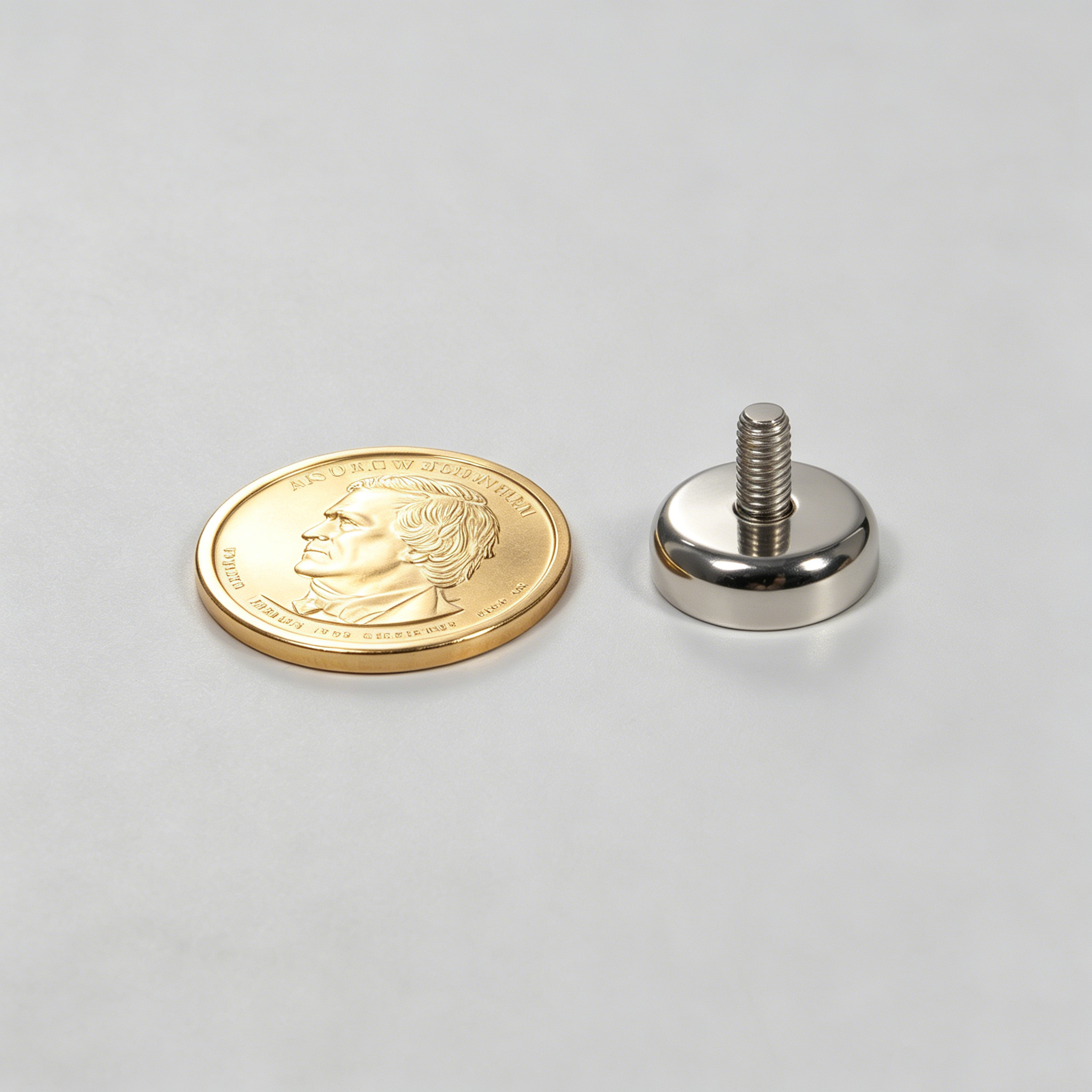

Male Thread NdFeB Pot Magnet 0.630“×0.197”

Technical Data

Material:NdFeB
Diameter:0.63 inch (16.0 mm)
Height:0.512 inch (13.0 mm)
Thickness:0.197 inch (5.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M4x8(0.157x0.315)
Magnetization:Axial
Coating:Ni
Weight:approx. 0.265 oz (7.5 g)
Pull Force:approx. 9.26 lb (4.2 kgf)
Surface Gauss:approx. 3300 Gs
Max Operating Temp:176 F / 80℃

$0.200

each

20000 in stock

Quantity Price
1 - 99 $0.200
100 - 200 $0.200
201 - 500 $0.160
501 - 1,000 $0.130
1,001+ $0.130

Male Thread NdFeB Pot Magnet 0.630“×0.197”

Technical Data

Material:NdFeB
Diameter:0.63 Inch
Height:0.512 Inch
Thickness:0.197 Inch
Tolerance:+/- 0.02 Inch
M:M4x8(0.157x0.315)
Magnetization:Axial
Plating:Ni
Weight:approx 7.5 g
Power:approx 4.2 Kg
Surface Gauss:approx 3300 Gs
Max Operating Temp:176 F / 80℃

$0.200

each

20000 in stock

Quantity Price
1 - 99 $0.200
100 - 200 $0.200
201 - 500 $0.160
501 - 1,000 $0.130
1,001+ $0.130
