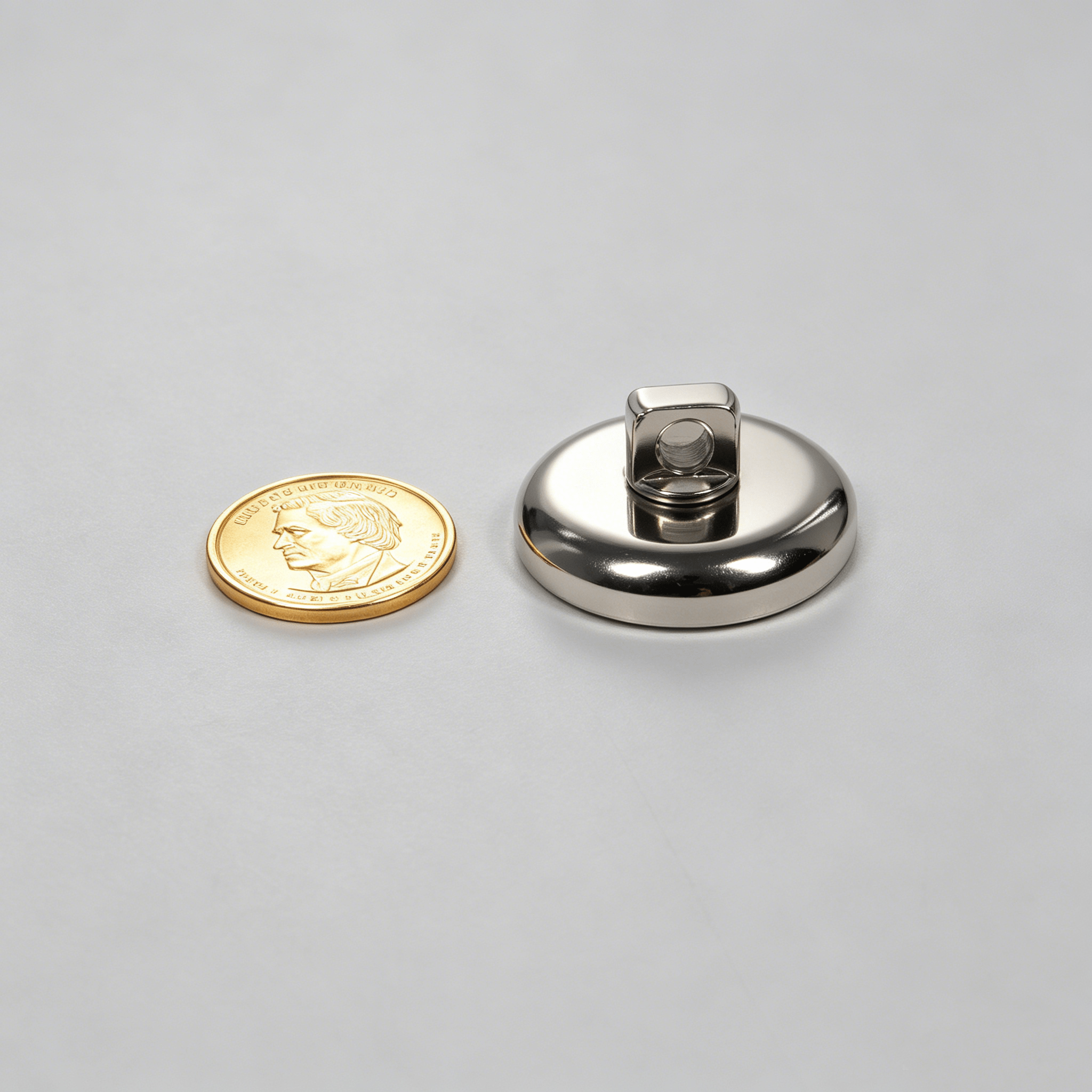

Carabiner NdFeB Pot Magnet 1.417″

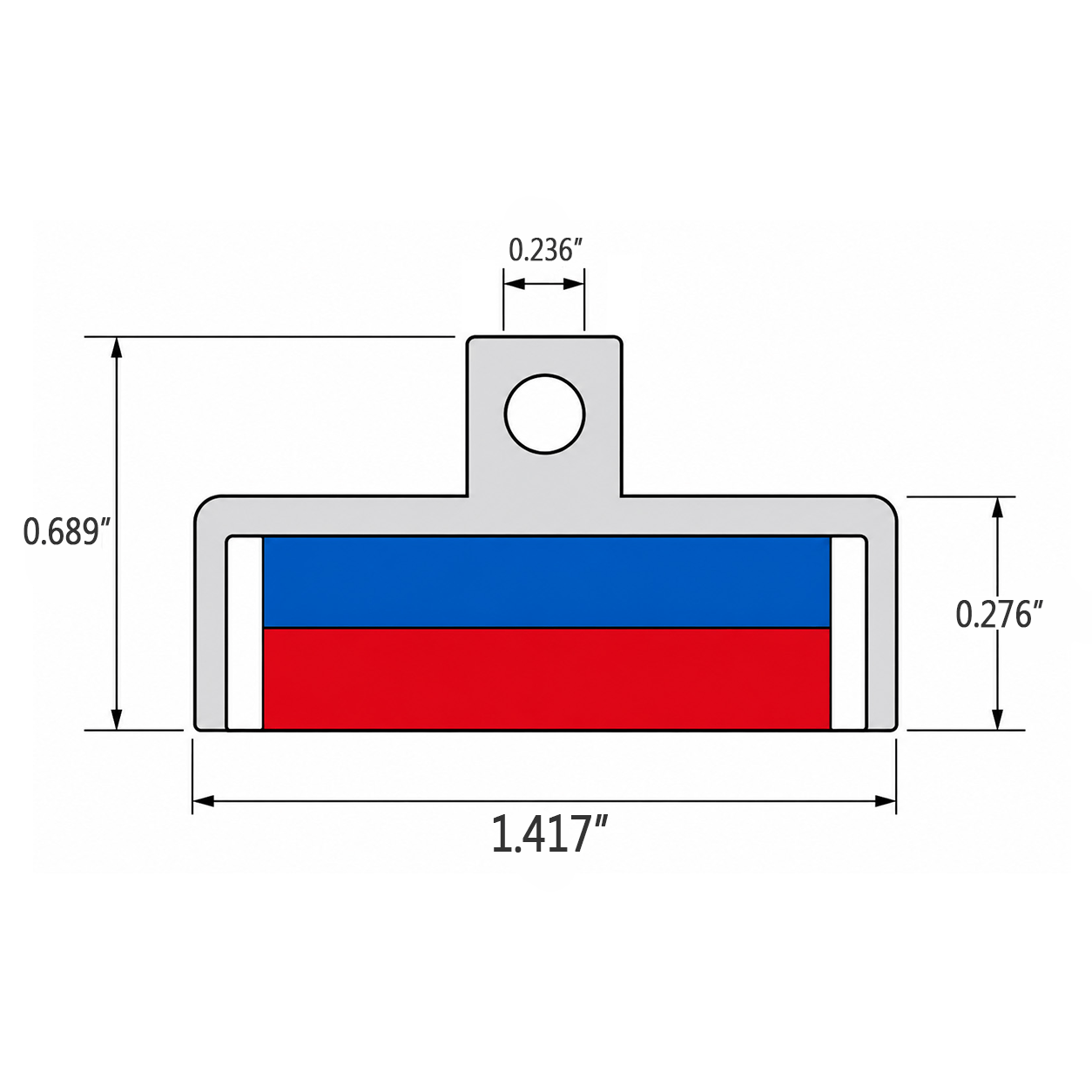

Technical Data

Material:NdFeB
Diameter:1.417 inch (36.0 mm)
Hole d1:0.236 inch (6.0 mm)
Total Height:0.689 inch (17.5 mm)
Pot Height:0.276 inch (7.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)

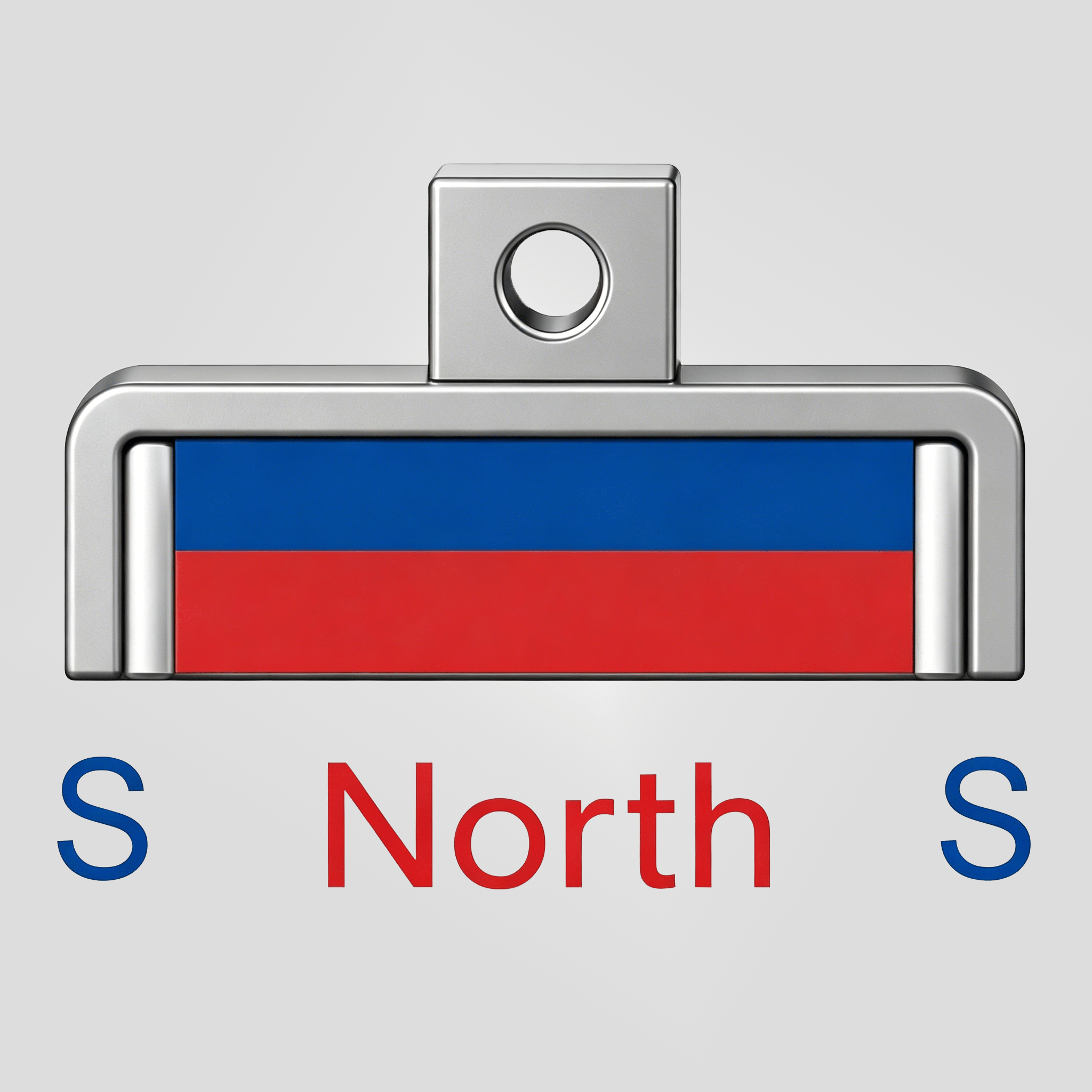

Magnetization:Axial
Coating:Ni
Weight:approx. 1.87 oz (53 g)
Pull Force:approx. 61.73 lb (28 kgf)
Surface Gauss:approx. 1000 Gs
Max Operating Temp:176 F / 80℃

$2.470

each

20000 in stock

Quantity Price
1 - 49 $2.470
50 - 100 $2.470
101 - 200 $1.650
201 - 500 $1.412
501+ $1.412

Carabiner NdFeB Pot Magnet 1.417″

Technical Data

Material:NdFeB
Diameter:1.417 Inch
Hole d1:0.236 Inch
Total Height:0.689 Inch
Pot Height:0.276 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 53 g
Power:approx 28 Kg
Surface Gauss:approx 1000 Gs
Max Operating Temp:176 F / 80℃

$2.470

each

20000 in stock

Quantity Price
1 - 49 $2.470
50 - 100 $2.470
101 - 200 $1.650
201 - 500 $1.412
501+ $1.412
