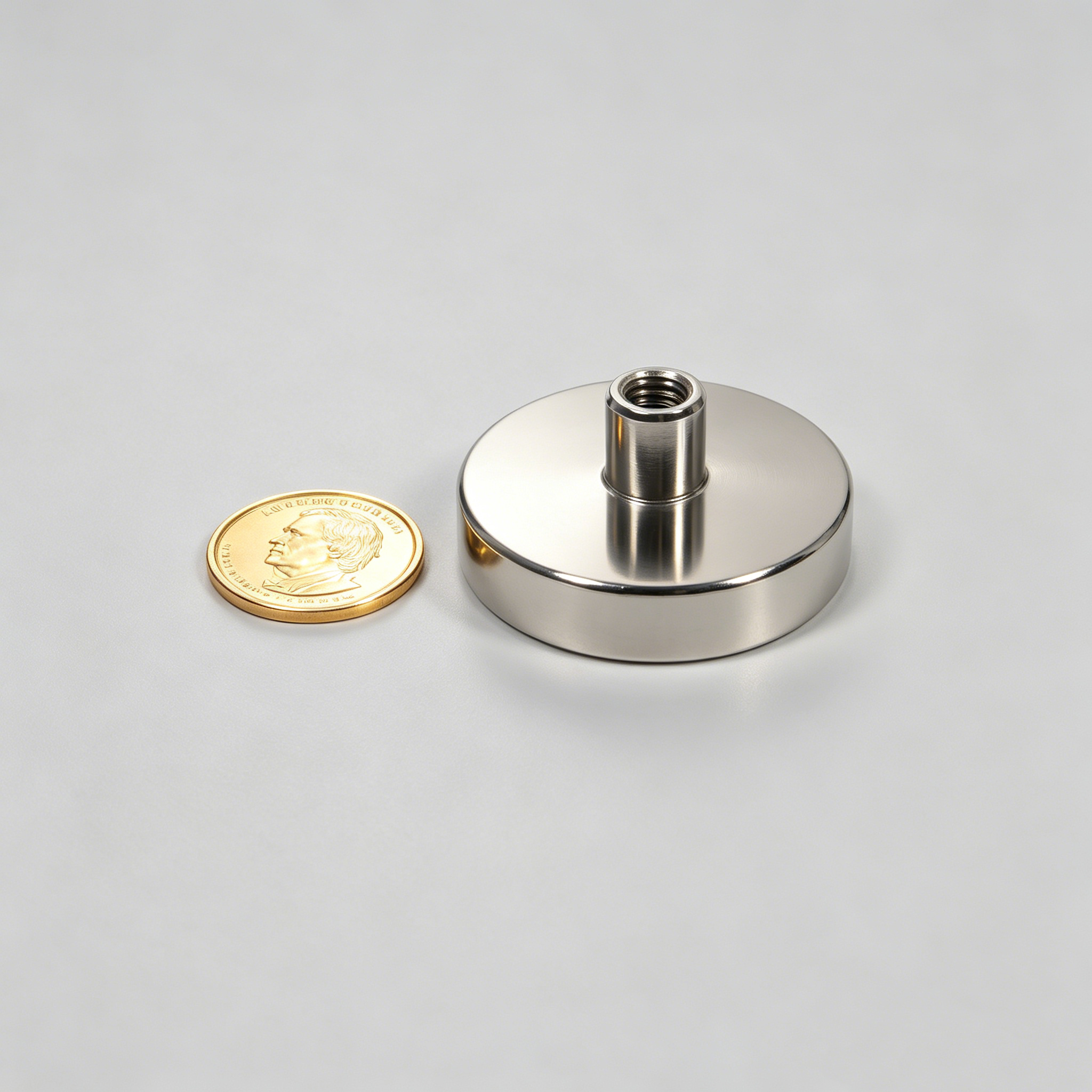

Female Thread NdFeB Pot Magnet 1.89“×0.433”

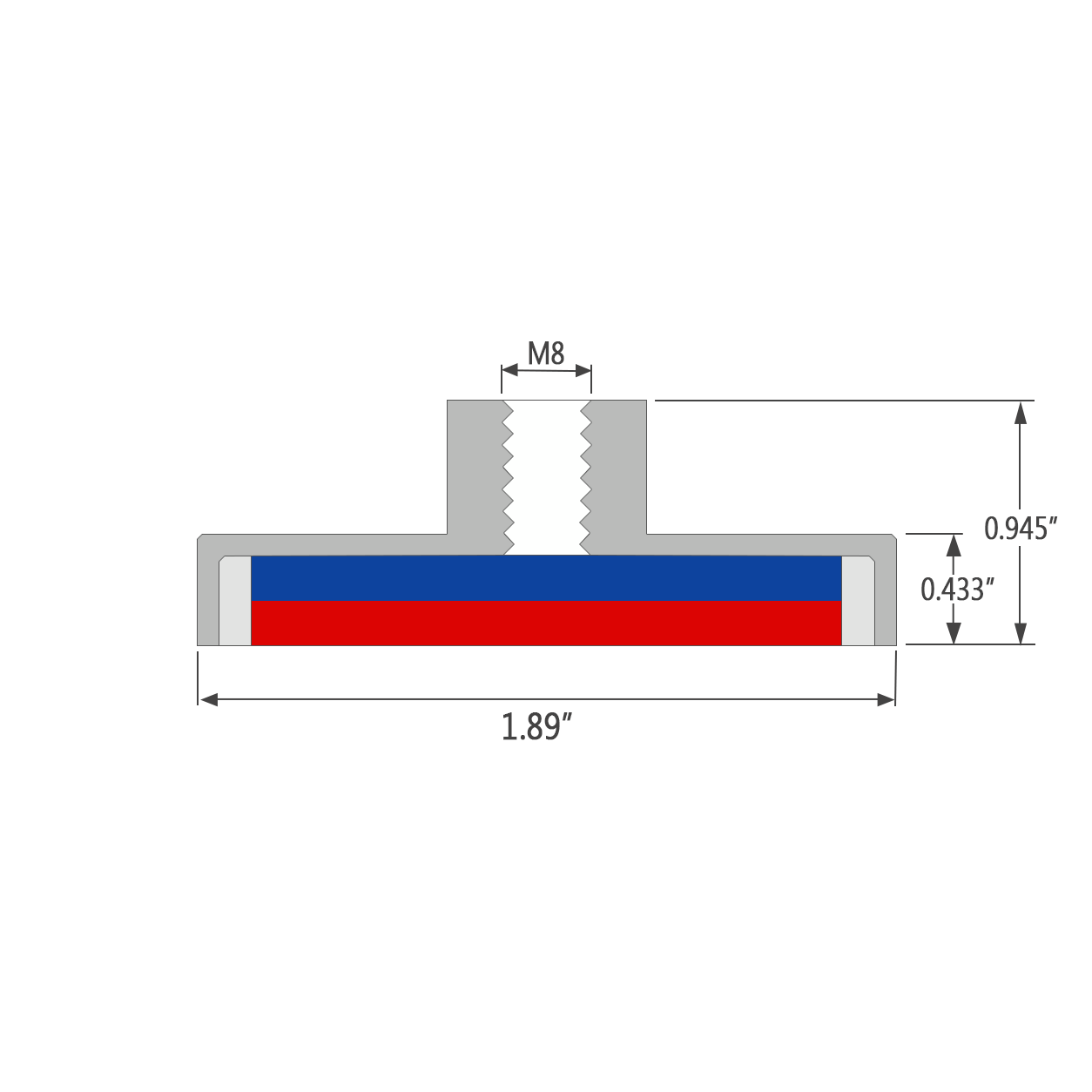

Technical Data

Material:NdFeB
Diameter:1.89 inch (48.0 mm)
Height:0.945 inch (24.0 mm)
Thickness:0.433 inch (11.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M8x13(0.315x0.512)
Magnetization:Axial
Coating:Ni
Weight:approx. 5.43 oz (154 g)
Pull Force:approx. 165.35 lb (75 kgf)
Surface Gauss:approx. 900 Gs
Max Operating Temp:176 F / 80℃

$3.000

each

20000 in stock

Quantity Price
1 - 49 $3.000
50 - 100 $3.000
101 - 200 $2.400
201 - 500 $1.800
501+ $1.800

Female Thread NdFeB Pot Magnet 1.89“×0.433”

Technical Data

Material:NdFeB
Diameter:1.89 Inch
Height:0.945 Inch
Thickness:0.433 Inch
Tolerance:+/- 0.02 Inch
M:M8x13(0.315x0.512)
Magnetization:Axial
Plating:Ni
Weight:approx 154 g
Power:approx 75 Kg
Surface Gauss:approx 900 Gs
Max Operating Temp:176 F / 80℃

$3.000

each

20000 in stock

Quantity Price
1 - 49 $3.000
50 - 100 $3.000
101 - 200 $2.400
201 - 500 $1.800
501+ $1.800
