Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

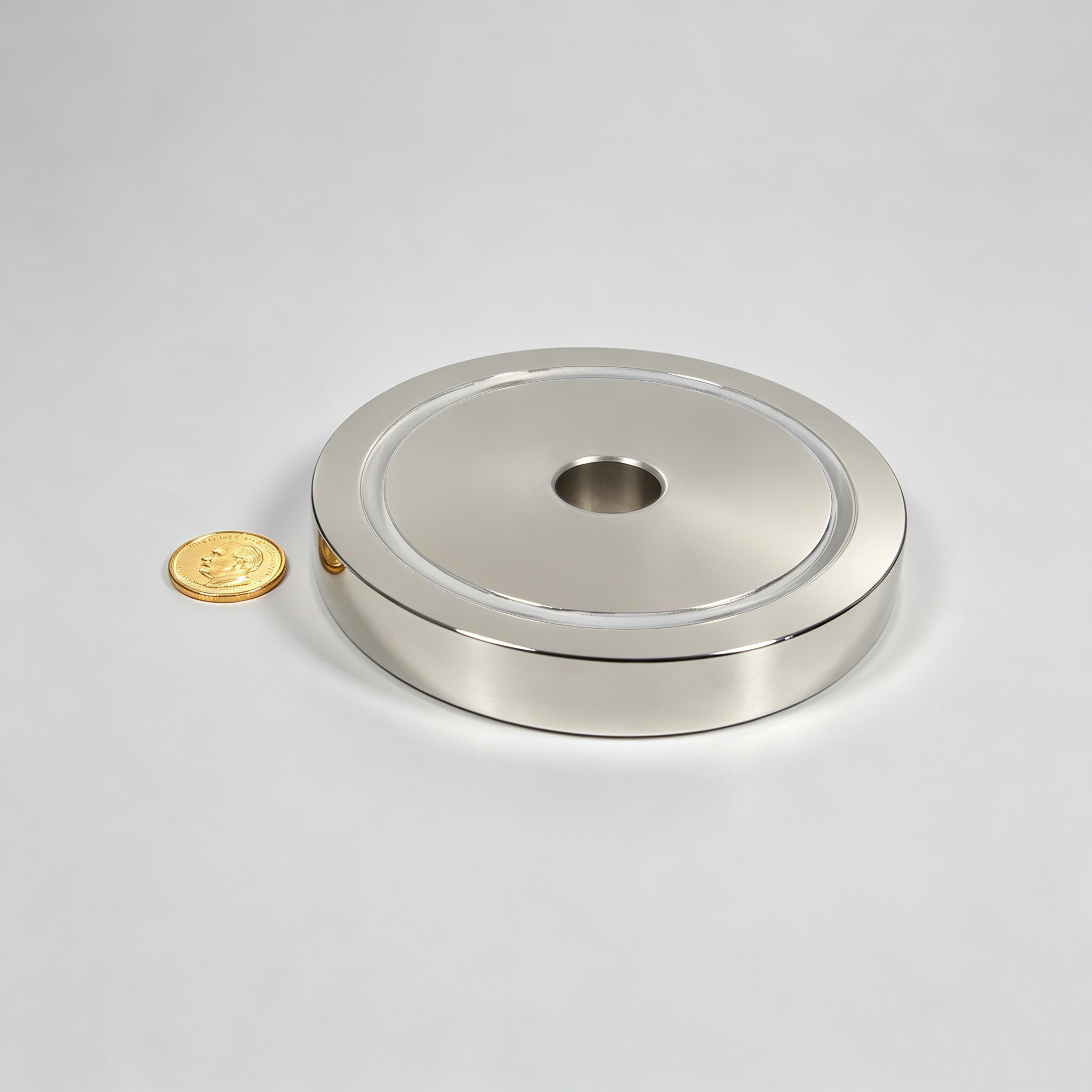

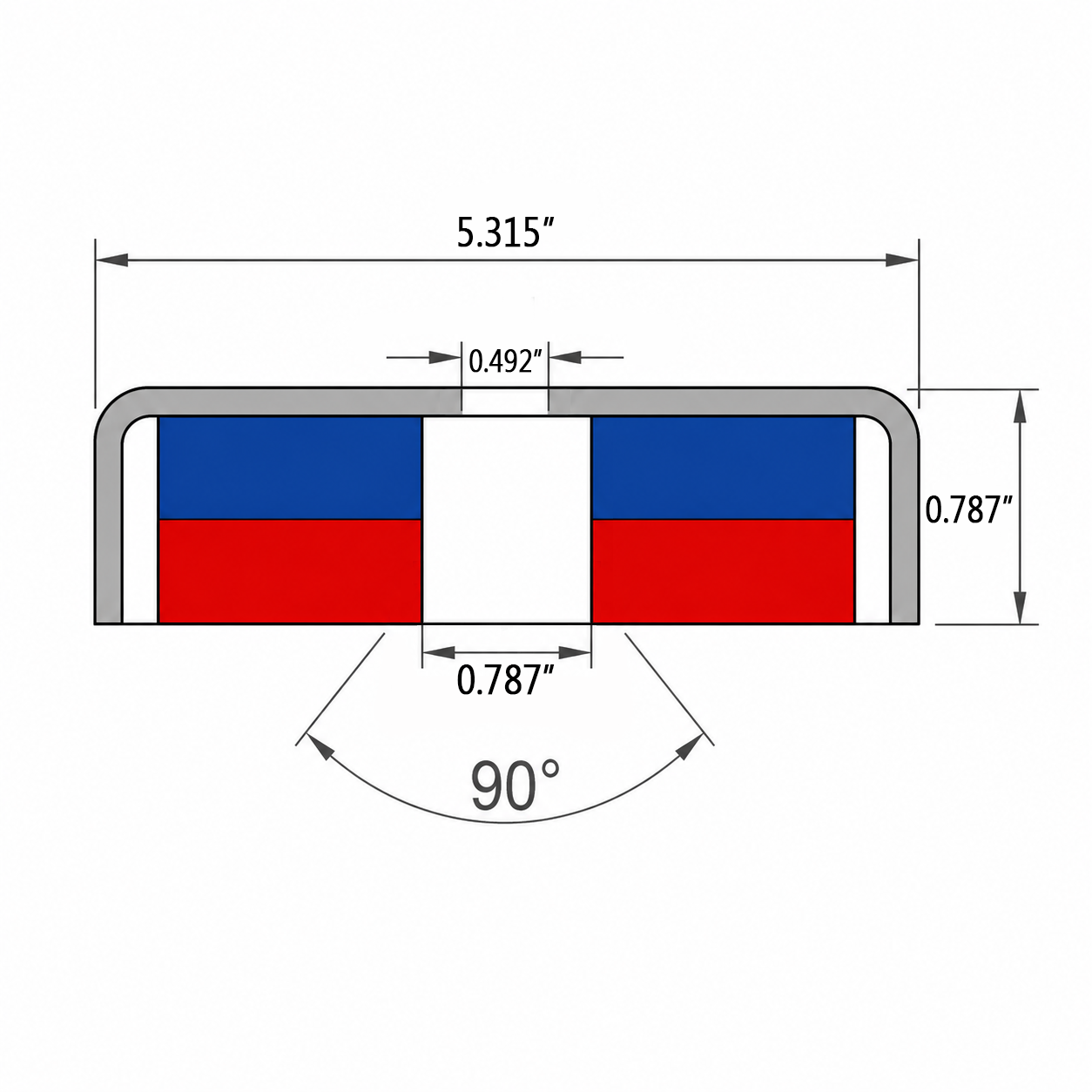

NdFeB Counterbore Pot Magnet 5.315“x0.787”

Technical Data

Material:NdFeB
Diameter:5.315 inch (135.0 mm)
Hole d1:0.492 inch (12.5 mm)
Countersinking d2:0.787 inch (20.0 mm)
Height:0.787 inch (20.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
Magnetization:Axial
Coating:Ni
Weight:approx. 76.37 oz (2165 g)
Pull Force:approx. 1322.77 lb (600 kgf)
Surface Gauss:approx. 1500 Gs
Max Operating Temp:176 F / 80℃

$337.830

each

20000 in stock

Quantity Price
1 - 19 $337.830
20 - 50 $337.830
51 - 100 $307.120
101 - 200 $291.760
201+ $291.760

NdFeB Counterbore Pot Magnet 5.315“x0.787”

Technical Data

Material:NdFeB
Diameter:5.315 Inch
Hole d1:0.492 Inch
Countersinking d2:0.787 Inch
Height:0.787 Inch
Tolerance:+/- 0.02 Inch
Magnetization:Axial
Plating:Ni
Weight:approx 2165 g
Power:approx 600 Kg
Surface Gauss:approx 1500 Gs
Max Operating Temp:176 F / 80℃

$337.830

each

20000 in stock

Quantity Price
1 - 19 $337.830
20 - 50 $337.830
51 - 100 $307.120
101 - 200 $291.760
201+ $291.760
