Neodymium Magnet Manufacturer | 10 Million+ Magnets in Stock

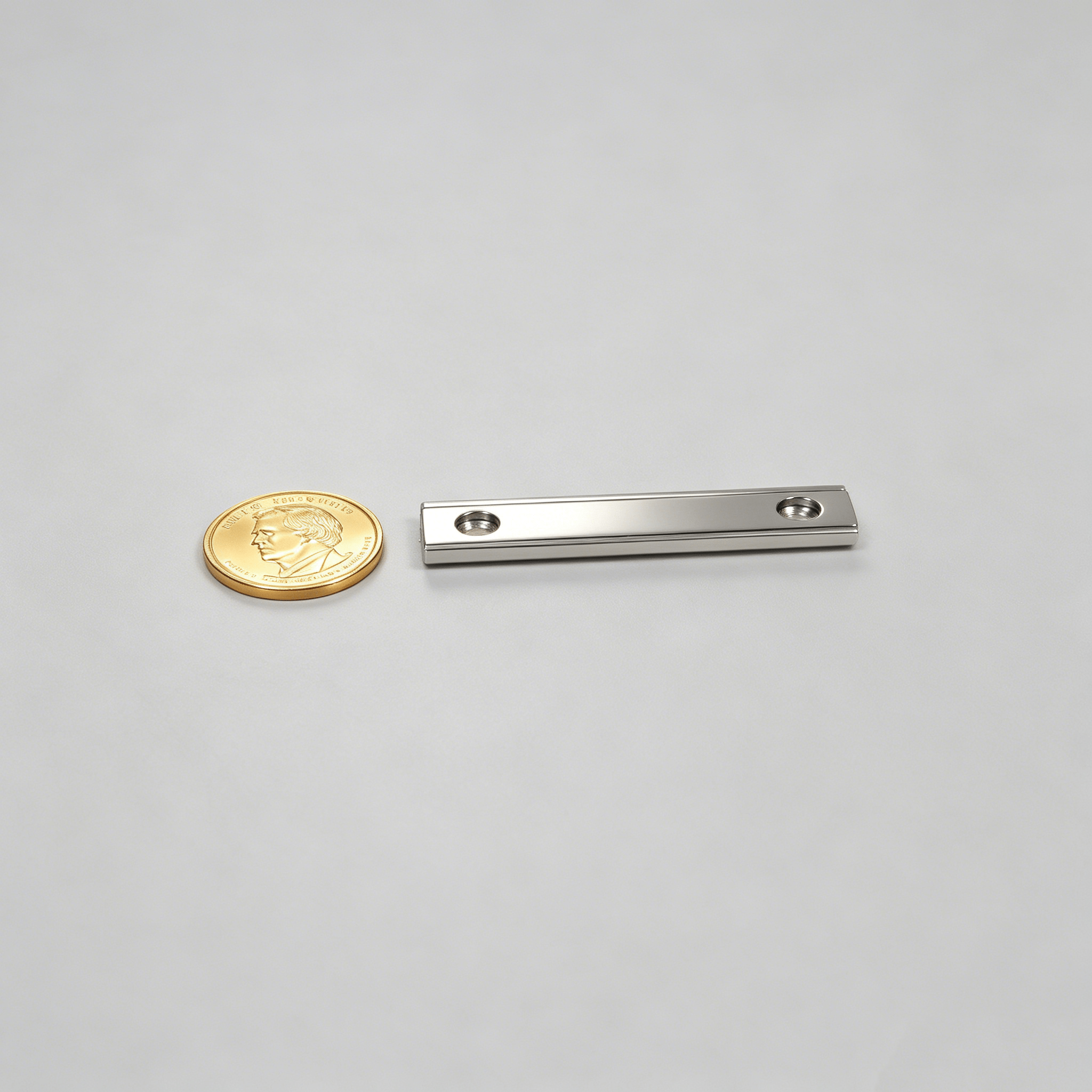

NdFeB Channel Magnet 2.5″×0.5″-2M3

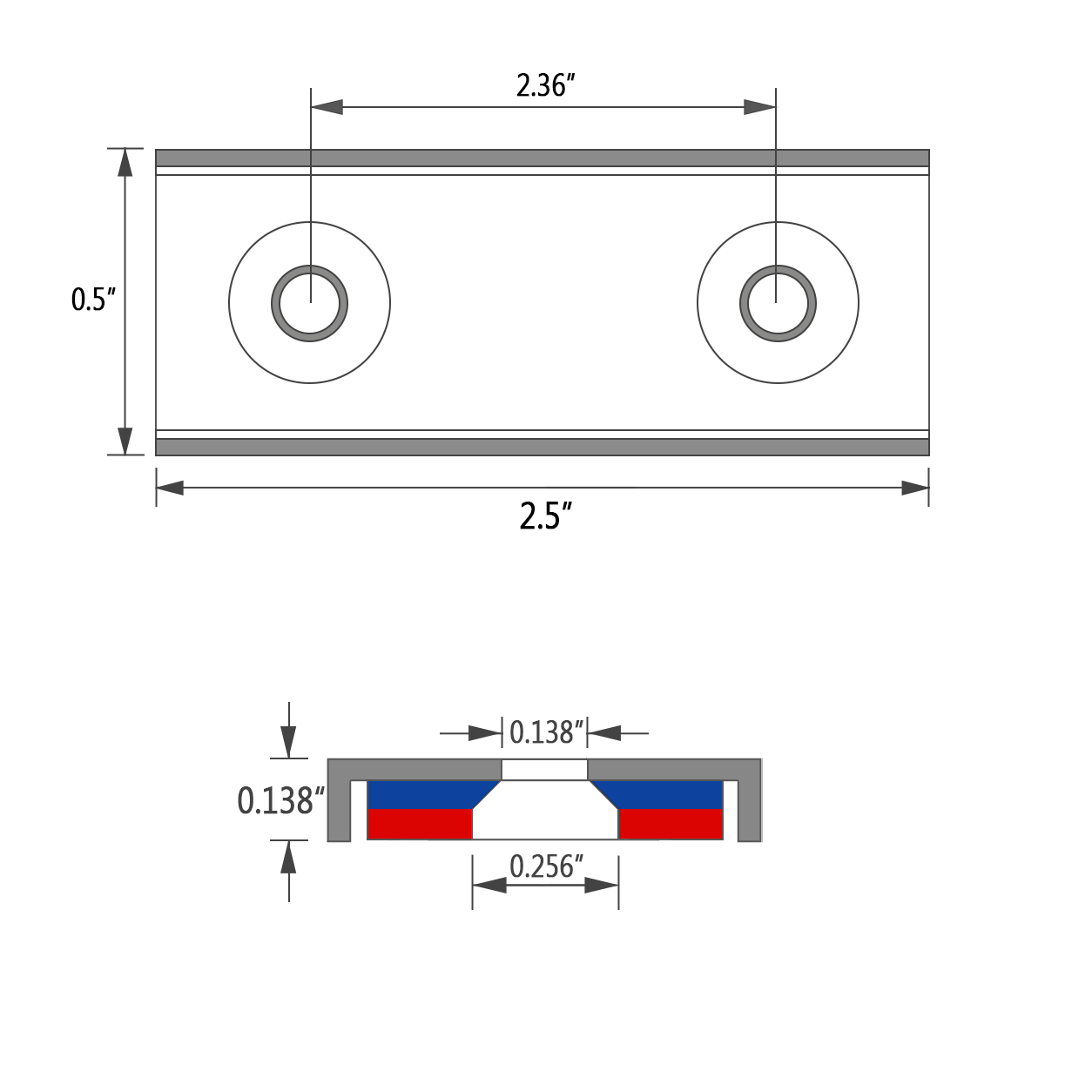

Technical Data

Material:NdFeB
Length:2.5 inch (63.5 mm)
Width:0.5 inch (12.7 mm)
Thickness:0.138 inch (3.5 mm)
Distance:1.87 inch (47.5 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M3(d0.138/0.256)
Magnetization:Axial
Coating:Ni
Weight:approx. 0.677 oz (19.2 g)
Pull Force:approx. 60.85 lb (27.6 kgf)
Surface Gauss:approx. 2000 Gs
Max Operating Temp:176 F / 80℃

$1.200

each

20000 in stock

Quantity Price
1 - 99 $1.200
100 - 200 $1.200
201 - 500 $0.900
501 - 1,000 $0.700
1,001+ $0.700

NdFeB Channel Magnet 2.5″×0.5″-2M3

Technical Data

Material:NdFeB
Length:2.5 Inch
Width:0.5 Inch
Thickness:0.138 Inch
Distance:1.87 Inch
Tolerance:+/- 0.02 Inch
M:M3(d0.138/0.256)
Magnetization:Axial
Plating:Ni
Weight:approx 19.2 g
Power:approx 27.6 Kg
Surface Gauss:approx 2000 Gs
Max Operating Temp:176 F / 80℃

$1.200

each

20000 in stock

Quantity Price
1 - 99 $1.200
100 - 200 $1.200
201 - 500 $0.900
501 - 1,000 $0.700
1,001+ $0.700
