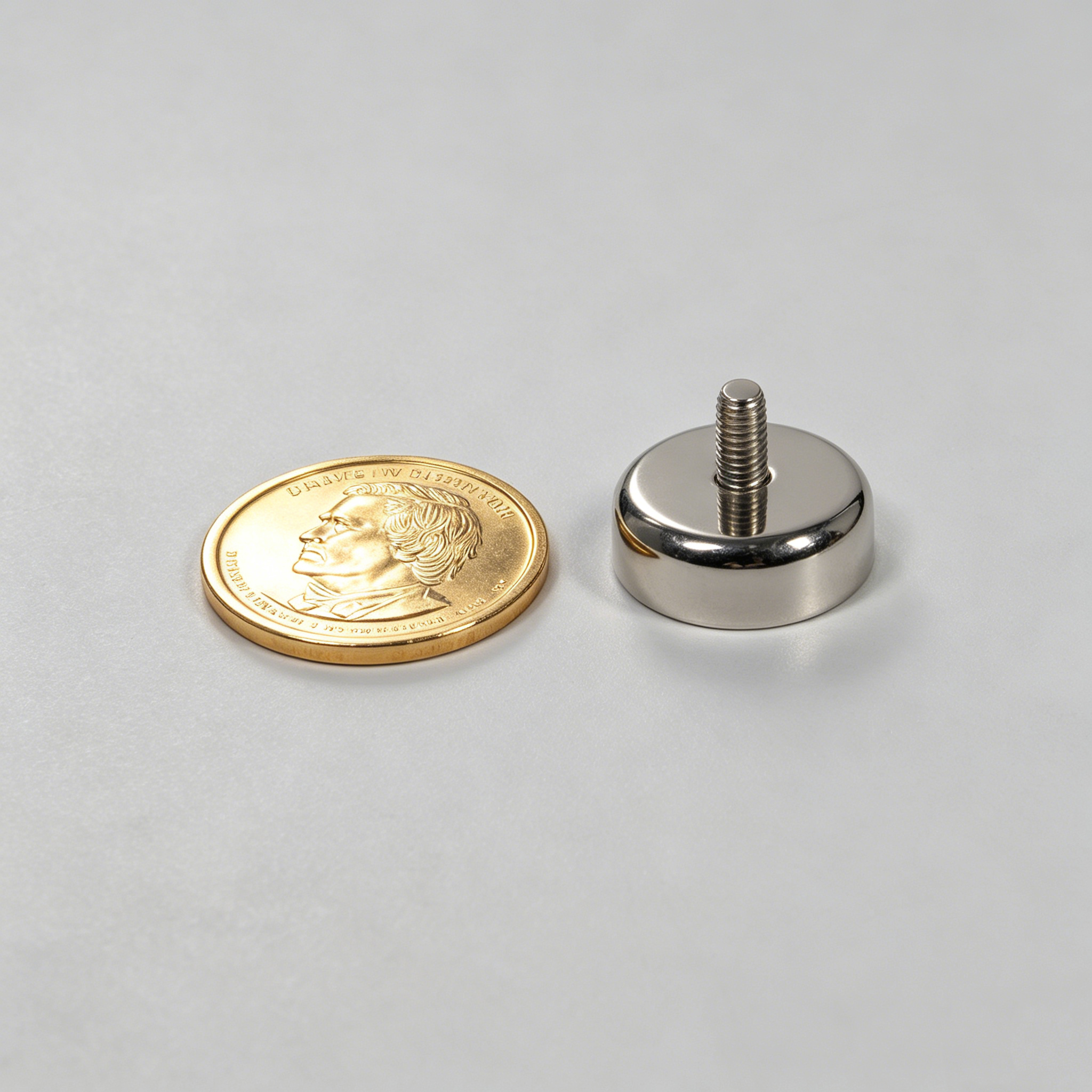

Male Thread NdFeB Pot Magnet 0.787“×0.236”

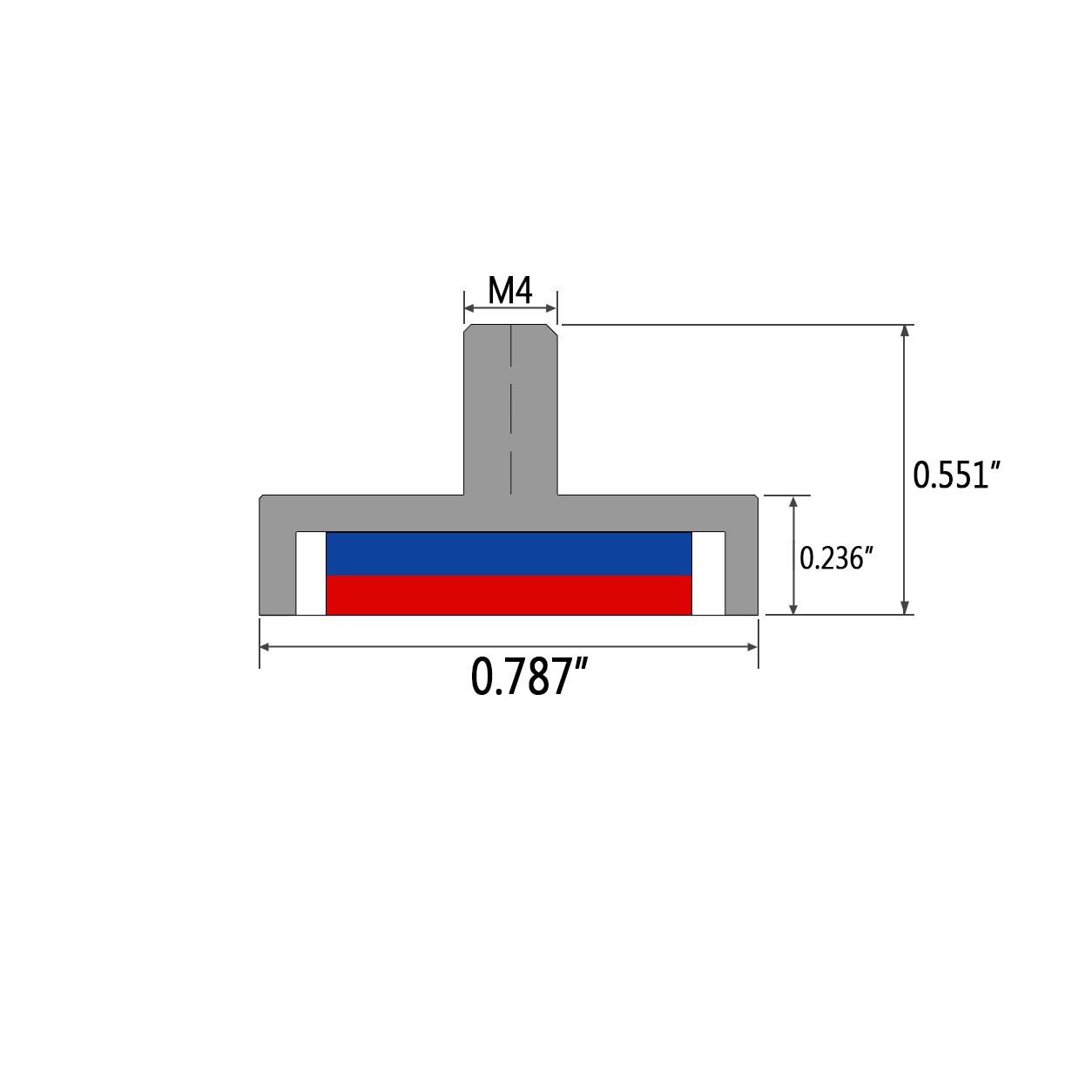

Technical Data

Material:NdFeB
Diameter:0.787 inch (20.0 mm)
Height:0.551 inch (14.0 mm)
Thickness:0.236 inch (6.0 mm)
Tolerance:+/- 0.02 inch (+/- 0.5 mm)
M:M4x8(0.157x0.315)

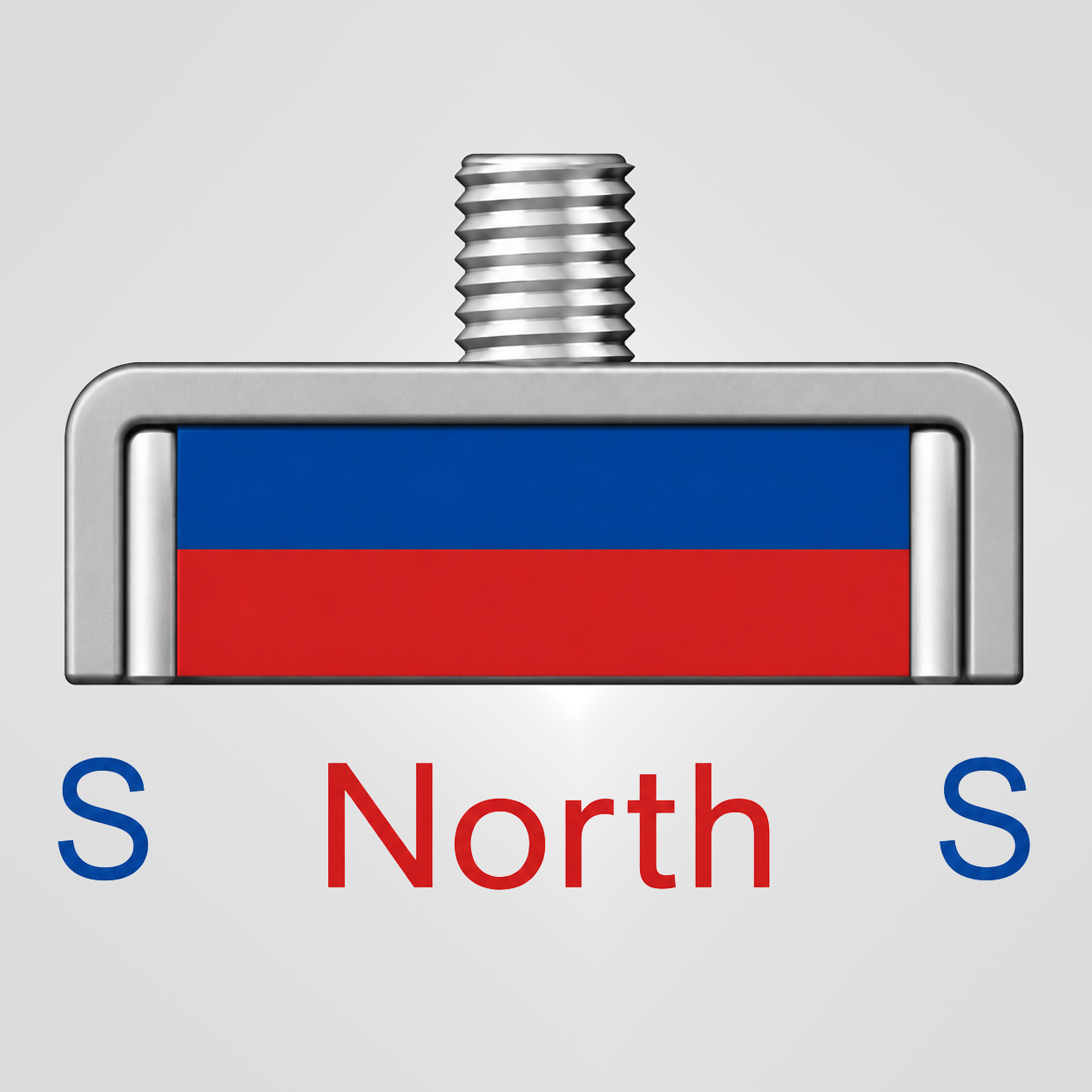

Magnetization:Axial
Coating:Ni
Weight:approx. 0.459 oz (13 g)
Pull Force:approx. 11.02 lb (5 kgf)
Surface Gauss:approx. 3400 Gs
Max Operating Temp:176 F / 80℃

$0.400

each

20000 in stock

Quantity Price
1 - 99 $0.400
100 - 200 $0.400
201 - 500 $0.300
501 - 1,000 $0.250
1,001+ $0.250

Male Thread NdFeB Pot Magnet 0.787“×0.236”

Technical Data

Material:NdFeB
Diameter:0.787 Inch
Height:0.551 Inch
Thickness:0.236 Inch
Tolerance:+/- 0.02 Inch
M:M4x8(0.157x0.315)
Magnetization:Axial
Plating:Ni
Weight:approx 13 g
Power:approx 5 Kg
Surface Gauss:approx 3400 Gs
Max Operating Temp:176 F / 80℃

$0.400

each

20000 in stock

Quantity Price
1 - 99 $0.400
100 - 200 $0.400
201 - 500 $0.300
501 - 1,000 $0.250
1,001+ $0.250
